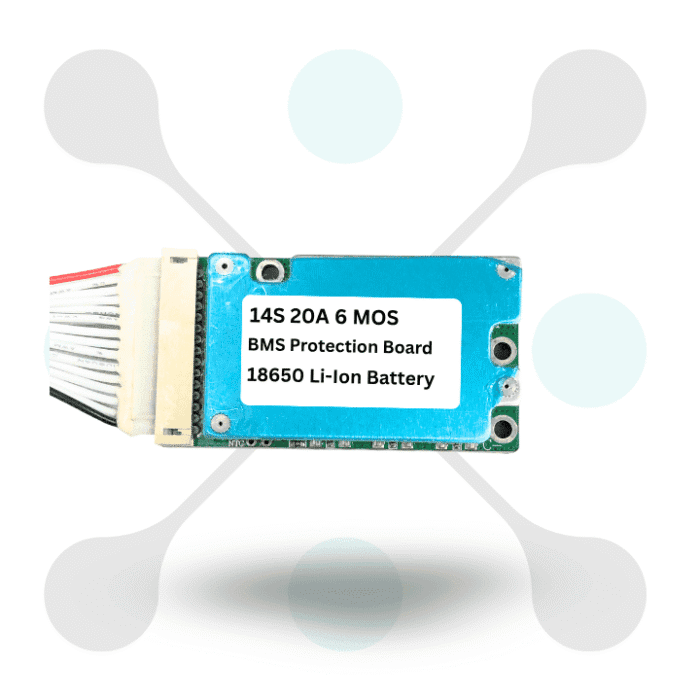

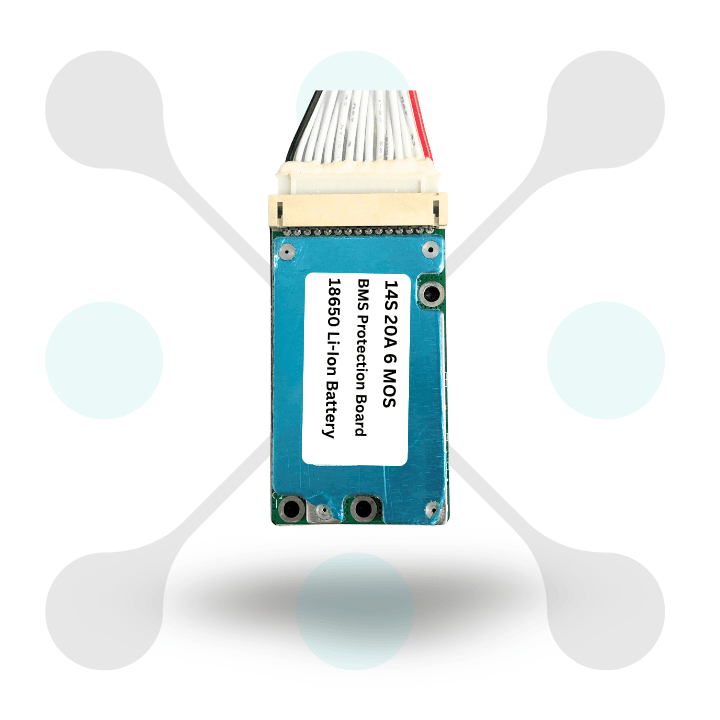

14S 20A 6 MOS BMS protection circuit module

A 14S 20A 6 MOS BMS (Battery Management System) protection circuit module is a critical component used in managing and safeguarding large lithium-ion or lithium-polymer battery packs. Here’s a detailed description of this module:

Description: The 14S 20A 6 MOS BMS protection circuit module is an advanced electronic control unit designed to oversee and protect a battery pack consisting of 14 series-connected cells. This module is commonly employed in various applications such as electric vehicles (EVs), solar energy storage systems, portable power banks, and more. It plays a crucial role in ensuring the safe and efficient operation of such battery packs.

Key Features:

1. 14S Configuration: This BMS module is compatible with battery packs that consist of 14 series-connected cells. It ensures balanced charging and discharging across all cells, preventing overcharging and overdischarging.
2. 20A Current Handling: Capable of handling a continuous discharge current of up to 20 amperes, making it suitable for a wide range of high-power applications.
3. 6 MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors): Equipped with six MOSFETs, this BMS can efficiently manage the flow of current, control charging and discharging, and protect against overcurrent and short-circuit conditions.
4. Battery Protection: Offers comprehensive battery protection, including overcharge protection, overdischarge protection, overcurrent protection, and short-circuit protection. This safeguards the battery pack from potential damage, thermal runaway, and fire hazards.
5. Balancing Function: Monitors the voltage of each individual cell within the battery pack and performs cell balancing to ensure that no cell is overcharged or overdischarged, thereby extending the overall battery lifespan.
6. Temperature Monitoring: Integrated temperature sensors help prevent overheating of the battery pack, further enhancing safety.
7. Communication Interface: Some models may include communication interfaces like UART or SMBus for real-time monitoring and data retrieval, allowing for advanced battery management.
8. Compact and Durable: The module is designed to be compact and rugged, making it suitable for both indoor and outdoor applications.
9. Easy Installation: It typically comes with connectors and mounting holes for easy integration into battery packs or systems.

Applications:

• Electric vehicles (e.g., e-bikes, electric scooters, electric cars)
• Solar energy storage systems
• Portable power banks
• Uninterruptible power supplies (UPS)
• Electric tools and appliances
• Robotics and drones
• Renewable energy systems

The 14S 20A 6 MOS BMS protection circuit module is an essential component for ensuring the safety, longevity, and efficient operation of large lithium-ion or lithium-polymer battery packs in a variety of applications. Its comprehensive protection features and current management capabilities make it an invaluable asset for any system reliant on high-capacity battery solutions.
