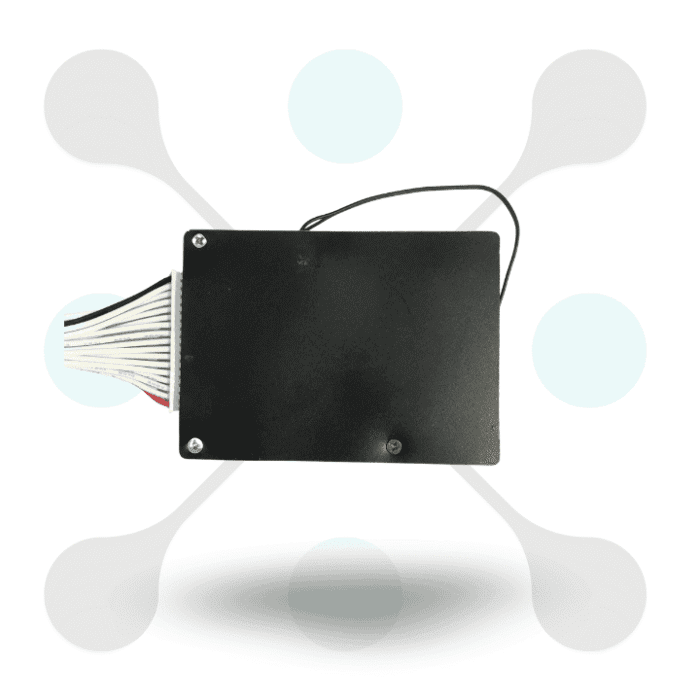

Overview of this 16S 20A 6MOS BMS Lithium 18650 Battery Charging Board
Introducing Roboway 16S 20A 6MOS BMS to manage 18650 lithium battery charging board at best price in India. This 16S 6MOS BMS module ensures superior protection and efficiency for high-capacity battery systems. It features advanced safeguards against overcharging, over-discharging, and short circuits, enhancing overall battery safety. Ideal for demanding applications, this 16S 6MOS BMS for 18650 battery charging board provides robust performance and reliability.
With a 20A current rating and 6 MOSFETs, the Roboway 18650 Battery Charging Board 16S BMS supports high-power energy systems. Its efficient thermal management and circuit design reduce energy loss and heat buildup. This board’s durable construction and advanced features make it perfect for both professional and DIY use. Upgrade your battery management with this reliable and high-capacity 16S 20A 6MOS BMS.
Features
- 20A High Current Capacity: This 16S 20A 6MOS bms support up to 20A continuous current, ideal for high power applications. Ensures stable and efficient energy delivery for demanding systems.
- 16S Configuration: It is specially design for 16 series lithium-ion cell & provide balanced charging and discharging. Maintains cell balance & enhance battery performance and lifespan.
- 6MOSFET Design: It also feature six MOSFETs for efficient current management and heat dissipation. This design improves performance and ensure stable operation under high loads.
- Comprehensive Protection Features: This 18650 Battery Charging Board 16s bms offer protection against overcharge, overdischarge, short-circuits, and overcurrent. Safeguards the battery pack from potential damage & ensure safety and reliability.
- Robust and Compact Construction: Its compact design fits into various battery packs and project easily. Durable construction ensure long lasting performance and reliability in diverse condition.
Specification
| Specification | Details |
|---|---|
| Type | 16S 20A 6MOS BMS Lithium 18650 Battery Charging Board |
| Supported Battery Type | 18650 Lithium-Ion |
| Number of Cells | 16 cells in series (16S configuration) |
| Nominal Voltage | 58.4V |
| Max Charging Voltage | 67.2V (4.2V per cell) |
| Overcharge Protection Voltage | 4.25V ± 0.05V per cell |
| Over-discharge Protection Voltage | 3.0V ± 0.05V per cell |
| Max Continuous Discharge Current | 20A |
| Charging Current | Up to 20A |
| Balance Current | 60mA – 80mA |
| Balance Function | Yes, active balancing |
| Internal Resistance | ≤ 15mΩ |
| MOSFET Type | 6 MOSFETs (for enhanced current handling) |
| Operating Temperature Range | -20°C to 60°C |
| Dimensions | 120mm x 80mm x 15mm |
| Weight | 70 grams |
| Port Type | split port for charging and discharging |
| Protection Features | Overcharge, over-discharge, short circuit, and overcurrent protection |
| Thermal Management | Built-in heat sinks or thermal pads |
| SKU | RW-626 |
