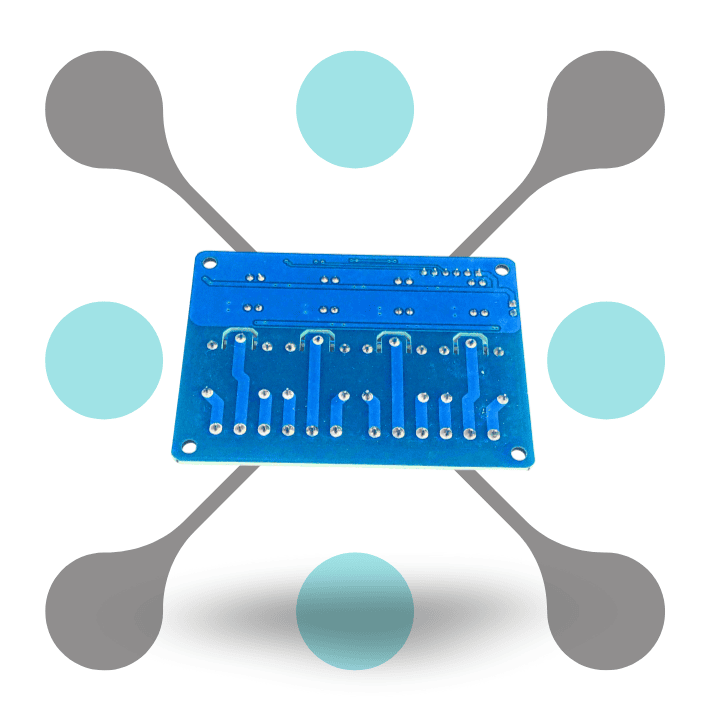

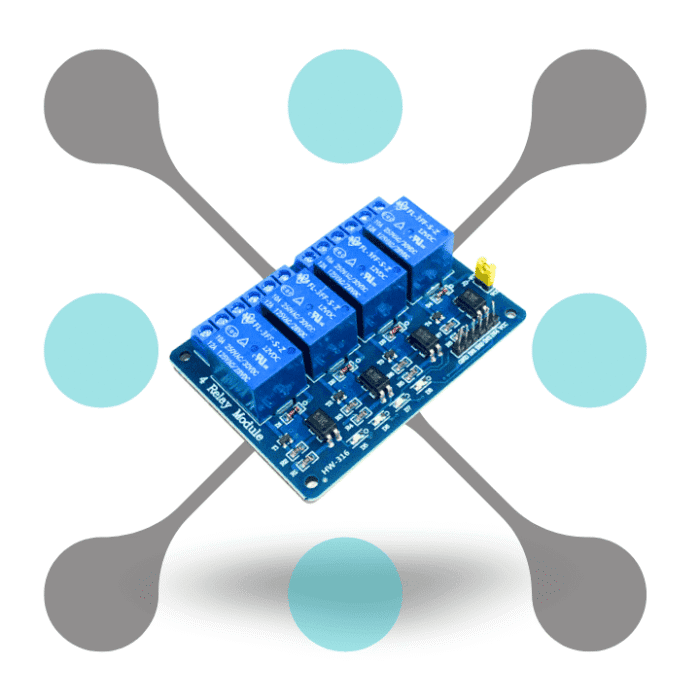

4 Channel 12V Optocoupler Based Relay Module

Description

1. 1. This Board can be used to Control Solenoids, Motors, Lamps, etc,

1. 1. Input Logic: 12v level from MUC

1. 1. Indication LEDs for relay output status.• 12V 4-Channel relay board controlled directly by micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) need 50-60mA driver current

1. 1. Input IN1, IN2, IN3, IN4 signal line active low, 4-channel relay output module, relay output contact is maximum 250A 10A

1. 1. Input Pin connected to Burg stick. High-current, AC250V 10A, DC30V 10A.
   2. RW-20

—

This is a 4-Channel Relay interface board that allows you to control various appliances, and other equipment’s with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Features:

1. 1. 4-Channel Relay interface board and each one needs 15-20mA Driver Current.

1. 1. Both controlled by 12V and 5V input Voltage.

1. 1. Equipped with high-current relay, AC250V 10A ; DC30V 10A.

1. 1. Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).

1. 1. Indication LED’s for Relay output status.

Package Includes:

1 x 12V 4 Channel Relay Module
