ESP-07S ESP8266 Serial WiFi Module

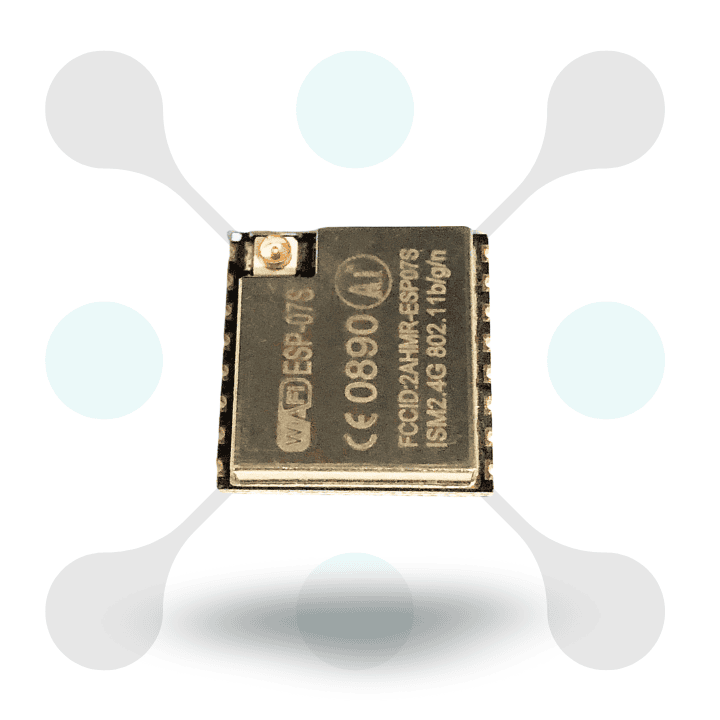

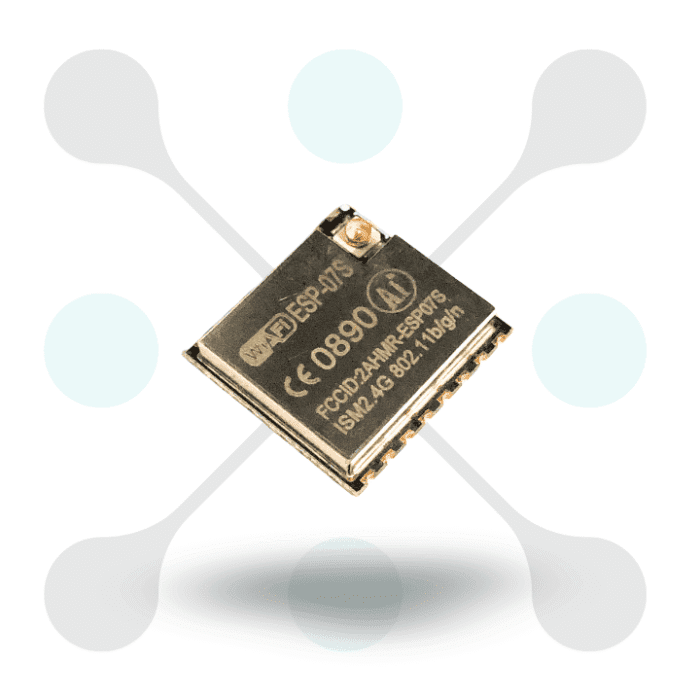

 ESP-07S ESP8266 Serial WiFi Module is a compact version of the ESP-12F and ESP-12E WiFi modules, without an onboard antenna! Compared to the ESP-12 modules, it is more compact(the bottom row of pads has been removed) and has a U.FL antenna connector.

The module supports standard IEEE802.11 b/g/n agreement, a complete TCP/IP protocol stack. Users can use the add modules to an existing device networking or build a separate network controller.

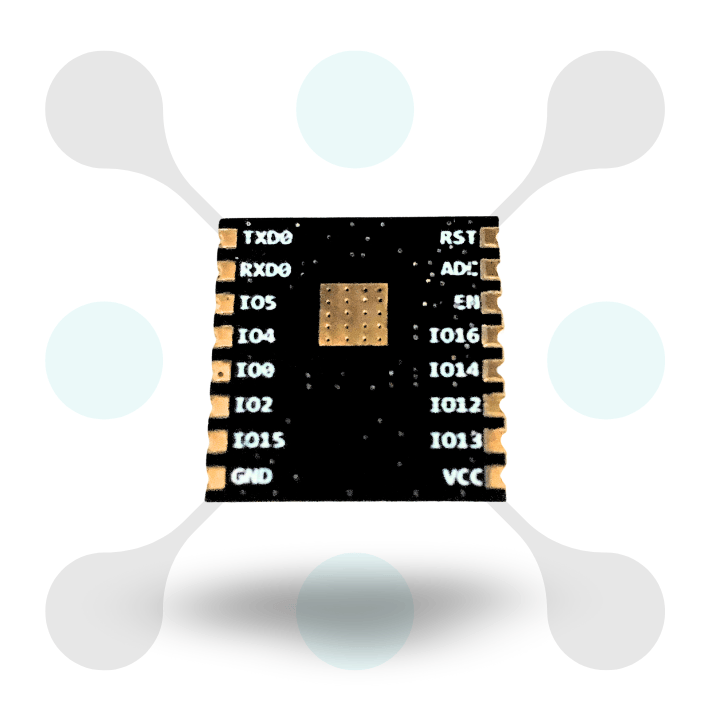

The removed pads(bottom row of ESP-12) contained mainly IO pins that could not be used by the user anyway, so it does not affect the usability of the board. The remaining pins are 100% pin-compatible with the ESP-12F and ESP-12E modules. You can solder this module onto a board designed for the ESP-12E or ESP-12F board.

ESP-07S ESP8266 Serial WiFi Module uses the very popular ESP8266 chip. The software can be developed using many different platforms, like Arduino for example. The pads on this module have an easy-to-hand solder 2.0mm pitch.

Features:

1. 802.11 b/g/n
2. Integrated low power 32-bit MCU
3. Integrated 10-bit ADC
4. Integrated TCP/IP protocol stack
5. Integrated TR switch, balun, LNA, power amplifier and matching network
6. Integrated PLL, regulators, and power management units
7. Supports antenna diversity
8. Wi-Fi 2.4 GHz, support WPA/WPA2
9. Support STA/AP/STA+AP operation modes
10. Support Smart Link Function for both Android and iOS devices
11. SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
12. Operating Current80 mA
13. Operating Voltage3.0-3.6 V
14. STBC, 11 MIMO, 21 MIMO
15. A-MPDU & A-MSDU aggregation and 0.4s guard interval
16. Deep sleep power <10uA, Power-down leakage current < 5uA
17. Wake up and transmit packets in < 2ms
18. Standby power consumption of < 1.0mW (DTIM3)
19. +20dBm output power in 802.11b mode
20. Operating temperature range -40C ~ 85C
21. MAKE ROBOSTALL
22. RW-82

Package includes:

1 x  ESP-07S ESP8266 Serial WiFi Module
