Description
Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter
Introduction
Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter has an output power 30W,4:1 wide voltage input range, efficiency up to 91%,conversional isolation voltage of 1500VDC,allowable operating temperature is -40℃to+85℃,under input – With voltage protection, output over-voltage, over-current, short-circuit protection function, bare metal meets CISPR32/EN55032CLASSA, widely used in medical, industrial control, electric power, instrumentation, communications, railway and other fields. RW-DC041
Features of Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter
● Wide input voltage range (4:1), output 30W
● Conversion efficiency 91%(Typ)
● Isolation voltage 1500Vdc
● Ultra low power consumption: 0.036W)
● Fast startup: 1 ms
● Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter has a working temperature range:- 40 °C~+85 °C
● Input undervoltage, output short circuit, overcurrent,overvoltage protection
● Metal case, low output ripple
● International standard pin, PCB board in-line
● Conversion efficiency 91%(Typ)
● Isolation voltage 1500Vdc
● Ultra low power consumption: 0.036W)
● Fast startup: 1 ms
● Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter has a working temperature range:- 40 °C~+85 °C
● Input undervoltage, output short circuit, overcurrent,overvoltage protection
● Metal case, low output ripple
● International standard pin, PCB board in-line
Specifications of Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter
|
brand name
|
hi-link
|
|
model
|
Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter
|
|
power generation
|
30W
|
|
input voltage
|
18-75V
|
|
output voltage
|
5V
|
|
output current
|
6000mA
|
|
Dimensions
|
50.8*25.4*12mm
|

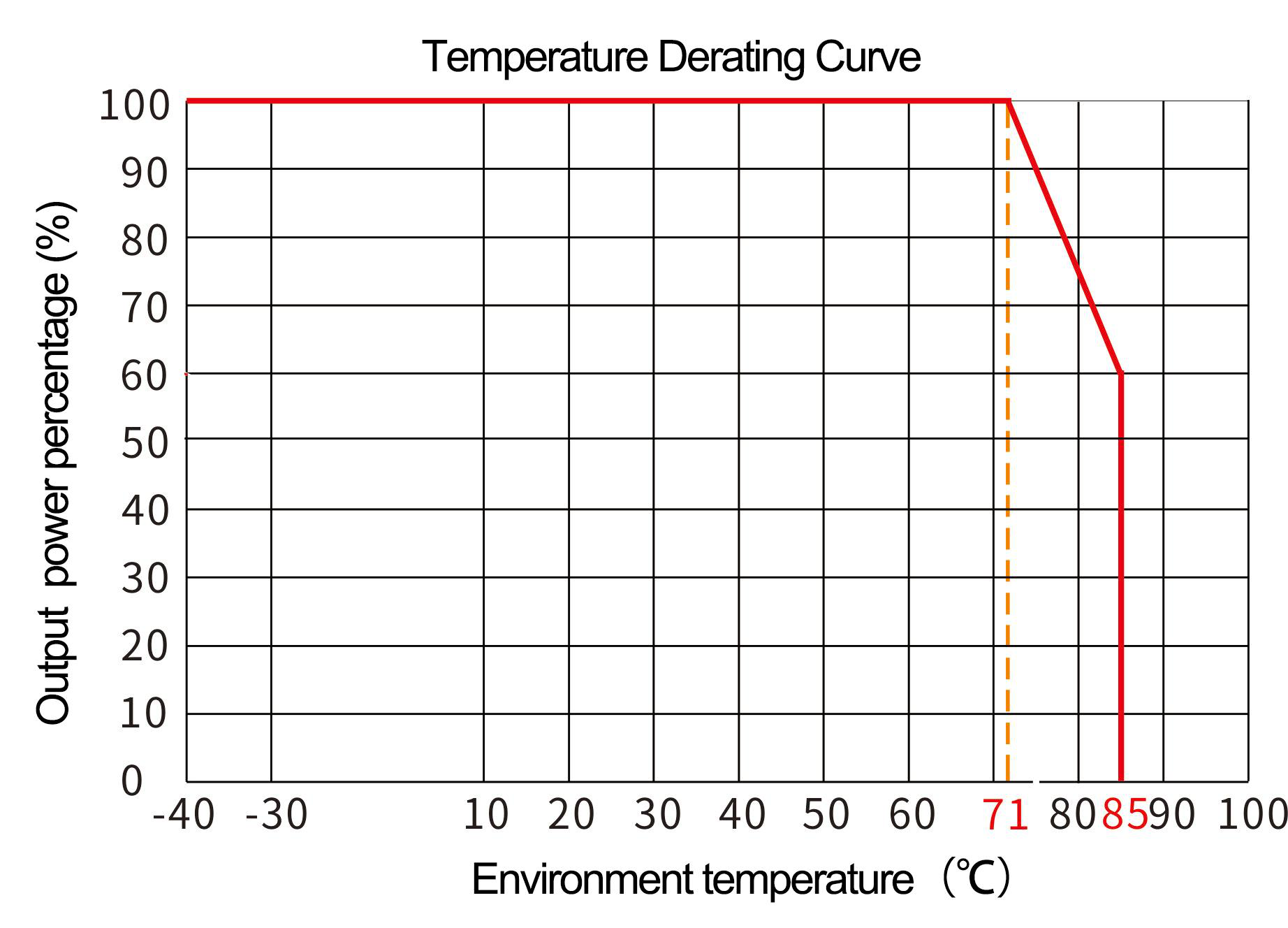

Derating curve of Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter

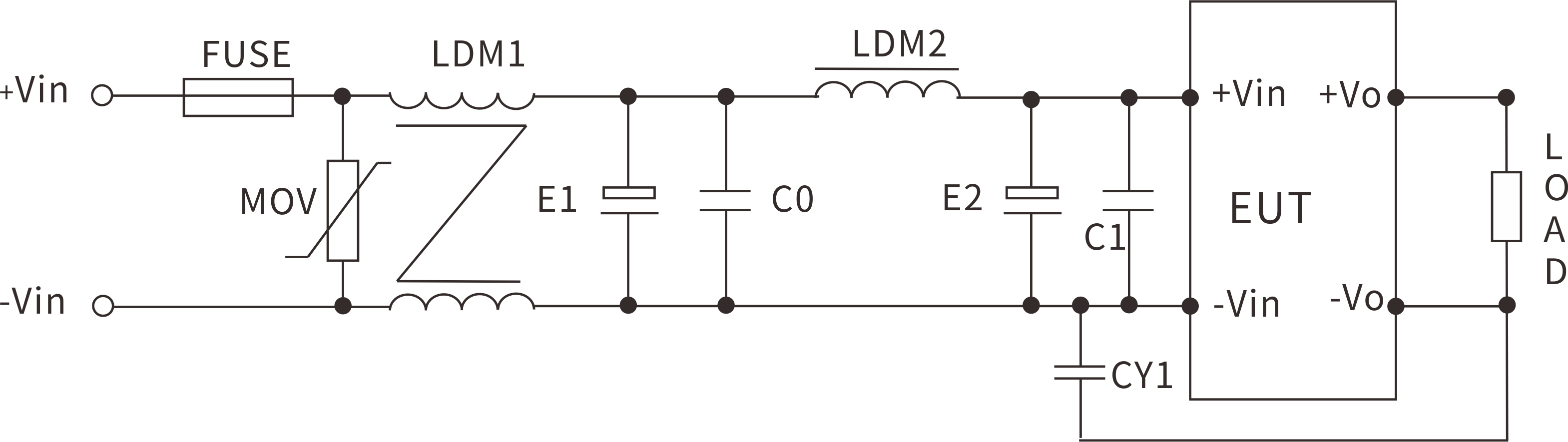

Typical application circuit
Package Contains :
1 x Hlk-URB4805LD-30WR3 48v to 5v 30w DC DC Power Module Converter
