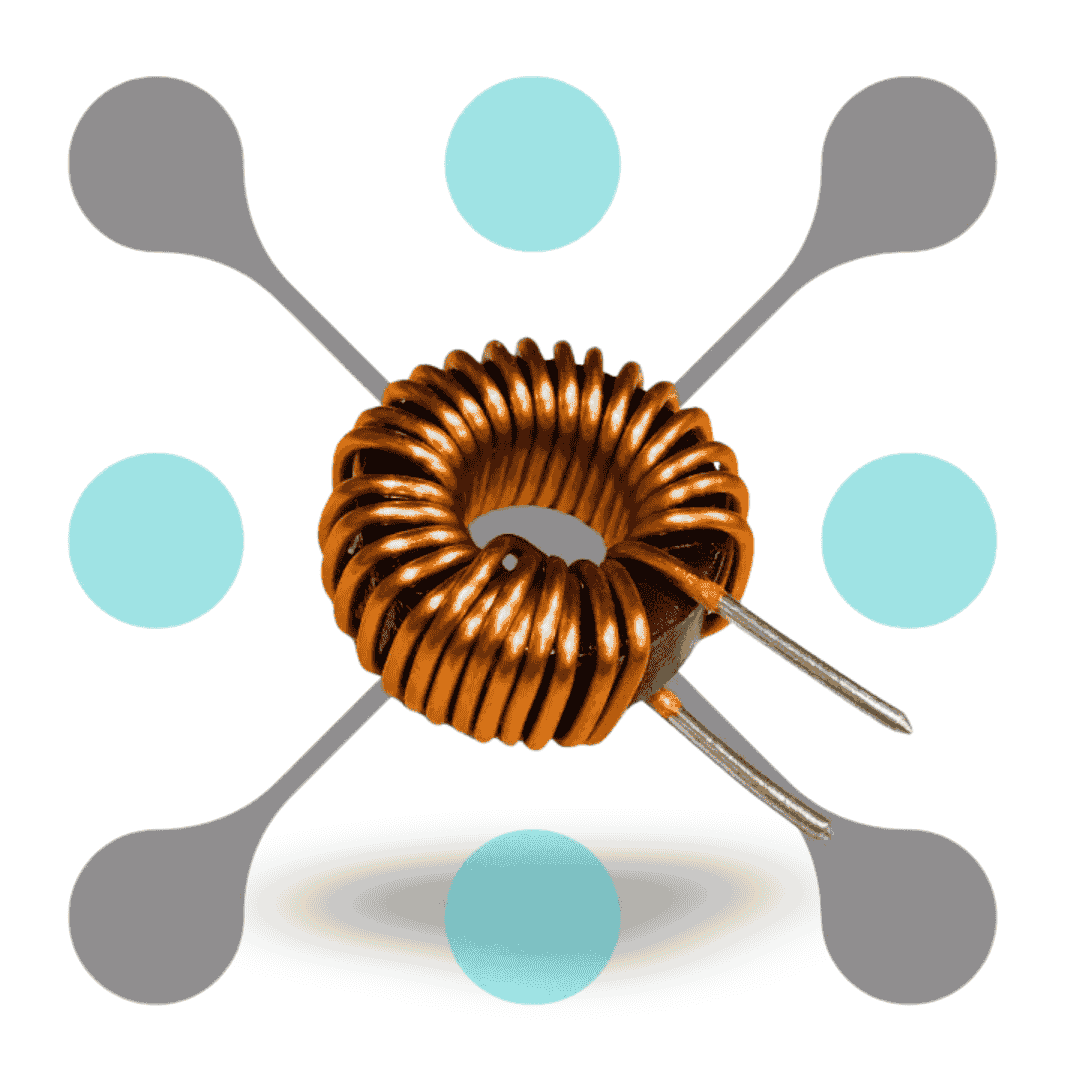

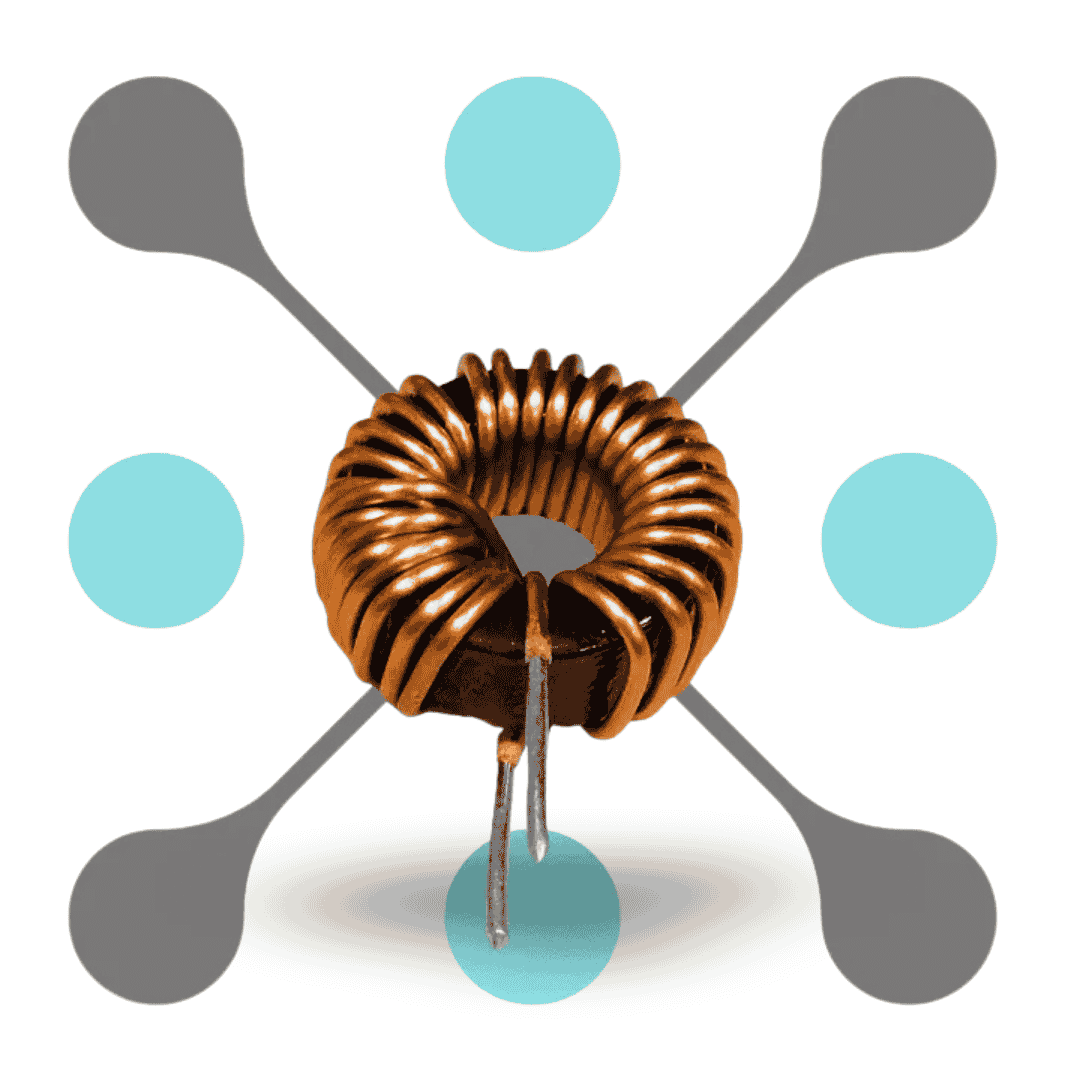

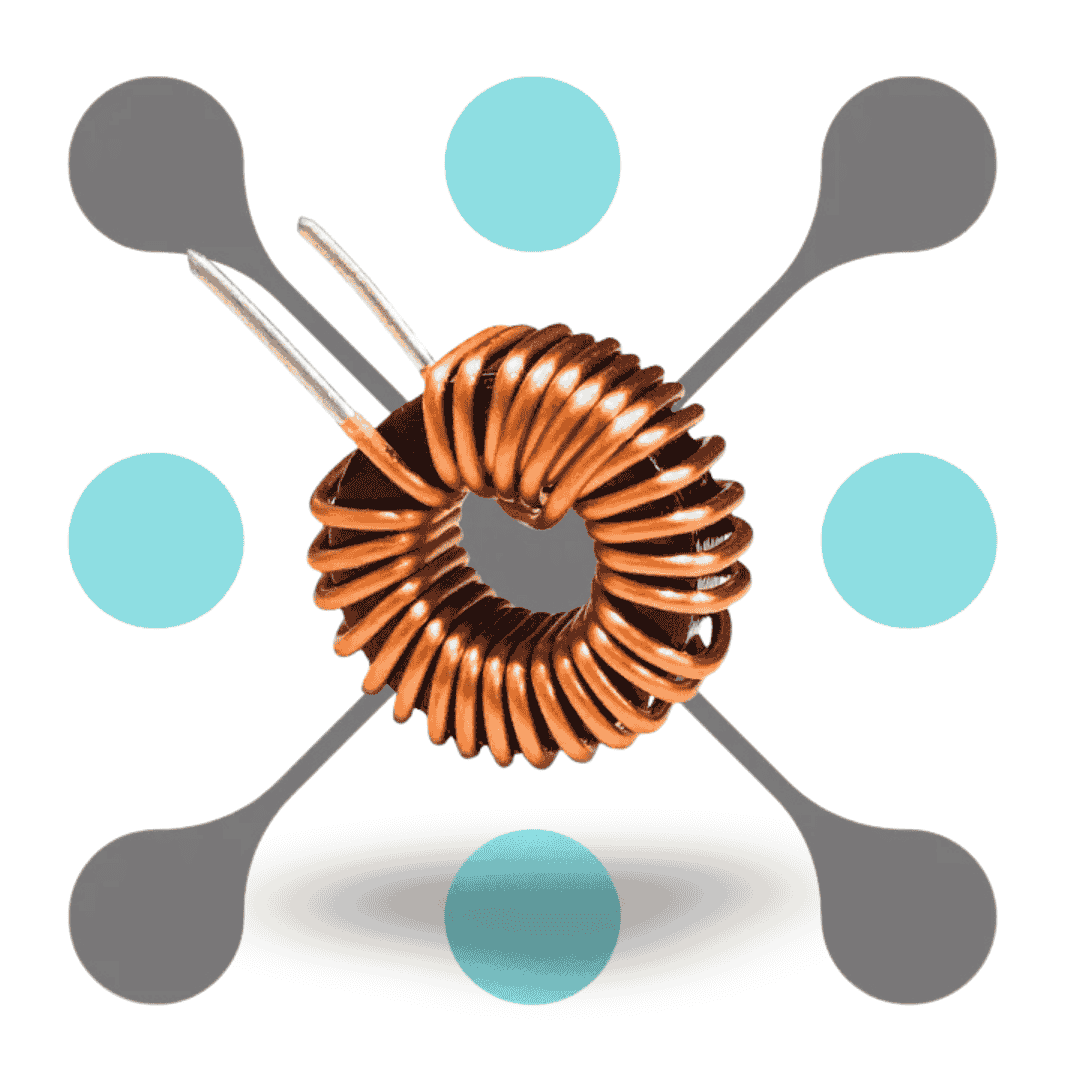

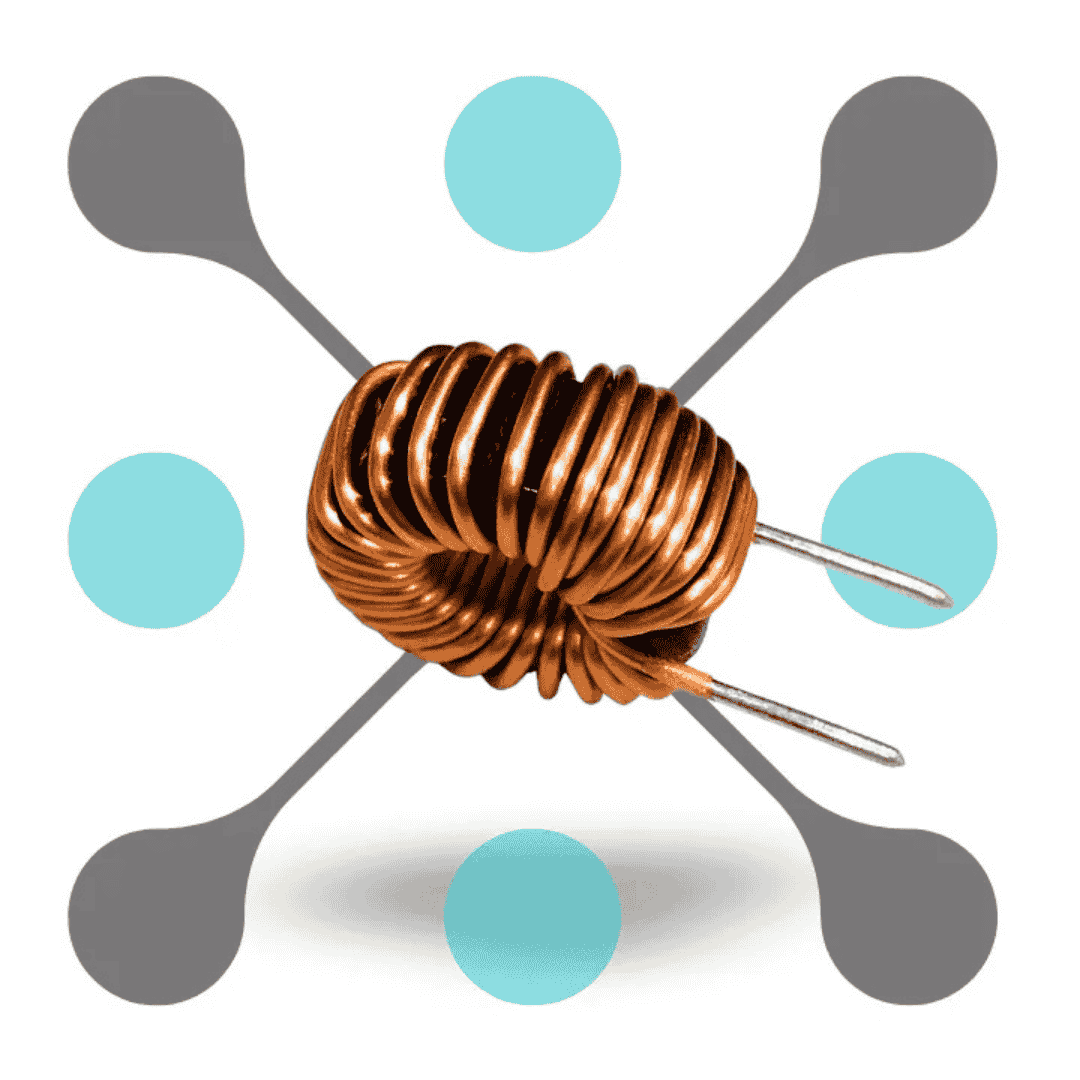

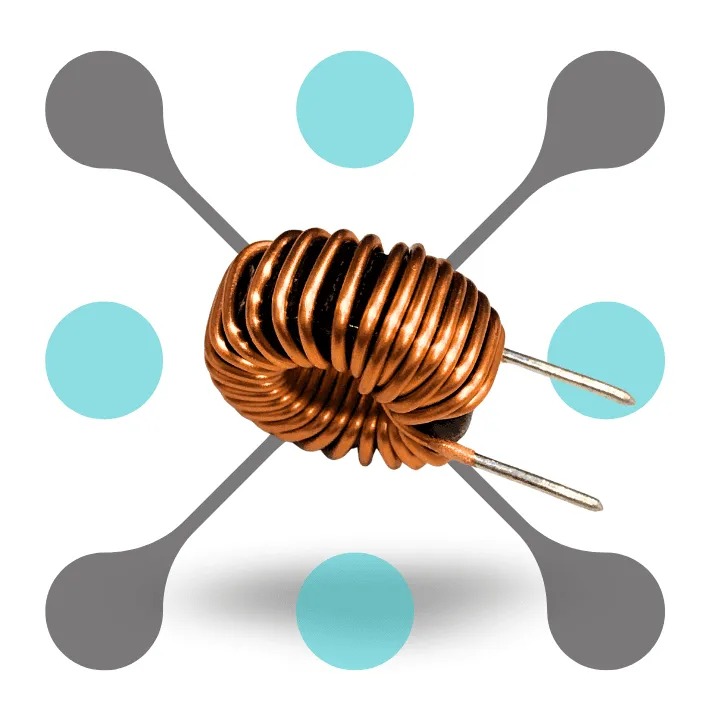

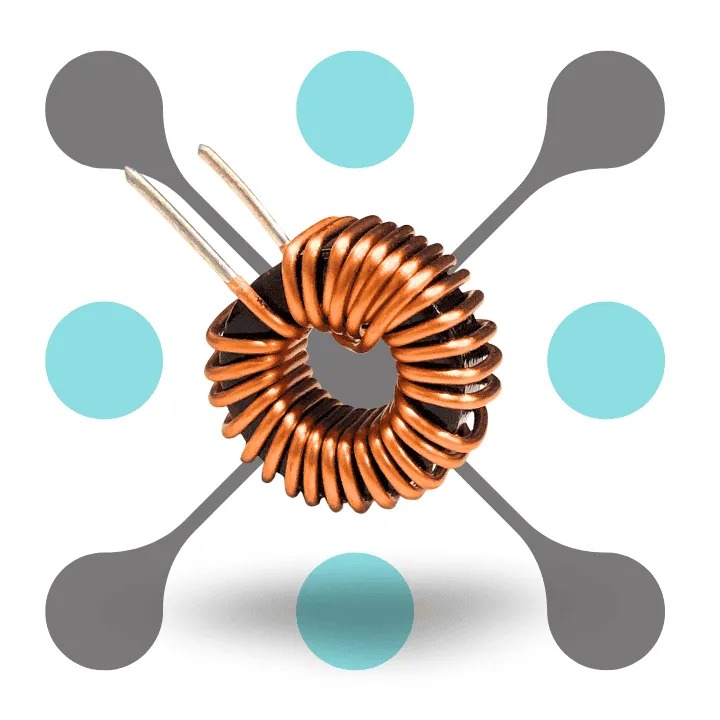

12X6 mm 10μH 4A Magnetic Inductor Coil Toroidal 0.5mm Wire Diameter

Overview of this 12X6 mm 10μH 4A Magnetic Inductor Coil Toroidal 0.5mm Wire Diameter

Introducing Roboway 12X6 mm 10μH 4A magnetic inductor coil toroidal 0.5mm wire diameter at the best price in India with Roboway. This is inductor coil with a value of 10μH and a current rating of 4A. It is made with 0.5mm thick wire and has a compact, round shape that makes it easy to use in different electronic circuits. This coil helps in controlling the flow of electric current and stores energy in magnetic form, which is useful for many devices.

It is strong, reliable, and small in size, so it fits easily into electronics without taking much space. You can use it in power supplies, filters, and other circuits where smooth current and stable performance are needed. This coil is simple to use and helps make your electronic projects work better.

Specification

Type  Toroidal Magnetic Inductor Coil

Inductance: 10 μH

Rated Current: 4 A

Wire Diameter: 0.5 mm

Core Material: Ferrite

Coil Shape: Toroidal

Frequency Range: Up to 1 MHz (approx.)

DC Resistance: Low (depends on wire length)

Temperature Range: -40°C to +125°C

Application: Power supply, filtering, and energy storage

Dimension: 12 x 6 mm

Weight: ~2 g

SKU: RW-564
