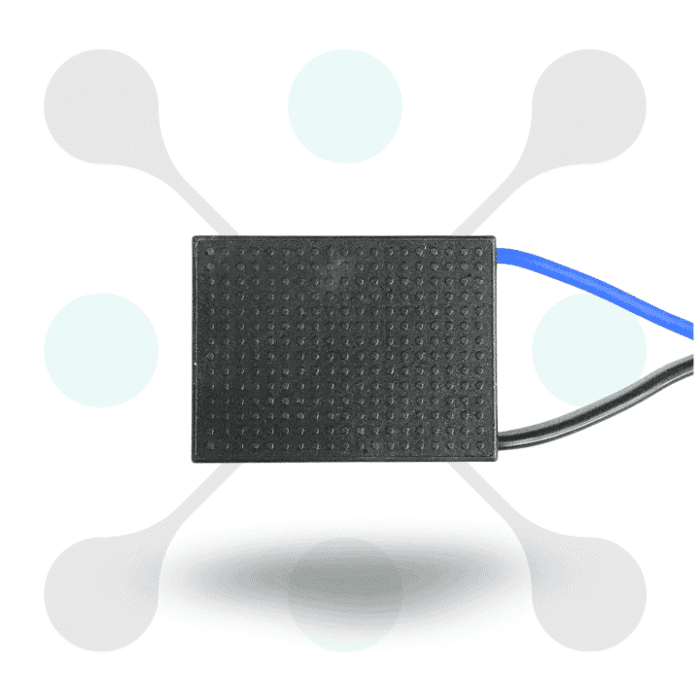

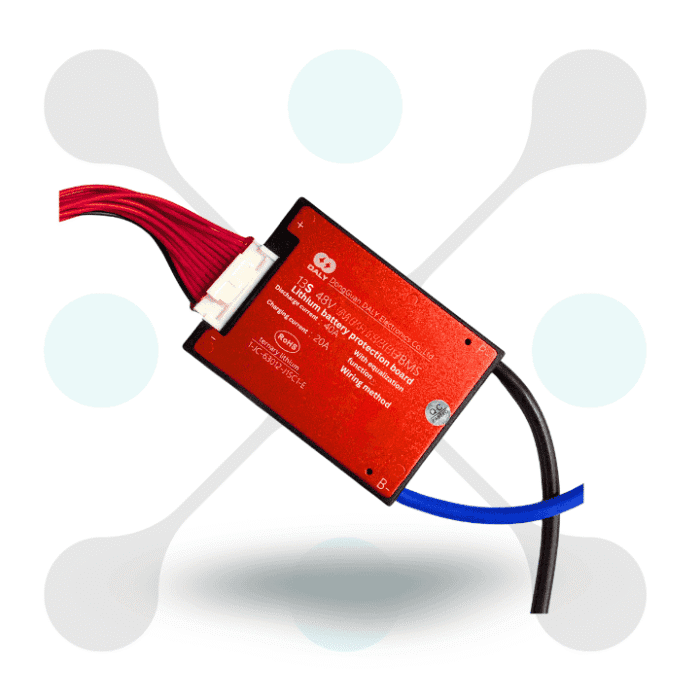

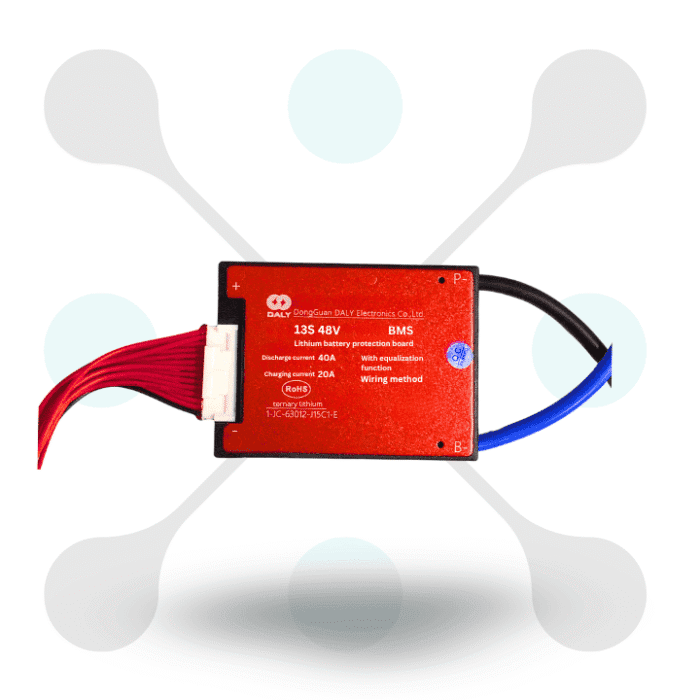

Daly 13S 40A 48V Bms Waterproof Protection Circuit Module

SKU: RW-822
Battery Configuration 13 Series (13S)
Nominal Voltage 48V (13 x 3.7V)
Maximum Continuous Current 40A
Peak Current 80A (for a short duration)
Overcurrent Protection Yes (activated when current exceeds 40A)

1,710.00 ( Excluding 18% GST )

In stock

6 People watching this product now!

Overview of this Daly 13S 40A 48V Bms

Introducing Roboway Daly 13S 40A 48V BMS waterproof module at best price in India. This Daly 13S 40A waterproof BMS provide reliable safety feature for 13 series lithium battery pack. With its advanced protection circuit, the Daly 13S BMS provide safety against overcharging, over discharging, and short circuit. Ideal for demanding application, this 48V BMS ensure efficient and stable battery performance.

This Daly 13S 30A BMS is renowned for its durability, but the 40A version offers even greater capacity. Its waterproof design ensure high performance in harsh environment & make it perfect for outdoor use. This 13S 40A BMS module is east to install and maintain & enhance your battery pack safety and lifespan.

Features

  • 13S Battery Configuration: This Daly BMS support up to 13 series connected lithium battery cell. It ensure balanced charging and discharging across all cell.
  • 40A Maximum Current Handling: It is also capable to handle up to 40A of continuous current, this BMS is robust. It provide reliable power delivery while protecting against overcurrent condition.
  • 48V System Compatibility: It is specially designed for 48V lithium ion battery system, it ensure stable and efficient performance. Ideal for electric vehicles and renewable energy storage.
  • Waterproof Protection: This daly 13S 40A waterproof bms feature a waterproof design & protecte it from moisture and harsh condition. It is also a perfect choice for both indoor and outdoor application.
  • Advanced Safety Protections: It also include safety against overcharging, over discharging, short circuit, and overheating. These protection enhance battery safety and extend the lifespan of your system.

Specification

Specification Details
Battery Configuration 13 Series (13S)
Nominal Voltage 48V (13 x 3.7V)
Maximum Continuous Current 40A
Peak Current 80A (for a short duration)
Overcurrent Protection Yes (activated when current exceeds 40A)
Short Circuit Protection Yes
Overcharge Protection Yes (prevents overcharging beyond 4.2V per cell)
Overdischarge Protection Yes (prevents discharge below 2.5V per cell)
Balance Function Yes (ensures even charge distribution among cells)
Temperature Protection Yes (over-temperature protection enabled)
Waterproof Rating IP67 (suitable for wet conditions)
Cell Type Compatibility Li-ion (18650)
Charging Voltage Range 48V nominal (max 54.6V for full charge)
Discharge Voltage Range 39V nominal (min 31.5V)
PCB Dimensions 90mm x 60mm
SKU RW-822
