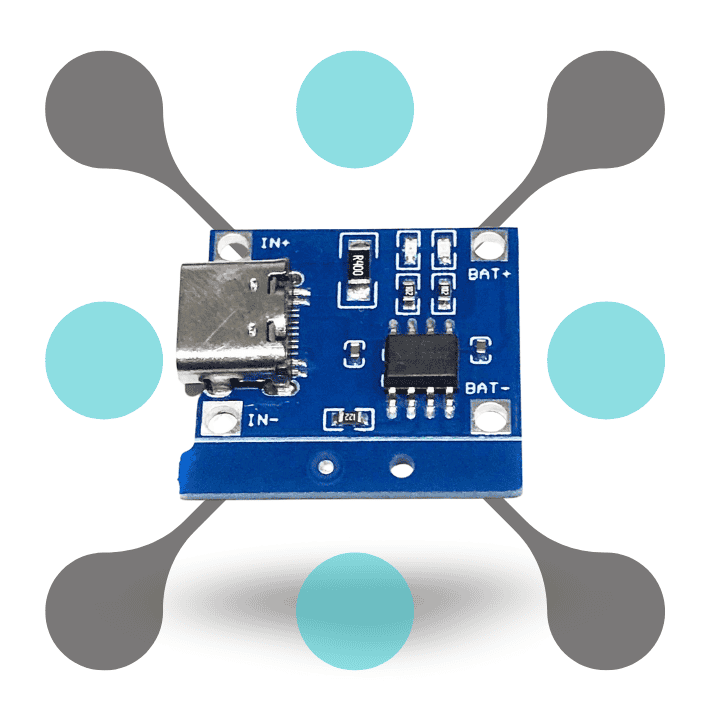

Overview of this Type-c USB TP4056 charging board for 18650 Lithium Battery Charger Module
Introducing Roboway type-C USB TP4056 charging board with protection for 18650 Lithium battery. It use provide a stable and safe way to charge your battery using a Type-C USB connection. This charger board feature advanced charging technology to ensure smooth charging performance and battery protection. Its small size makes it easy to use in various project and device.
The Type-C USB TP4056 charger module offers a charging current of up to 1A for fast and efficient battery charging. This module also include built in protection feature such as overcharge, over-discharge, and short-circuit protection. And its inbuilt protection also ensure safe charging for your 18650 battery. Its clear LED indicators provide visual feedback on charging status & make it user friendly and easy to use.
The 18650 Lithium Battery charging board is ideal for a wide range of device including DIY electronic project, portable devices, and power banks. Its versatile with Type-C USB power sources also make it perfect charger module for 18650 lithium battery.
Features
- Charging and protection for 18650 batteries: The TP4056 module is designed to safely charge 18650 lithium battery. It also provide built in overcharge and short circuit protection for battery safety.
- Type-C USB input: The module features a modern Type-C USB input for charging. It also ensures compatibility with a variety of power sources and chargers.
- LED indicators: LED lights display the charging status, turning red when charging and green when fully charged. And it help to provide clear visual feedback for the charging process.
- 1A charging current: The module supports a charging current of up to 1A & allow for smooth battery charging. This speed is ideal for quickly recharging 18650 battery.
- Compact design: Its small size allows for easy fit into project and device. This is especially useful for less spacec device and portable setups.
- Low self discharge: The module ensures minimal self discharge, maintaining battery health and long life. This function also help to preserve the capacity of your 18650 battery over time.
- Easy connection and use: The module simple design make it easy to connect and use. This user friendly setup is accessible for both beginners and experienced developers.
Specification
| Specification | Details |
|---|---|
| Input Voltage | 4.5V – 5.5V DC |
| Charging Current | 1A |
| Charging Method | Constant current, constant voltage |
| Charging Indicator | LED indicator |
| Charging Accuracy | ±1% |
| Charging Efficiency | Up to 92% |
| Protection | Overcharge, over-discharge, overcurrent, short-circuit protection |
| Battery Type | Lithium-ion (18650) |
| Input Connector | Type-C USB port |
| Charging Connector | 18650 battery holder |
| PCB Size | Varies depending on design |
| Application | Charging 18650 lithium batteries with Type-C USB input |
| SKU | RW-158 |
