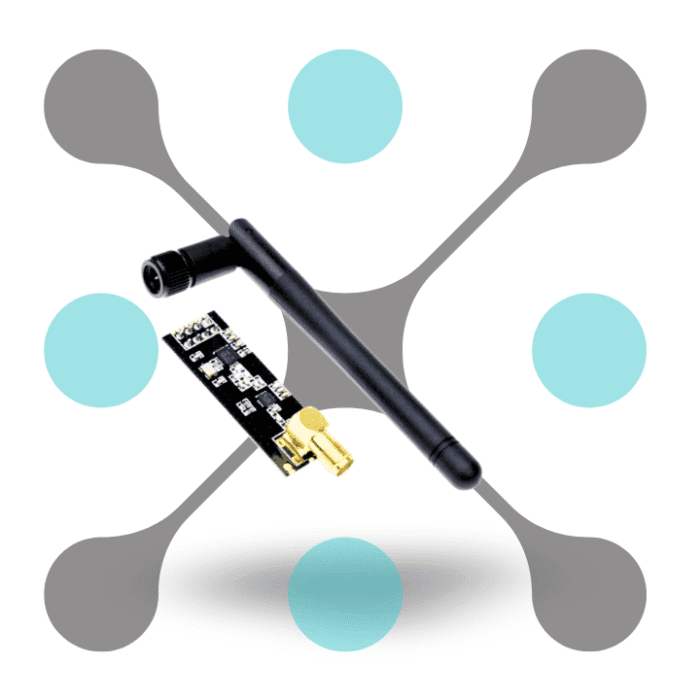

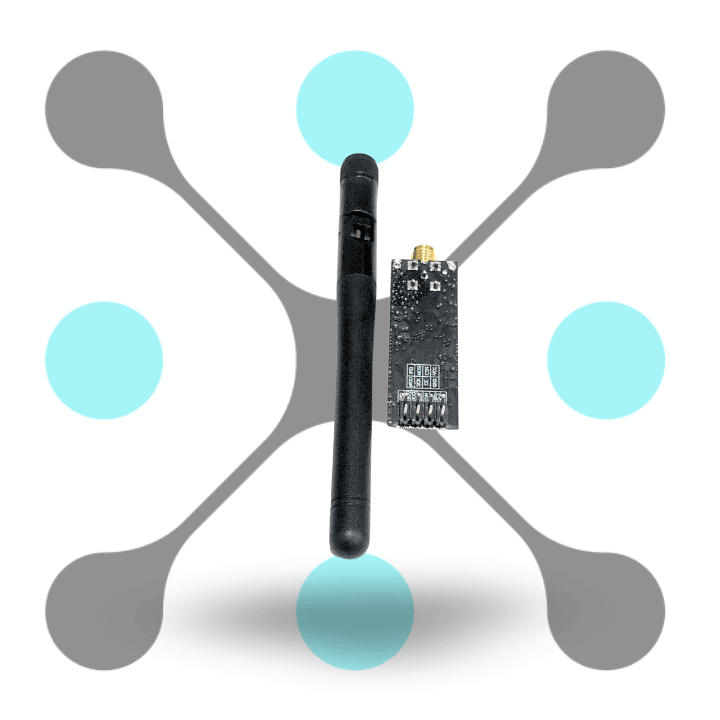

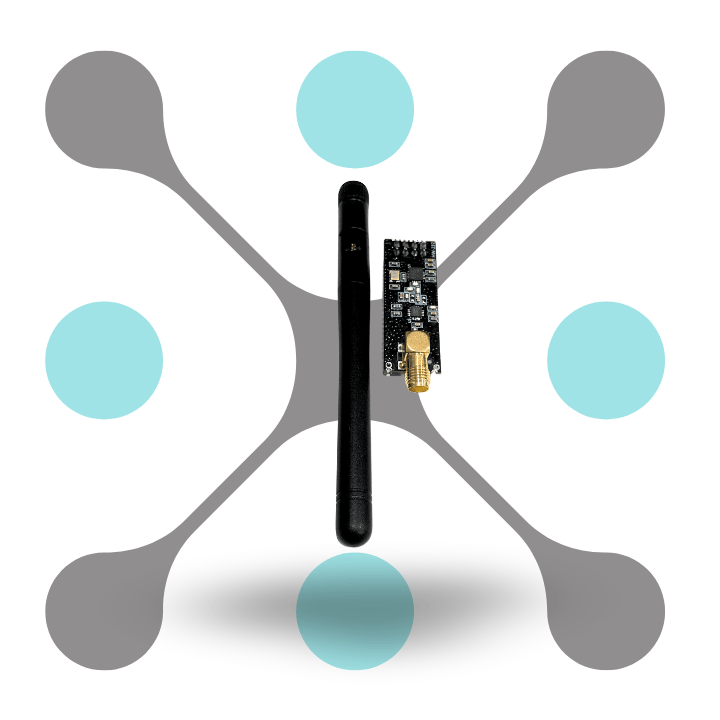

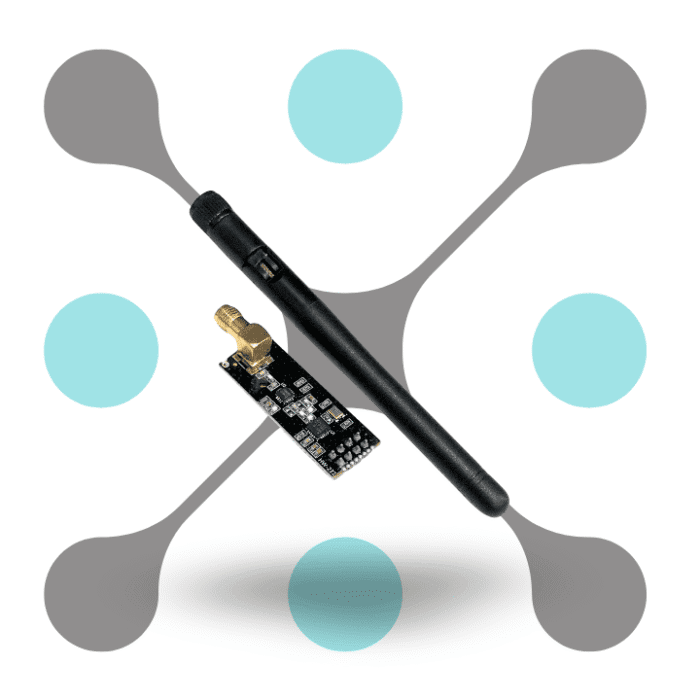

Overview of this 2.4GHz NRF24L01+PA+LNA SMA Transceiver Antenna
Introducing Roboway 2.4GHz NRF24L01+PA+LNA SMA wireless transceiver antenna at best price to enhance wireless communication capability. This antenna is specifically designed for the NRF24L01 transceiver & boost its signal strength and range. It also feature integrated power amplifiers (PA) and low noise amplifiers (LNA) for improved performance in various environments. Its SMA connector also ensure compatibility with a wide range of device and configuration.
With its focus on 2.4GHz NRF24L01 transceiver antenna technology to offer smooth connectivity. This PA and LNA component enhance signal integrity and reduce interference, ideal for complex wireless setup. Its compact design allow for easy fit into project who need robust wireless communication. This antenna provide enhance coverage and stability & make it perfect for IoT application and remote control system.
This NRF24L01 Antenna Transceiver is user friendly & perfect for hobbyists and professionals also. Its plug and play nature simplify installation and setup processes. The robust SMA connection ensure secure attachment to devices, maintaining signal integrity.
Features
- Enhanced Communication Range: This 2.4GHz NRF24L01+PA+LNA SMA Transceiver Antenna extend communication range significantly from compared to standard versions. It support distances up to 1000 meters in open space environments.
- Amplified Power Output: With PA (Power Amplifier) and LNA (Low Noise Amplifier), 2.4GHz transceiver antenna boost signal strength. This ensure smooth data transmission over longer distance and in noisy condition.
- 2.4GHz Frequency Band: It operate in the widely used 2.4GHz frequency band for compatibility with various device and protocols.
- Low Power Consumption: Despite its enhanced capabilities, it also maintains efficient power usage for prolonged operation.
- SMA Antenna Connector: This 2.4GHz NRF24L01+PA+LNA SMA Transceiver Antenna feature an SMA antenna connector for easy integration and flexibility in antenna choice.
Specification
| Specification | Details |
|---|---|
| Frequency Range | 2.400-2.4835 GHz |
| Modulation | GFSK |
| Output Power | 20 dBm (adjustable from 0 dBm to 20 dBm) |
| Receiver Sensitivity | -92 dBm |
| Data Rate | 250 kbps |
| Operating Voltage | 1.9V-3.6V |
| Power Consumption | Transmit: 115mA (at 20 dBm), Receive: 45mA, Sleep: 4.2µA |
| Antenna | SMA connector |
| Range | Up to 1100 meters (open space) |
| Interface | SPI |
| Operating Temperature | -40°C to 85°C |
| Dimensions | 45mm x 15mm x 2.5mm |
| Data Buffer | 32-byte transmit/receive FIFO |
| Built-in Features | PA (Power Amplifier), LNA (Low Noise Amplifier) |
| Package Type | SMD (Surface-Mounted Device) |
| Compatibility | Compatible with 3.3V and 5V logic levels |
| SKU | RW-87 |
