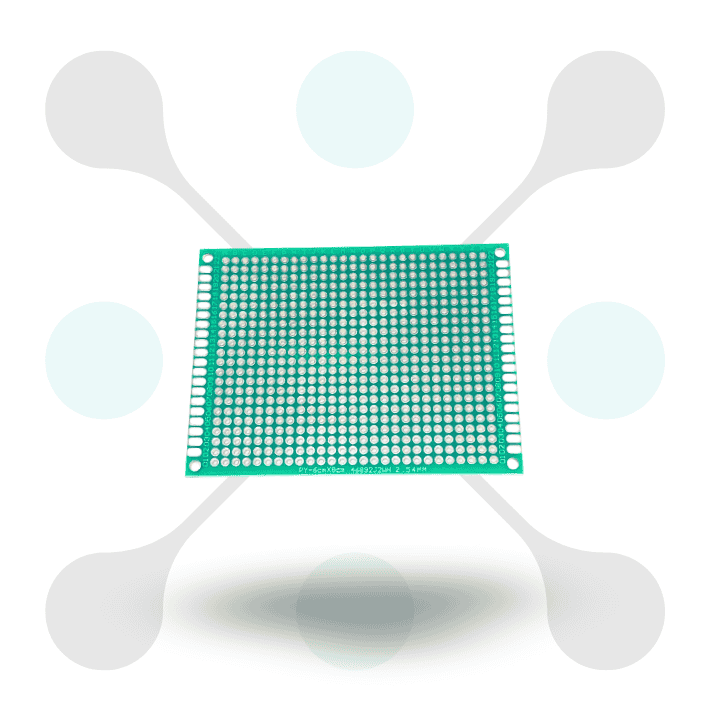

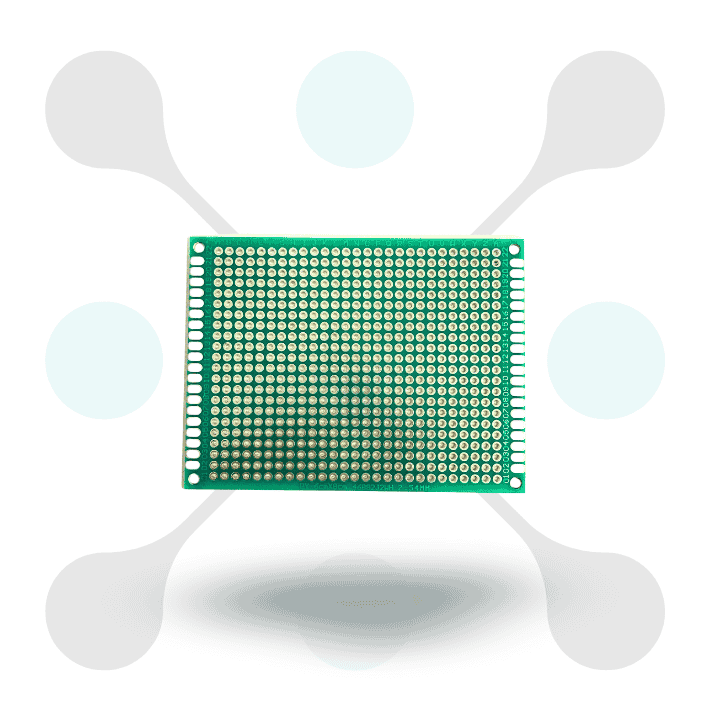

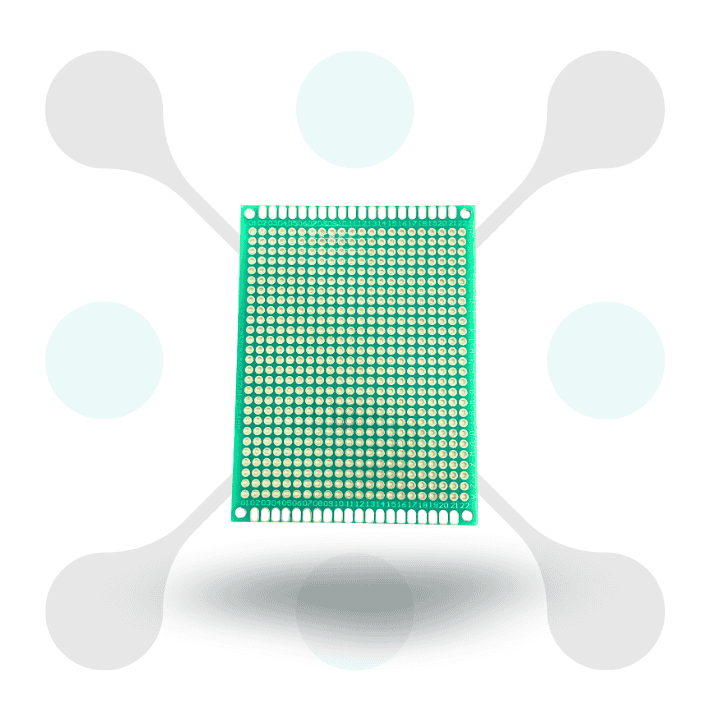

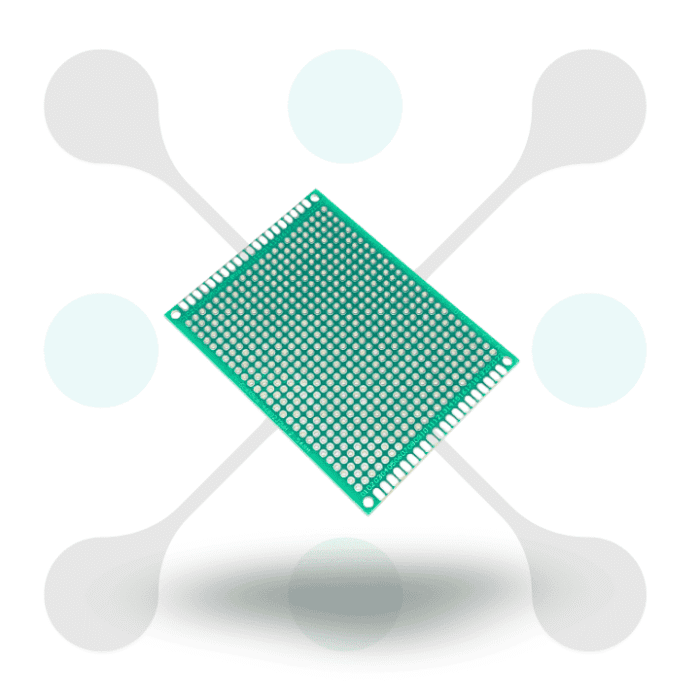

Overview of this 6×8 cm double side pcb board for prototyping

This 6×8 cm Double Side PCB Board at the best price in India with Roboway. This board is designed for experimenting and testing new electronic circuits before making the final PCB and making it very useful for students, hobbyists, and engineers. It is comes with  standard hole spacing  and the holes are placed in a 2.54 mm (0.1 inch) grid, which matches most electronic components and connectors for making it simple to place ICs, resistors, capacitors, and headers.

This PCB board made from strong fiberglass (FR-4 epoxy material), the board is sturdy, heat-resistant, and long-lasting, ensuring stable performance for your projects. The medium size makes it suitable for small to medium projects, fitting easily in enclosures or breadboard-sized experiments. Each hole is surrounded by a copper pad, which makes soldering easy and improves conductivity and ensuring secure and reliable connections.

Features

Board Size: 6×8 cm – The board is medium-sized and giving you enough space to create circuits with multiple components without being too bulky.

Double-Sided Design – Both sides of the board can be used for soldering, which makes it easier to connect complex circuits and reduces the need for extra wires.

Standard Hole Pitch (2.54 mm) – The holes are placed at regular intervals of 2.54 mm, which is the standard spacing for most electronic components, so almost any component will fit perfectly.

Durable FR-4 Material –It is made from strong FR-4 glass epoxy, the board is heat-resistant and does not break easily while soldering, ensuring long-lasting use.

Copper Plated Holes – The holes are plated with copper, which helps in better electrical connection and also makes soldering smoother.

Specification

Board Size: 6cm x 8cm

Type: Double-sided universal PCB

Hole Pitch: Standard 2.54mm (0.1 inch)

Hole Diameter: Approx. 1mm

Material: High-quality FR4

Copper Layer: Both sides (Double-sided)

Thickness: Approx. 1.6mm

Pad Plating: Tinned for easy soldering

Grid Layout: Pre-drilled with standard grid

Usage: DIY circuits, prototyping, electronic projects

Compatibility: Compatible with through-hole components

Weight : 14 gm

SKU: RW-378
