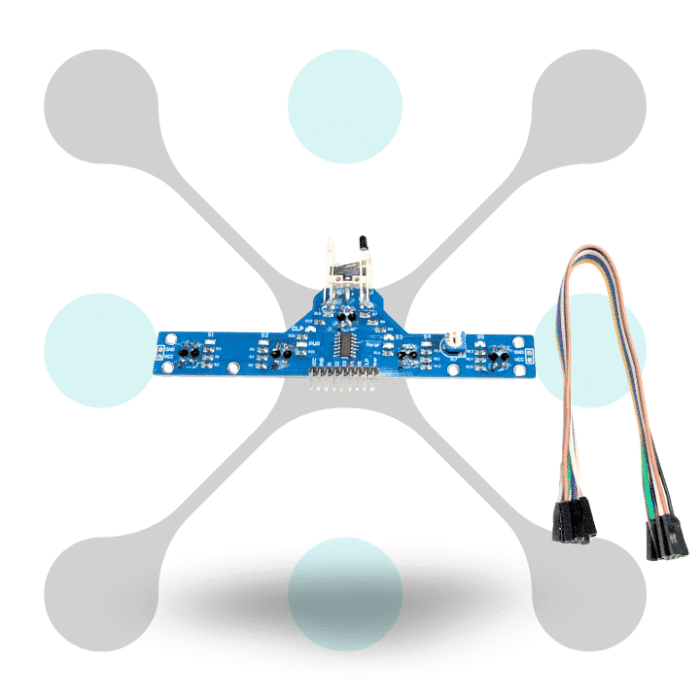

Overview of this BFD-1000 Five Channel Infrared Tracking IR Sensor
Introducing the BFD-1000 Five Channel Infrared Tracking Sensor for robotic and automation project. This advanced module offers a comprehensive 5 way IR sensor design for efficient line tracking capability. It is built with five independent channel to accurate detection and quick response to change in line pattern. You can use this sensor for your project for smooth navigation and obstacle avoidance.
The BFD-1000 Five Channel Infrared Tracking Sensor use high-quality components for superior performance and long life. Each of its five IR sensors works together to deliver precise tracking and feedback. It also allow your project to navigate various paths with exceptional efficiency and confidence. Experience the power of the BFD-1000 as it elevate your project capability.
Designed for compatibility and ease of integration, the BFD-1000 5 way IR Sensor is suitable for various development project. Whether you are a beginner or an experienced professional, this sensor module is easy to install. Its robust design also ensure long lasting performance and reliability. Choose the BFD-1000 Five Way Infrared Tracking Sensor for enhanced navigation and tracking in your projects.
Features
- Five-channel infrared sensor: The module includes five independent IR sensors for line tracking. This setup also provide accurate path detection for a range of line following applications.
- Adjustable sensitivity: Each sensor’s sensitivity can be adjusted to adapt to different environments. This feature use to ensure a reliable performance in both bright and low light condition.
- Compatible with Arduino and other microcontrollers: The module works well with Arduino and other popular microcontrollers.
- Digital and analog outputs: The module offers both digital and analog outputs for each sensor. This versatility allows for flexible data handling and control in various applications. You can choose the type of output that best suits your project’s needs.
- Compact design: The BFD-1000’s compact size allows for easy installation on different platforms. This makes it ideal for smaller robotics projects where space is a concern.
- Low power consumption: Designed for energy efficiency, the module minimizes power usage. This is particularly beneficial for battery-powered projects to extend runtime.
- Simple setup and interface: The module’s straightforward connections and clear labeling make it easy to set up. This user-friendly design suits both beginners and experienced developers.
Specification
| Specification | Details |
|---|---|
| Chip | 74HC14D |
| Sensor | TCRT5000 |
| Input Voltage | 3.0V – 5.5VDC |
| Output Form | Digital output (high or low level) |
| Detection Distance | – TCRT5000 black and white line sensors: 0-4 cm |
| – IR proximity sensor: 0-5 cm | |
| Sensing Range for Tracking | 0.5 mm – 40 mm without any adjustment |
| Number of IR Sensors | 5 (TCRT5000 sensors) |
| Additional Sensors | 1 IR proximity sensor and 1 touch sensor for detecting obstacles |
| LED Indicators | For easy debugging |
| Dimensions | 45×130 mm |
| Weight | 10 mm |
| SKU | RW-121 |
