Description
Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC. The Manual Mode allows you to turn the knob to different speeds and check the reaction time. The Neutral mode makes the servo go back to the neutral point. The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible.
Plus, this servo tester can connect to up to 3 servos simultaneously. You can also connect up to 3 ESCs to test and compare their reaction time respectively. Click and order now!

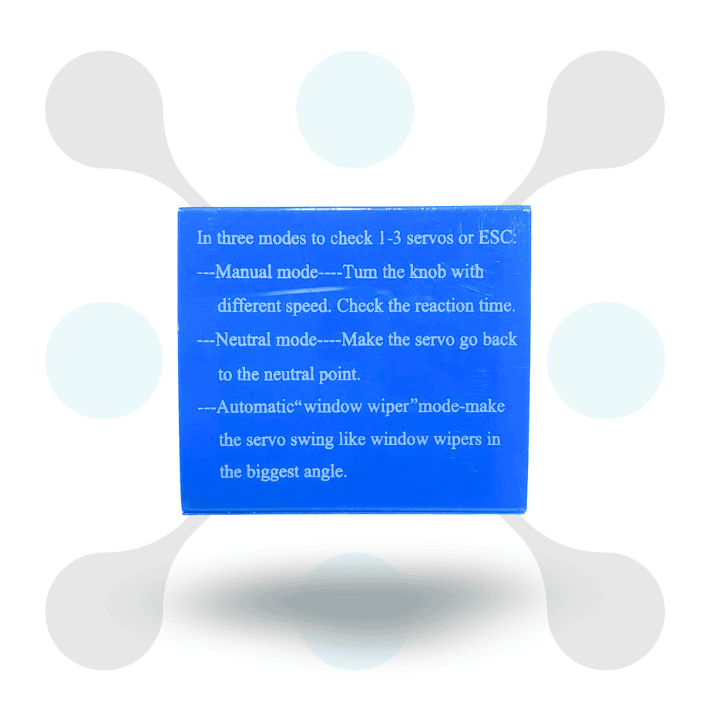

Operation Modes :-
- Automatic mode:- Operates servos to their end point and back “window wiper” mode: Make the servo swing like window wipers in the biggest angle
- Manual mode:- Turn the knob with different speed, check the reaction time
- Neutral / Center mode:- Centers servos to their neutral position Ideal for when setting servos up in a model
- RW-137
Features of Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control :-
- Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control Operating Voltage: DC 4.8-6V
- Offer 3 modes to check servos or ESC
- The Manual Mode allows you to turn the knob to different speeds and check the reaction time
- The Neutral mode makes the servo go back to the neutral point
- The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
- Connect to up to 3 servos simultaneously
- Connect up to 3 ESCs to test and compare their reaction time respectively
- Built with LED indicators
- Output signal: 1.5ms±0.5ms
- Size: 36.5 x 31.0 x 22mm
Package Contains :
1 x Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control
