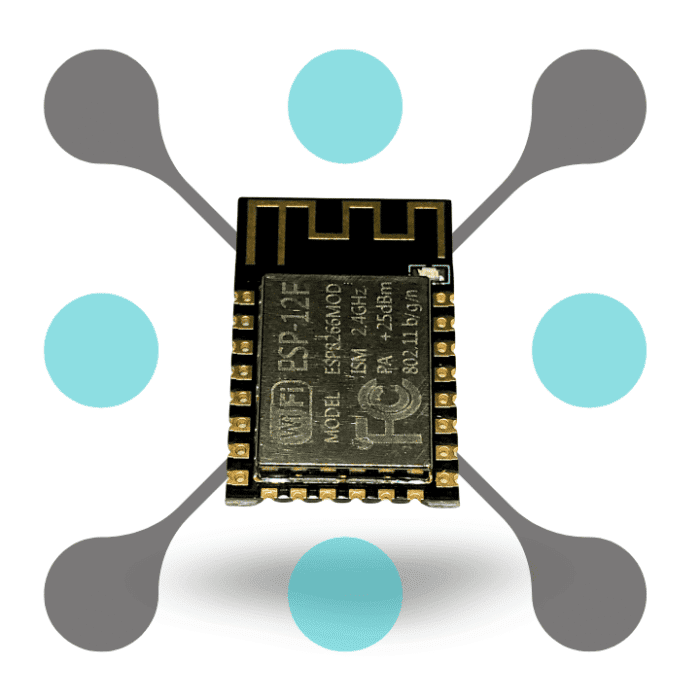

Overview of this ESP-12F ESP8266 Wifi Wireless IoT Board
Introducing the Roboway ESP-12F ESP8266 WiFi Wireless IoT Board Module, a powerful solution for IoT applications. This ESP-12F ESP8266 IoT Board provides seamless wireless connectivity, making it ideal for smart devices. With its high integration and compact design, it fits easily into any project. The ESP-12F ESP8266 WiFi IoT Board offers excellent performance with low power consumption for reliable IoT solutions.
The IoT Board ESP-12F ESP8266 is designed for developers and enthusiasts building smart home devices. It supports a wide range of protocols, ensuring compatibility with numerous platforms. The module’s robust wireless capabilities make it perfect for remote monitoring and control. Choose the ESP-12F ESP8266 WiFi Wireless IoT Board for efficient and versatile IoT development
Features
- Enhanced Wi-Fi Performance: Equipped with an onboard antenna for stable and extended wireless range. Supports 2.4 GHz Wi-Fi with speeds up to 150 Mbps for reliable connectivity.
- High Processing Power: Features a 32-bit processor running at 80/160 MHz, ideal for IoT tasks. Supports complex applications with ample processing capacity and speed.
- Large Flash Memory: Comes with 4MB flash memory for storing programs and data efficiently. Enables over-the-air (OTA) updates, enhancing flexibility for firmware upgrades.
- Multiple GPIOs and Interfaces: Provides several GPIO pins and interfaces like UART, SPI, and I2C. Allows easy integration with sensors, actuators, and other external components.
- Compact Design and Versatile Compatibility: Small form factor for easy embedding in various IoT projects. Compatible with popular development environments like Arduino and NodeMCU.
Specification
| Specification | Details |
|---|---|
| Chipset | ESP8266EX |
| Wi-Fi Standard | IEEE 802.11 b/g/n |
| Frequency | 2.4 GHz |
| Operating Voltage | 3.0V to 3.6V DC |
| Flash Memory | 4 MB (32 Mbit) |
| Data Rate | Up to 72.2 Mbps |
| GPIO Pins | 11 (GPIO0 to GPIO16, excluding GPIO6-11) |
| Antenna Type | PCB trace antenna |
| Transmit Power | +20 dBm (at 802.11b mode) |
| Communication Interfaces | UART, SPI, I2C, I2S, PWM |
| Current Consumption | 80 mA (average in active mode) |
| Deep Sleep Power Consumption | <10 µA |
| Operating Modes | Station, SoftAP, SoftAP+Station |
| Dimensions | 16 mm x 24 mm x 3 mm |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Applications | IoT, Smart Home, Wireless Networking, Automation |
| Weight | 2 grams |
| SKU | RW-76 |
