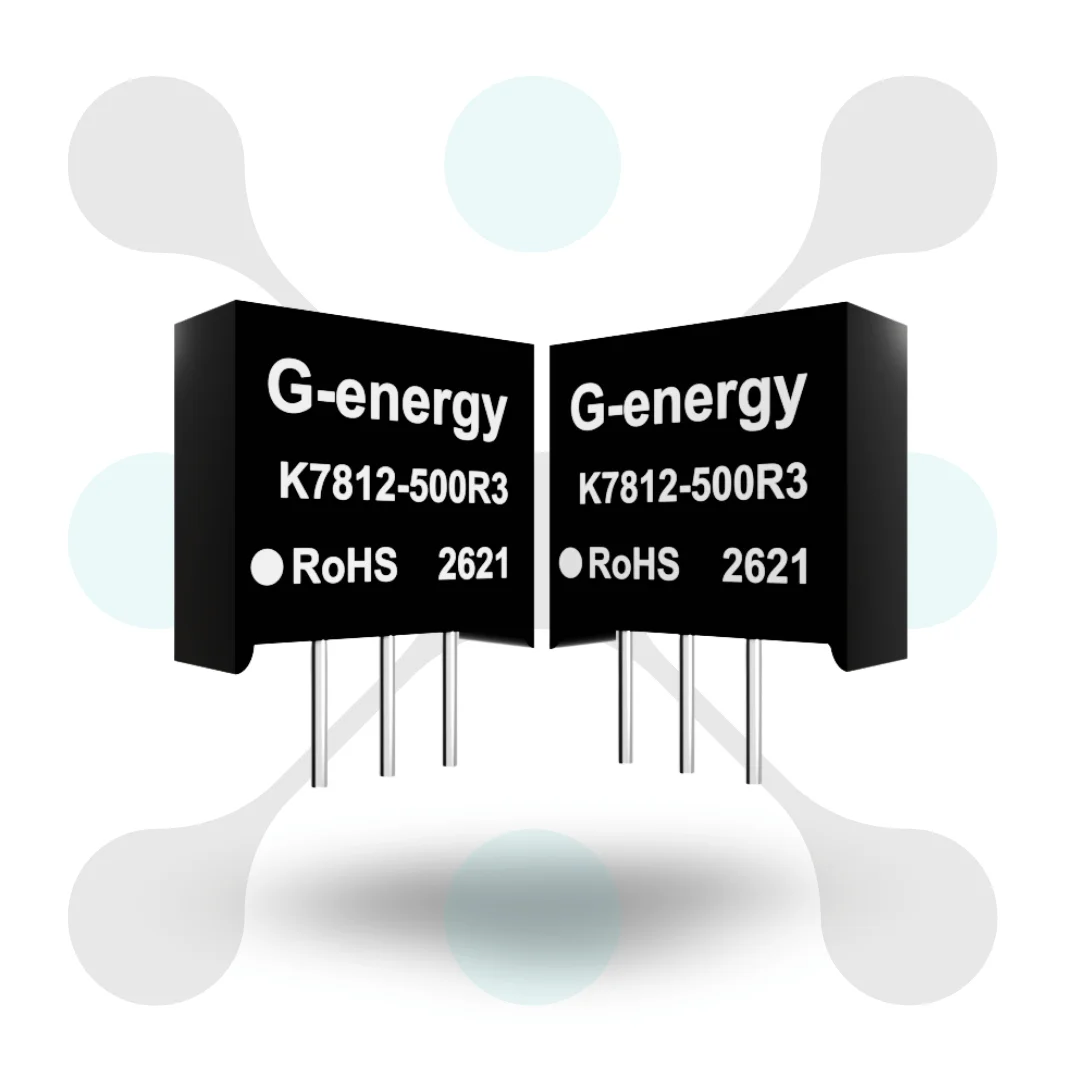

G-energy K7812-500R3 24V To 12V 500mA 6W Dc Dc Converter

Description

Overview of this K7812-500R3 24V To 12V 500mA 6W Dc Dc Converter

Introducing G-energy K7812-500R3 24v to 12v 500mA 6w dc dc converter at best price in India with Roboway. This converter work on input voltage of 15-36v dc input voltage. It also provide a stable power of 6w to operate low power device. It is built with Ip68 rated Sip(single inline package) for its smooth operations.

Features

SIP(single inline package): It is built with single inline package mount to get easy mounting and stabled power in pcb.

6W Power: It provide dc current up to 500mA and power up to 6w at 12v fix dc voltage output.

Ip68 waterproof body: It is also come with a ip68 rated water proof and dust proof body for its smooth performance.

Specification

Specification

1.Input Voltage Range: 15-36V

2. Output Voltage: 12V DC

3. Output Current: 500mA

4. Output Power: 6W

5. Efficiency: Up to 94%

6.Line Regulation: ±0.2% (Max)

7. Load Regulation: ±0.5% (Max)

8. Ripple and Noise: 30/50mVp-p

🌡 Environmental Specifications

Operating Temperature Range: -40°C to +80°C

Storage Temperature Range: -40°C to +100°C

Humidity Range: 10% to 90% RH

📦 Mechanical & Physical

Dimensions: 11mm × 10mm × 7mm

Weight: 13 gm

Cooling Method: Free air convection (no fan required)
