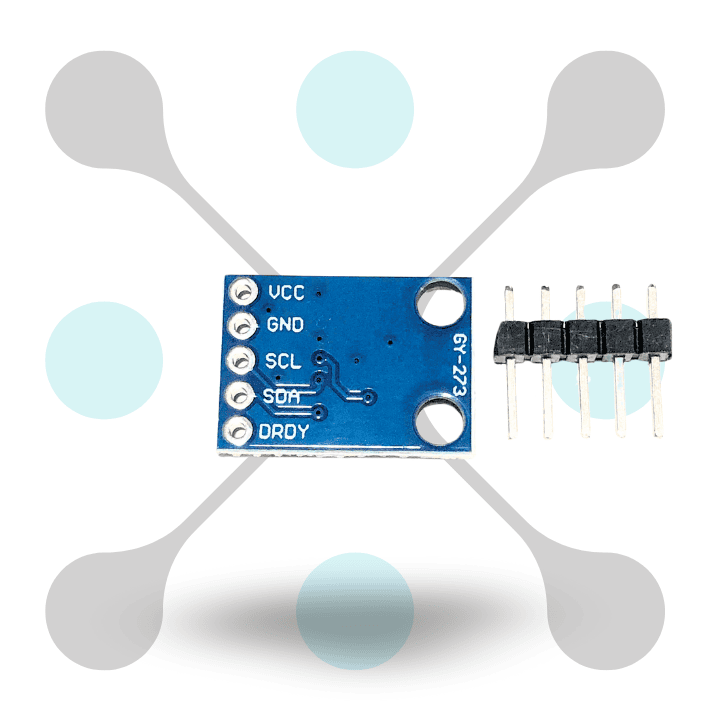

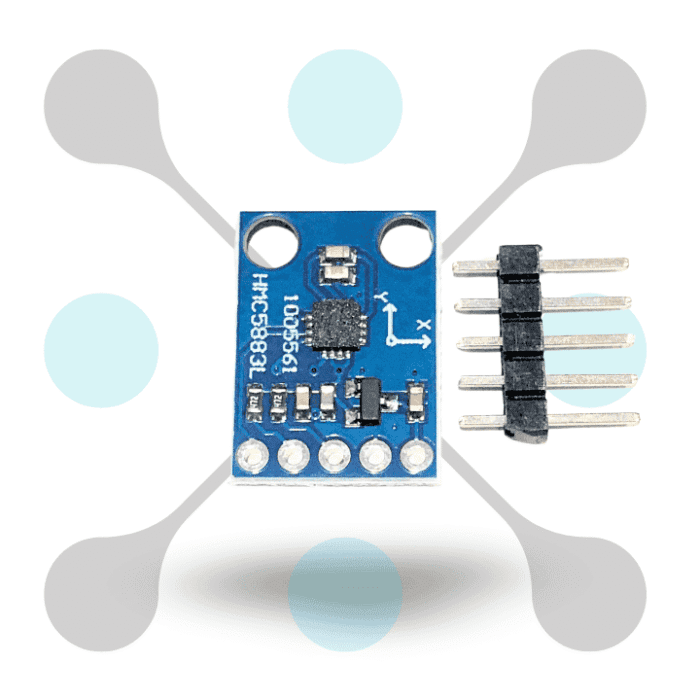

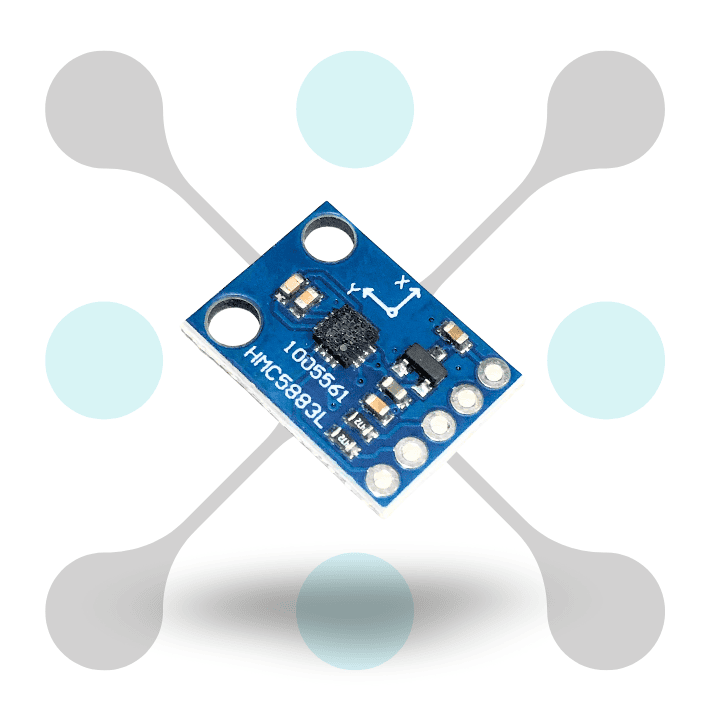

GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module

167.56 ( Excluding 18% GST )

Sensor Type HMC5883L Triple Axis Magnetometer
Measurement Range ±1.3 to ±8.1 Gauss
Measurement Axes Three axes (X, Y, Z)
Resolution 5 milliGauss
Output Type Digital I2C interface


In stock


5 People watching this product now!
SKU: RW-148 Categories: ,
Description

Description

Overview of this Triple Axis Compass Magnetometer Sensor

The GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module is a versatile and reliable tool for accurate magnetic field detection. It measures the magnetic field in three axes, providing precise orientation data for various applications. Whether for navigation, robotics, or DIY projects, this sensor delivers consistent and dependable readings. Its high sensitivity and low noise levels ensure reliable performance in different environments.

The GY-273 HMC5883L Magnetometer Sensor is easy to integrate with microcontrollers for real-time data processing. Its compact design allows for seamless installation in tight spaces, making it suitable for small projects. The module supports I2C communication for easy interfacing with different systems. Its adjustable gain settings offer flexibility in adapting to varying magnetic field strengths.

The GY-273 HMC5883L Triple Axis Compass Magnetometer enhances your projects with accurate and responsive magnetic sensing. It offers quick response times and stable output for precise orientation tracking. Its robust design ensures durability and long-lasting performance. Choose the GY-273 HMC5883L Compass Sensor for your projects to benefit from reliable magnetic field detection and precise compass functionality.

Features

  • Triple-axis magnetometer: The GY-273 module features the HMC5883L chip, which provides 3-axis magnetic field sensing. This allows for precise measurement and orientation detection in all three spatial dimensions.
  • I2C interface: The module communicates via the I2C protocol, offering easy integration with microcontrollers. This provides a simple and efficient way to receive data from the sensor.
  • High accuracy: The sensor offers high accuracy in measuring magnetic fields, making it suitable for applications such as navigation and orientation tracking. This precision ensures reliable and consistent data.
  • Wide operating range: The module operates across a range of magnetic field strengths, from 0.88 to 8.1 gauss. This versatility allows it to function in various environments and applications.
  • Compact and lightweight design: Its compact size and lightweight build make it easy to integrate into various projects. This is particularly useful for portable and space-constrained applications.
  • Low power consumption: Designed for energy efficiency, the module requires minimal power to operate. This makes it ideal for battery-powered projects and long-term use.
  • Calibration and compensation: The module supports calibration and compensation features for improved accuracy. This helps correct for magnetic interference and variations, ensuring consistent performance.

Specification

Specification Details
Sensor Type HMC5883L Triple Axis Magnetometer
Measurement Range ±1.3 to ±8.1 Gauss
Measurement Axes Three axes (X, Y, Z)
Resolution 5 milliGauss
Output Type Digital I2C interface
Data Rate Selectable (0.75 Hz to 75 Hz)
Operating Voltage Typically 3V – 5V DC
Power Consumption Low power consumption
Calibration Requires calibration for accurate measurements
Operating Temperature -40°C to +85°C
Size Typically small, varies by design
Mounting Holes For easy installation
Compatibility Arduino, Raspberry Pi, etc.
Application Electronic compass, navigation, positioning
Features Continuous measurement mode, standby mode
SKU RW-148
