Description

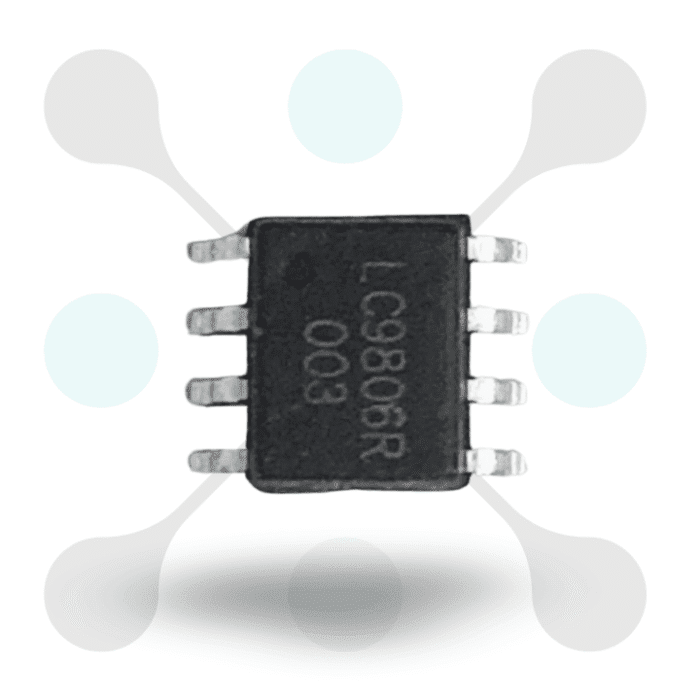

IC-LC9806 CMOS IC for Siren/alarm is a CMOS IC tor siren/alarm appilication. It has Vdd control 1/6 siren
sounds and the LC9801/LC9806 will be generated in cycling sequence.

Features :

• CMOS process
• Low stand-by current
• On-chip RC oscillator
• Auto power off function
• Absolute Maximum Ratings
• DC supply Voltage Vdd———- -0.3V~5V
• Storage temperature Tstg -25℃ ~+125℃
• Operating temperature Top 0℃~+70℃
• RW-IC0073

Electronic characterstics of IC-LC9806 CMOS IC for Siren/alarm :

Pin diagram of IC-LC9806 CMOS IC for Siren/alarm :

Timing diagram :

Package Contains :

1 x IC-LC9806 CMOS IC for Siren/alarm
