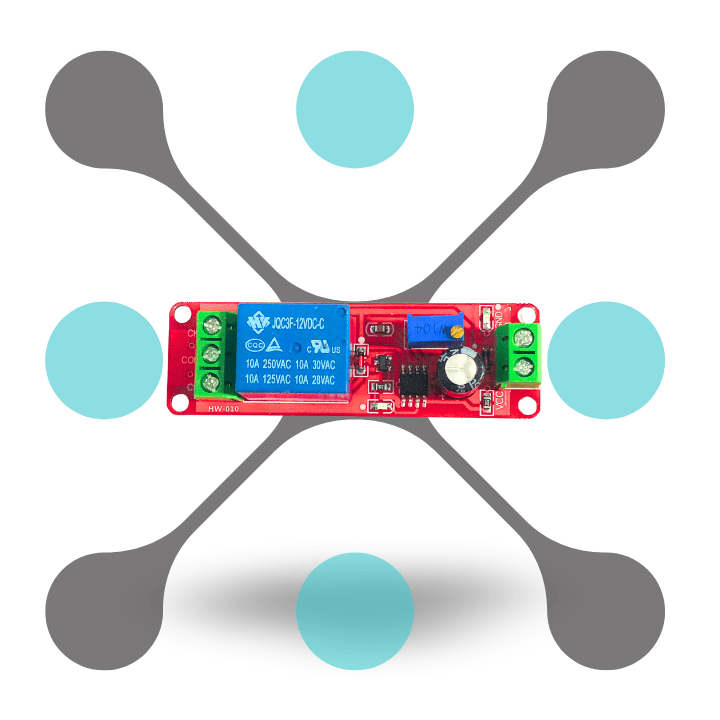

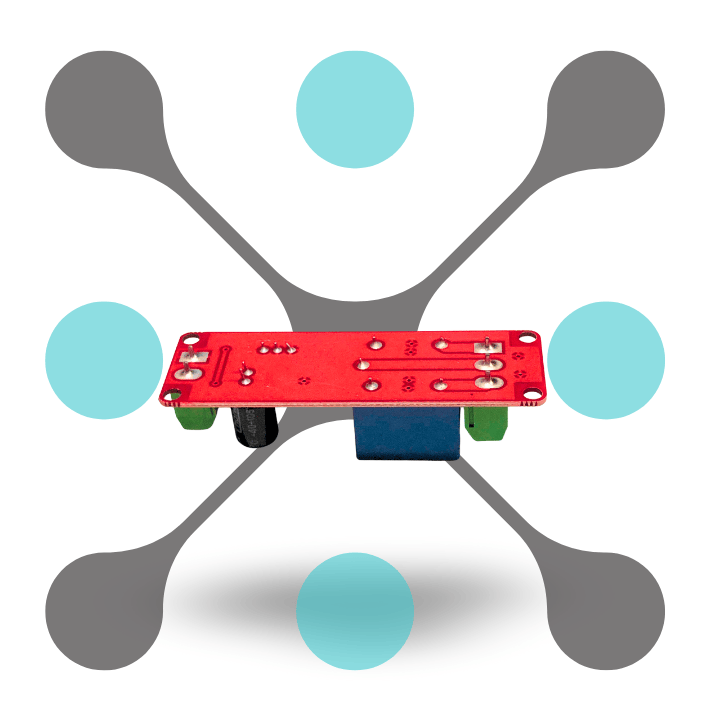

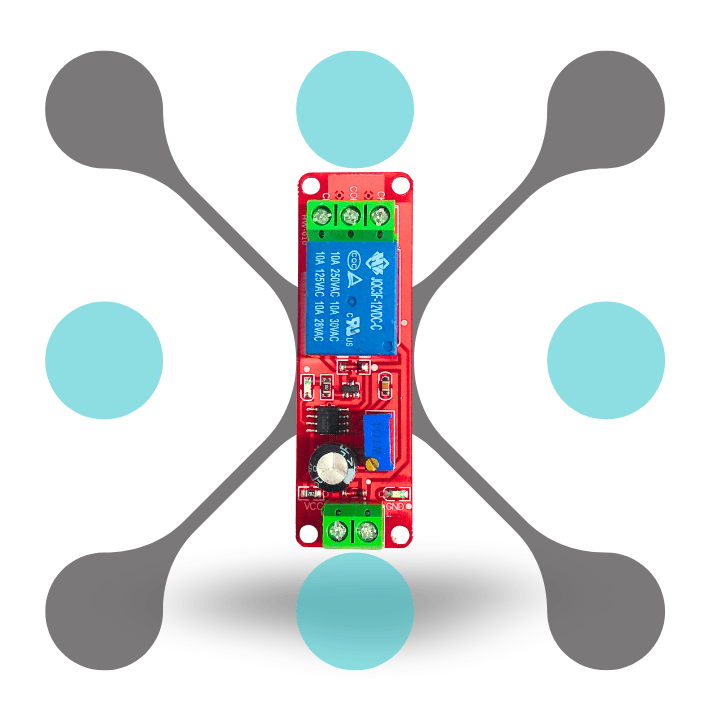

NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module

Overview of this NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module

Introducing Roboway NE555 Delay Timer Switch is a versatile 12V relay module for precise timing control. This Adjustable Delay Timer Switch allows user to set delays from 0 to 10 seconds & make it perfect for various automation tasks. It is also built with reliable NE555 IC, it ensure stable performance across different application.

It is specially designed for flexibility, this 0-10 Sec Delay Timer 12V Relay Module is perfect for DIY electronic and industrial project. With its simple setup, this 12V delay timer switch provide an easy solution for delayed switching needs. Choose the NE555 Timer for accurate, dependable delay timing in your next project.

Features

Adjustable Delay Timing: This NE555 Delay Timer Switch allow delay adjustment from 0 to 10 seconds for flexible control. It also  provide precision timing for various electronic applications.

NE555 Timer IC: It also use the reliable NE555 timer IC for stable performance. It ensure stable operation for time delay control circuit.

12V Relay Output: It is also equipped with a 12V relay output to control high power device. This enable switching of lights, motors, or other connected device.

Easy to Use Design: Simple to set up and adjust with a dedicated potentiometer. It is ideal for users who need hassle free timing adjustment.

Versatile Application Range: It is also perfect for automation, DIY project, and electronic control systems. Its versatility make it useful in a wide range of timing applications.

Specification

Module Type: NE555 Delay Timer Switch Relay Module

Timer IC: Based on NE555 timer chip

Input Voltage: 12V DC

Relay Output: 1 Channel (SPDT – Single Pole Double Throw)

Adjustable Delay Range: 0 to 10 seconds (adjustable via potentiometer)

Load Capacity: Supports up to 10A @ 250V AC or 10A @ 30V DC

Trigger Mode: Activated by low-level trigger signal

Operating Temperature: -40°C to +85°C for wide-range applications

PCB Dimensions: 50 mm x 26 mm x 18 mm

Power Consumption: Low power consumption, typically less than 1W

Output Indicator: Onboard LED indicates relay activation status

Application: Ideal for timing delays, automation tasks, and control systems

Mounting Holes: Pre-drilled holes for easy installation

Adjustable Components: Includes potentiometer to fine-tune delay time

SKU: RW-271
