Description

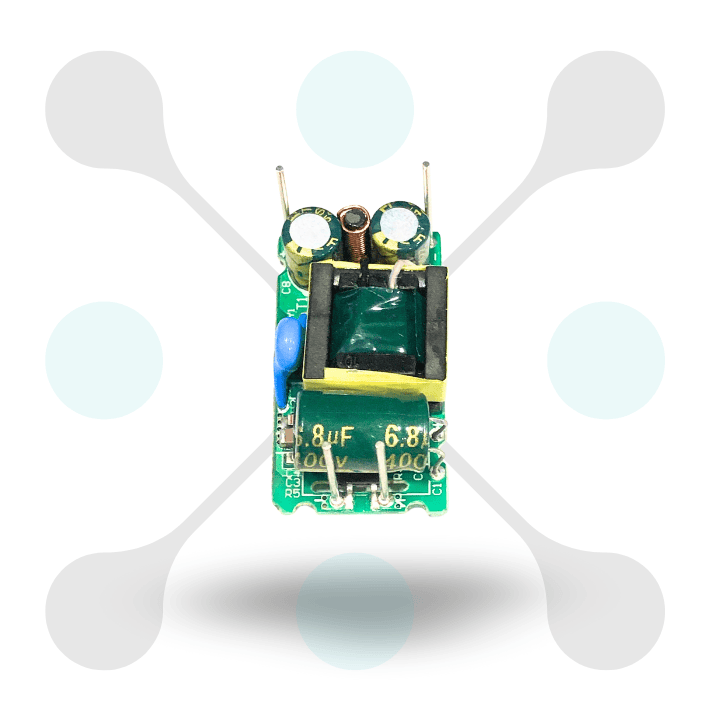

Overview of this Open frame HLK-PM12L Ac-Dc Converter
Introducing the Open Frame HLK-PM12L Ac-Dc Converter by Hi-Link, a versatile solution for electronic applications. This module easily transforms 100-240V AC input into a stable 12V DC output, delivering 3 watts of reliable power.
The Open Frame HLK-PM12L 12V 3W Ac-Dc Module is designed with an open-frame configuration. And also provide flexibility for installation and integration into diverse electronic projects. Its compact form factor and isolated design make it suitable for various applications where space efficiency and safety are crucial.
Features
- High Efficiency: This Open frame HLK-PM12L Ac-Dc Converter also boasts high efficiency. And reduce energy loss during the conversion process.
- Isolated Design: Its isolated design provides electrical separation between the input and output. And also enhance safety and preventing potential issues such as ground loops or electrical interference.
- Compact Open Frame Design: The open frame design makes it suitable for integration into various applications where space is limited. It allows for easy mounting and installation, ideal for compact electronic devices or systems.
- Wide Input Voltage Range: With a wide input voltage range, typically work on AC voltage from 85V to 265V. This converter also offer versatility in different power supply scenarios, making it suitable for various regions and applications.
- Stable Output Voltage: This Open frame HLK-PM12L Ac-Dc Converter also ensure a stable 12V output voltage.And also use to power sensitive electronic device and ensure high performance of connected devices.
Specification
| Specification | Value |
|---|---|
| Input Voltage Range | 85-265V AC |
| Output Voltage | 12V DC |
| Output Power | 3W |
| Output Current | 250mA |
| Isolation Voltage | 3 kV |
| Efficiency | upto 93% |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Ripple and Noise | <100mVp-p |
| Certification | CE, UL |
| Dimensions (L x W x H) | 34.5mm x 20.5mm x 15.5mm |
| Weight | ~20 grams |
| SKU | RW-780 |
