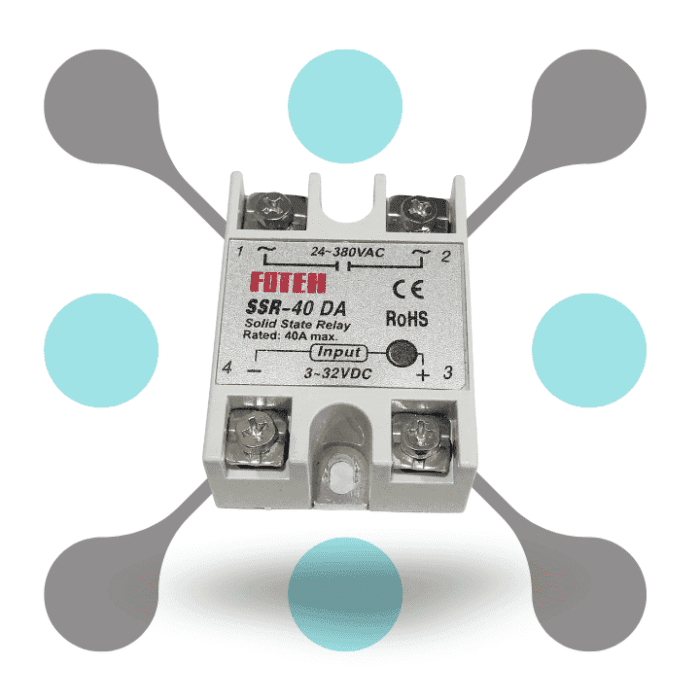

Overview of this ssr-40da solid state relay module
The SSR-40DA Solid State Relay Module is a reliable, high-performance component for industrial automation. Built to handle 3-32VDC input and 24-380VAC output, this 40A solid state relay ensures efficient switching without mechanical wear. The SSR-40DA provides consistent performance in applications requiring smooth, silent operation under heavy loads.
Designed for durability, this 3-32VDC/24-380VAC 40A SSR-40DA relay can withstand harsh conditions. It offers protection against voltage spikes and minimizes overheating risks, making it ideal for sensitive equipment. This SSR-40DA solid state relay module is perfect for applications requiring long-lasting, maintenance-free solutions.
Features
- High Current Capacity: This relay module supports up to 40A current for heavy-duty applications. It provides reliable switching in high-power devices, enhancing operational efficiency.
- Wide Input Voltage Range: With a control input range of 3-32V DC, it suits varied applications. This flexibility allows seamless integration with different control systems.
- Efficient AC Load Switching: It handles 24-380V AC loads, making it ideal for industrial uses. The relay ensures smooth switching, reducing wear compared to mechanical relays.
- Long-Lasting Durability: Built with no moving parts, it minimizes mechanical wear over time. Its solid-state design ensures high durability and a longer operational lifespan.
- Silent and Vibration-Free Operation: The relay operates quietly without any mechanical clicking sounds. This feature is especially useful in noise-sensitive and precision-required environments.
Specification
| Specification | Details |
|---|---|
| Input Control Voltage | 3-32V DC |
| Output Load Voltage | 24-380V AC |
| Maximum Load Current | 40A |
| Output Type | AC |
| Trigger Current | ≥7.5mA at 12V input |
| Response Time | Turn-on: ≤10ms, Turn-off: ≤10ms |
| Dielectric Strength | 2500V AC between input and output |
| Leakage Current (Off State) | ≤2mA |
| On-State Voltage Drop | ≤1.6V |
| Mounting Style | Panel mount |
| Operating Temperature Range | -30°C to +75°C |
| LED Indicator | Yes, indicates relay status |
| Insulation Resistance | ≥1000MΩ/500V DC |
| Frequency Range | 50/60 Hz |
| Material | Aluminum alloy base for heat dissipation |
| Weight | Approximately 115g |
| SKU | RW-432 |
