Description

Overview of this Hi-link URB2405S-3WR3 isolated dc converter

Introducing the Hi-link URB2405S-3WR3 isolated DC converter, an efficient solution for voltage conversion needs. This compact module easily transform 24V input to stable 5V output. And also provide 3W of power with a current capacity of 600mA. It is also built with safety in mind, the URB2405S-3WR3 also ensures complete electrical isolation with an isolation voltage of 1500VDC.

The Hi-link URB2405S-3WR3 isolated DC power module is design to meet various industry and electronic need . Its compact design makes it perfect for less space usage while its robust construction also ensure durability and long life. With stable and precise power delivery, this module is also use to power sensors, control systems, and communication device in diverse applications.

Experience seamless voltage conversion with the Hi-link 24V to 5V 3W 600mA DC-DC converter. Whether in industry machine or electronic devices, this module provides reliable performance. Trust Hi-link for exceptional quality and performance, with the URB2405S-3WR3 power module leading the way in voltage conversion solutions.

Features

Efficient Voltage Conversion: The Hi-link URB2405S-3WR3 isolated DC converter efficiently transforms 24V to 5V output. It ensures precise voltage regulation for optimal performance in electronic systems.
Compact Design: With its compact form factor, the URB2405S-3WR3 module saves space in installations. Its small size enhances versatility without compromising on power conversion capabilities.
Complete Electrical Isolation: Hi-link URB2405S-3WR3 ensures complete electrical isolation with 1500VDC isolation voltage. This feature enhances safety by preventing electrical hazards and ensuring reliable operation.
Reliable Power Delivery: The URB2405S-3WR3 power module delivers stable and reliable power to connected devices. It ensures consistent performance, making it suitable for various industry and electronic applications.
Robust Construction: Built with durability in mind, the URB2405S-3WR3 module features a robust construction. Its sturdy design withstands harsh environments, ensuring long-term reliability.

Specification

Specification	Value
Input Voltage	24V
Output Voltage	5V
Output Power	3W
Output Current	600mA
Efficiency	Upto 87%
Isolation Voltage	1500VDC
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +125°C
Overload Protection	Yes
Short Circuit Protection	Yes
Cooling Method	Free Air Convection
Dimensions (L x W x H)	22x12x10 mm
Weight	15g
Certifications	RoHs
SKU	RW-DC063

Main use of this 24V to 5V 3W 600mA hi-link isolated dc converter

Electronic Device Powering: The Hi-link URB2405S-3WR3 converter efficiently supplies 5V to devices from 24V sources. Its precise voltage regulation ensures optimal electronic performance.
Automotive Voltage Conversion: Ideal for vehicle electronic systems, this module converts 24V to 5V with reliability. It supports various vehicle components for better functions and efficiency.
Industry Control System Support: The URB2405S-3WR3 provides stable power for industry control systems, ensuring smooth operation. Its robust design withstands harsh industry environments.
Battery Charging System Regulation: This converter regulates voltage for battery charging systems, optimizing charging conditions. It delivers consistent power, prolonging battery life and performance.
IoT Device Power Distribution: With efficient power distribution, the URB2405S-3WR3 supports IoT devices and sensors. It ensures smooth operation & provide smooth data transmission.

Environment Condition

Project name	Qualification	Unit	Notes
Working environment temperature of Hlk-URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Power Module Converter	-40—+85	℃
Storage temperature	-40—+125 ℃	℃
Relative humidity	5—95	%
Heat dissipation mode	natural cooling
Atmospheric pressure	80—106 Kpa	Kpa
Ripple & Noise	50/100(max)	Mvp-p

Input Characteristics of Hlk-URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Power Module Converter

Item	Working conditions	Min.	Typ.	Max.	Unit
Input voltage range	5VDC Input Series	4.5	12	18	VDC
	24VDC Input Series	9	24	36
	48VDC Input Series	18	48	75
	12VDC Input Series	—	320/15	328/30
	24VDC Input Series	—	160/6	164/10
	48VDC Input Series	—	80/4	82/6
	12VDC Input Series		40	—
	24VDC Input Series		55	—
	48VDC Input Series		45	—
Impulse voltage（1sec.max.)	5VDC Input Series	-0.7	—	12	VDC
	12VDC Input Series	-0.7	—	25
	24VDC Input Series	-0.7	—	50
	48VDC Input Series	-0.7	—	100
Starting voltage	5VDC nominal input series, nominal input voltage	–	–	4.5
	12VDC nominal input series, nominal input voltage	–	–	9
	24VDC nominal input series, nominal input voltage	–	–	18
	48VDC nominal input series, nominal input voltage	–	–	36
Input filter type		Capacitance filter type
Hot plugged		Non-support

Output Characteristics of Hlk-URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Power Module Converter

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Linear adjustment rate of Hlk-URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Power Module Converter	Full load, input voltage from low voltage to high voltage		—	±3.0	±5.0	%
No-load output voltage accuracy	Input voltage range		—	±1.5	±5.0	%
Output Voltage Accuracy	5%-100% load, input voltage range	3.3V/5V Input	—	±3.0	±5.0	%
Output Voltage Accuracy	5%-100% load, input voltage range	others	—	±1.0	±3.0	%
Load adjustment rate	5%~10% load	3.3VDC Output	—	±0.4	±75	%
Transient recovery time	25% load step change		—	0.5	2	ms
Transient Response Bias			—	±2.5	±5	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		—	50	100	mVp-p
Temperature Drift Coefficient	Full load		—	±0.02	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

Typical Application Circuits

Relevant Power Module

Hi-link Power Module	Input & output	Current & power	Buy Link
Hi-link URA4812YMD-10WR3 isolated dc converter	48V to 12V	10W 833mA	Buy now
Hi-link URB4805YMD-10WR3 Isolated dc converter	48V to 12V	10W 833mA	Buy now
Hi-link B0515S-2WR3 isolated dc converter	5V to 15V	2W 133mA	Buy now
Hi-link B0524S-2WR3 Isolated dc converter	5V to 24V	2W 83mA	Buy now
Hi-link B2412S-2WR3 isolated dc converter	24V to 12V	2W 166mA	Buy now
Hi-link URB2405S-3WR3 isolated dc converter	24V to 5V	3W 666mA	Buy now
Hi-link URB2405YMD-6WR3 isolated dc converter	24V to 5V	6W 1.2A	Buy now
Hi-link URB4805LMD-40WR3 isolated dc converter	48V to 5V	40W 8A	Buy now
Hi-link VRB1212YMD-5WR3 isolated dc converter	12V to 12V	5W 416mA	Buy now

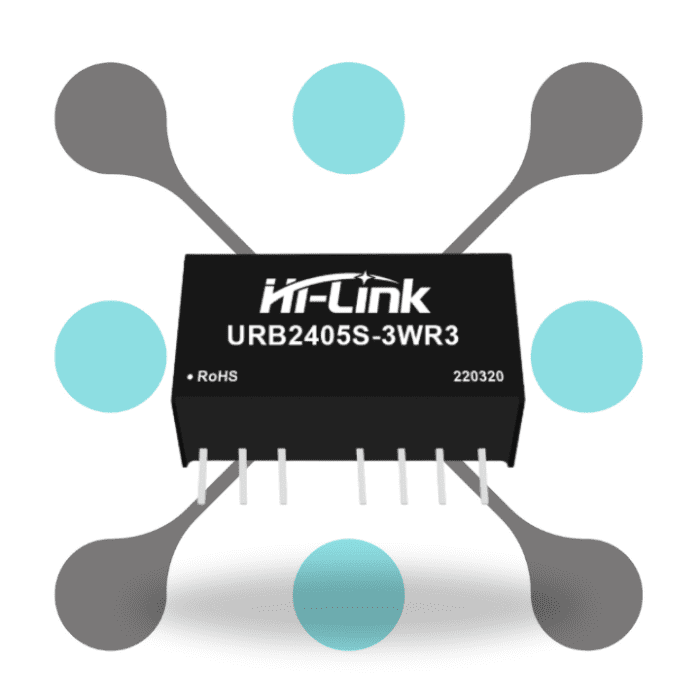

roboway Hi-link URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Isolation Voltage 1500VDC Power Module Converter

Hi-link URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Isolation Voltage 1500VDC Power Module Converter

Click to enlarge

Back to products

Hi-link URB2405S-3WR3 24V to 5V 3W 600mA DC to DC Isolation Voltage 1500VDC Power Module Converter

SKU: RW-DC063

₹599.00 ( Excluding 18% GST )

Input Voltage	24V
Output Voltage	5V
Output Power	3W
Output Current	600mA
Isolation Voltage	1500VDC

Only 9 left in stock

Add to wishlist

For bulk and B2B enquiries kindly mail us at info@roboway.in
