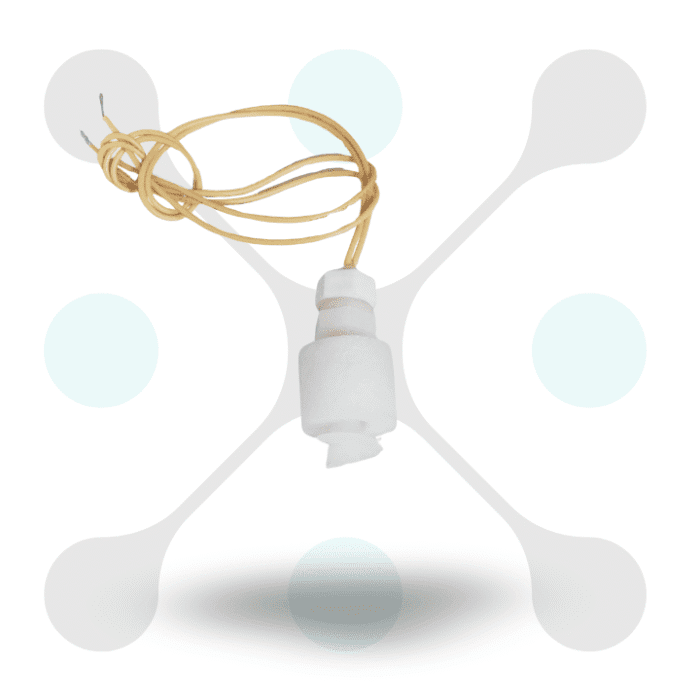

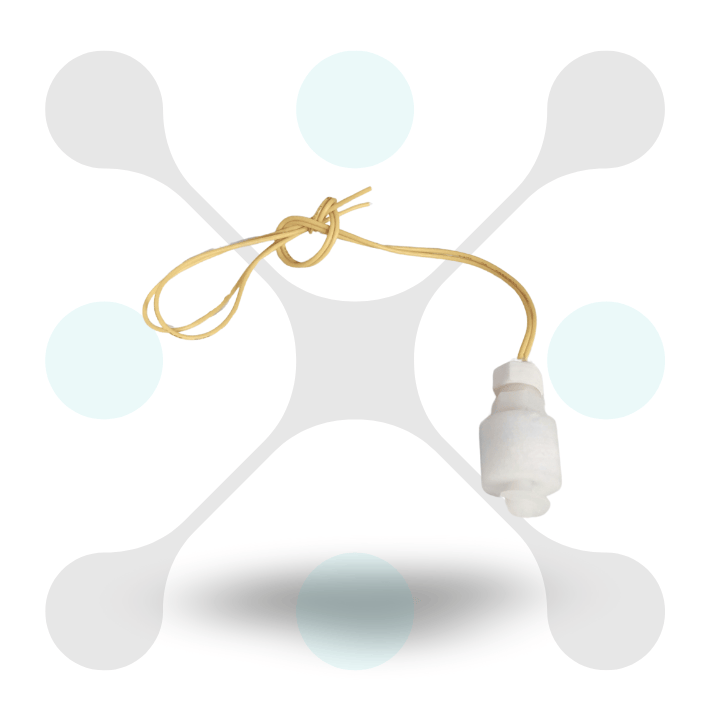

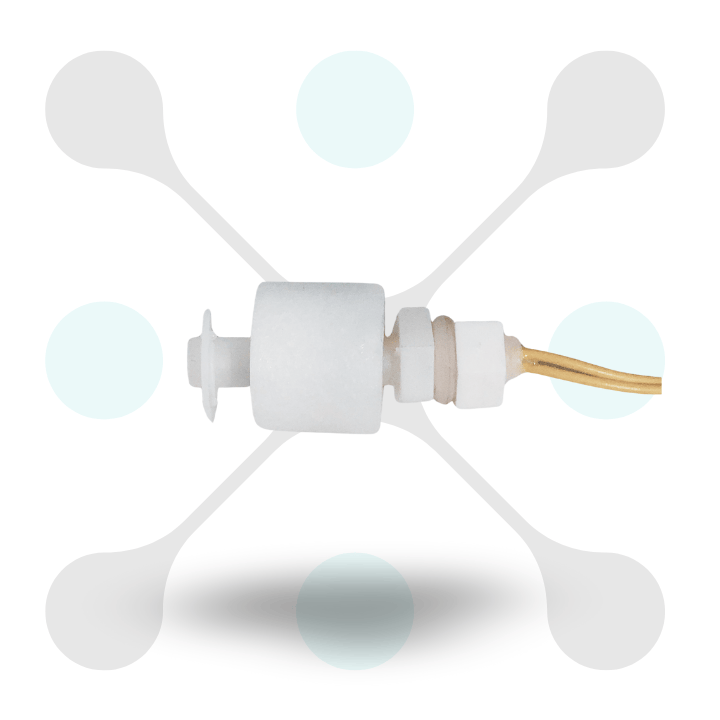

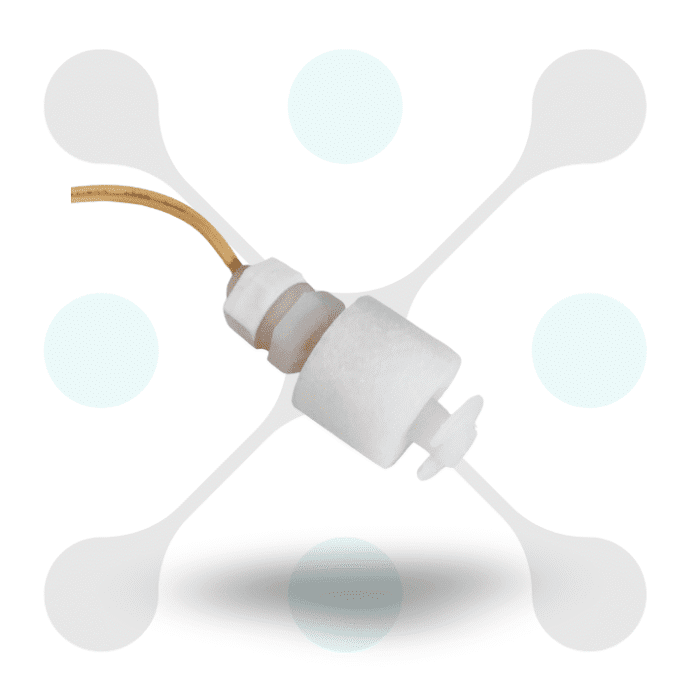

P43 Water Level Sensor Float Switch

Introducing the P43 Water Level Sensor Float Switch, a versatile device designed to accurately detect liquid levels within tanks. This float switch can be used in various applications such as hydroponics, aquariums, pet bowls, and more, to activate pumps, indicators, alarms, or other devices based on the liquid level.

With a cable length of 30.5cm and a maximum load of 50W, the P43 float switch offers reliable performance in controlling liquid levels. It features a maximum switching voltage of 100V DC and a maximum switching current of 0.5A, ensuring efficient operation in diverse settings.

The P43 Water Level Sensor Float Switch is easily convertible from normally open to normally closed by inverting the float. However, it’s important to note that due to its low current carrying capacity (0.5A), a relay or contactor must be used when connecting it to a load. (Relay and contactor not included)

• Versatile Application: The P43 float switch is suitable for various liquid level sensing applications, including hydroponics, aquariums, and automotive projects, offering flexibility and adaptability.
• Multi-functional Use: It can actuate pumps, indicators, alarms, or other devices, making it ideal for controlling power heads, filtration systems, and heating elements in diverse settings.
• Adjustable Configuration: Easily convert from normally open to normally closed by inverting the float, providing versatility to accommodate different project requirements with ease.
• Reliable Performance: With a maximum load of 50W and a maximum switching current of 0.5A, this sensor ensures efficient and reliable operation for managing liquid levels effectively.
• Flexible Cable Length: Featuring a 30.5cm cable length, the P43 sensor offers convenient installation and placement options, adapting to various tank sizes and configurations effortlessly.
• Wide Temperature Range: With a temperature rating from -20°C to 80°C, this float switch maintains functionality in a broad range of environmental conditions, ensuring durability and reliability.
• High-Quality Construction: The P43 sensor boasts a maximum contact resistance of 0.4Ω, ensuring minimal signal loss and optimal performance for consistent and accurate liquid level detection.
