Description

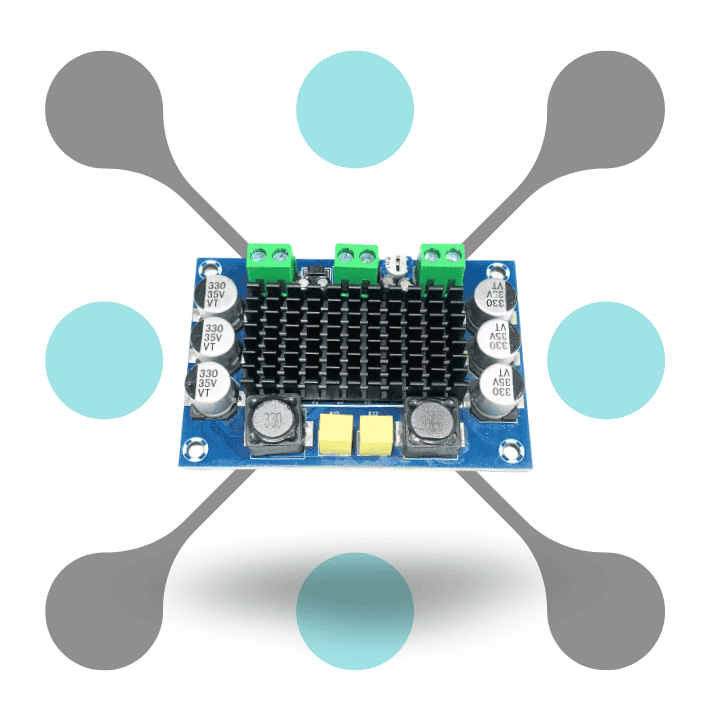

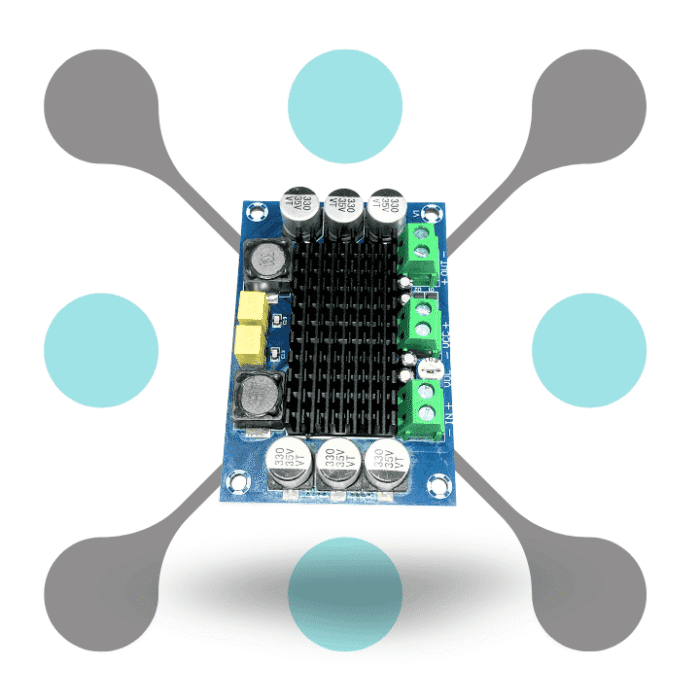

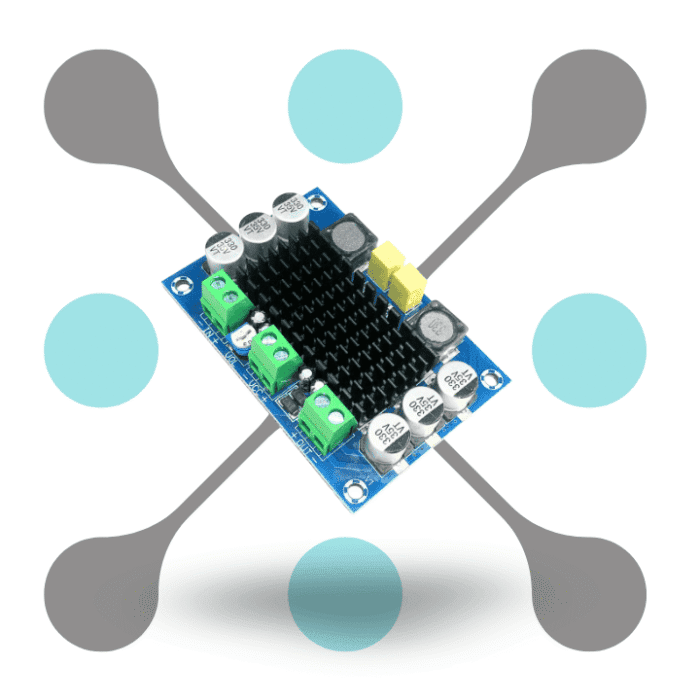

TPA3116D2 XH-M542 Single Channel Digital Power Amplifier Board is newly designed digital audio amplifier board with fine quality is practical to install and use also has good performance. It features high-efficiency class D audio power amplifier with the latest and original TPA3116D2 core technology the BTL bridge circuit is more efficient than before.
This product uses the double power supply transformer with a dynamic power supply range from 12V to 24V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.
Note: This Product is available in two different variants (XH-M542 and HW 576) with the same working we will ship it randomly.
Features:
- Strong TPA3116D2 chip is a digital power amplifier chip, with low idle loss characteristics, makes it work well and quickly.
- Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, , excellent sound quality.

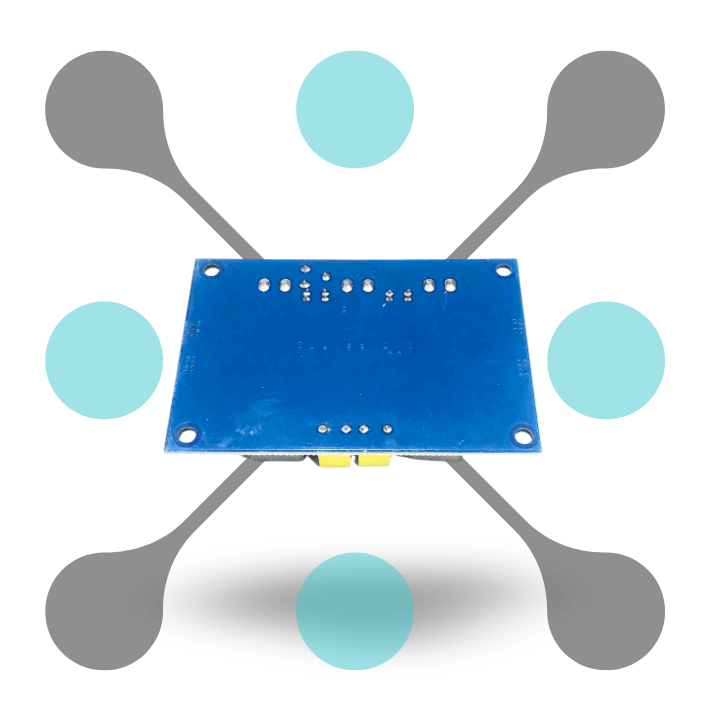

- There is no solder joint on the back of the circuit board, the chip capacitors and the solder board together, so there is no possibility of short circuit.
Package Includes:
1 x XH-M542 Single Channel High Power Digital Audio Power Amplifier Board TPA3116D2
Specifications:
| Operating Voltage Range (VDC) | 12 to 24 |
| Output Power (W) | 100W |
| Signal to Noise Ratio | 100db |
| Length (mm) | 79 |
| Width (mm) | 54 |
| Height (mm) | 16 |
| Weight (gm) | 55 |
* Product Images are shown for illustrative purposes only and may differ from actual product.
