Description

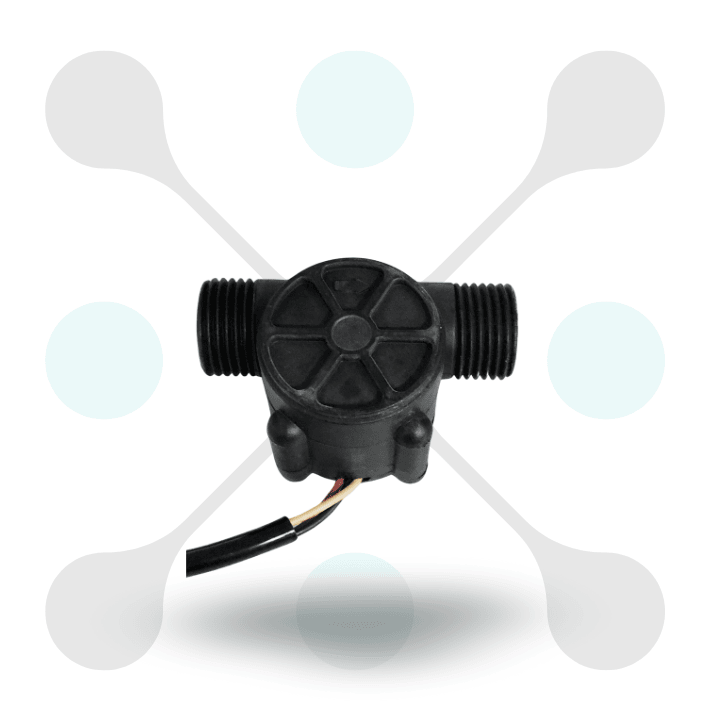

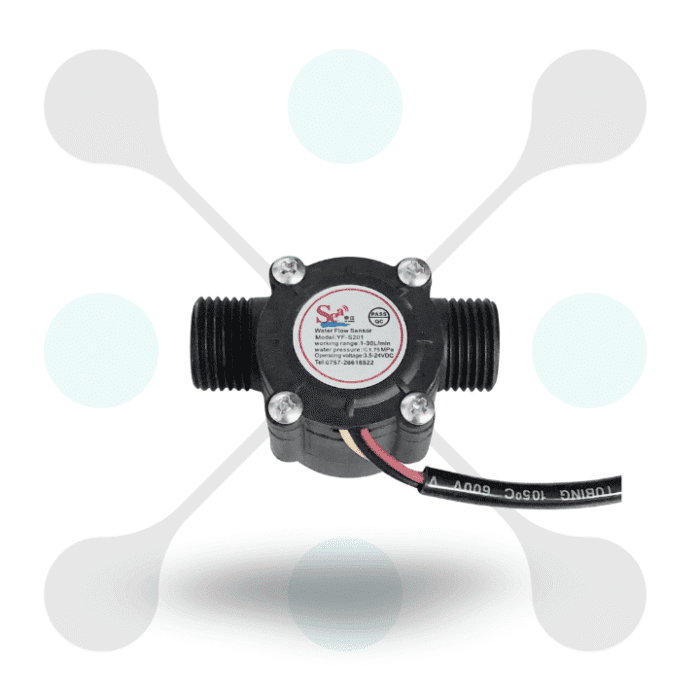

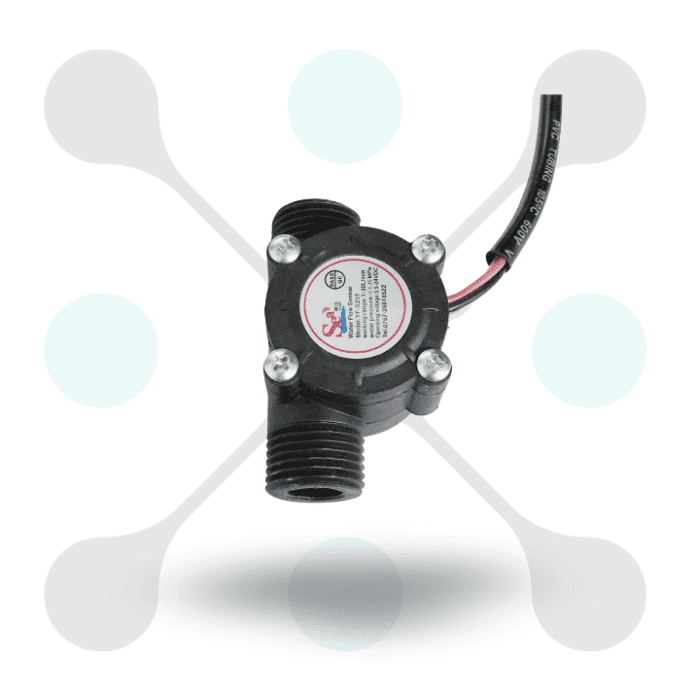

Overview of this YF-S201 Water Flow Measurement Sensor with 1-30Liter/min Flow Rate
Introducing Roboway YF-S201 Water Flow Measurement Sensor with upto 1-30Liter/min Flow Rate measurement. This sensor use hall effect technology. Which work within a working voltage range of 5 to 18V DC, with a tested minimum working voltage of 4.5V. With its 5V TTL output type and maximum current draw of 15mA @ 5V this YF-S201 provide accurate flow rate readings.
The YF-S201 Water Flow Sensor can read flow rate range of 1 to 30 Liters/Minute. Which make it perfect for various device. It can easily work on temperature range of -25 to +80℃ and also offer durability of minimum 300,000 cycles. This sensor also ensure reliable performance in diverse environment. Its high accuracy of ±10% and maximum water pressure of 2.0 MPa make it perfect for water flow measurement task.
It is especially design for precision and durability, the YF-S201 1-30Liter/min Water Flow Sensor is perfect for water flow measurement applications. Its flow rate pulse characteristics and pulses per liter specifications ensure precise flow rate monitoring.
Features
- Hall Effect Sensor: This YF-S201 Water Flow Measurement Sensor use a Hall effect sensor for accurate flow measurement.
- Wide Voltage Range: It can also operate within a wide voltage range of 5 to 18V DC & also ensure compatibility with various power source.
- High Accuracy: It also provide accurate flow measurement with an accuracy of ±10%.
- TTL Output: It show outputs flow data in 5V TTL format & provide easy interfacing with microcontrollers\\.
- Wide Flow Rate Range: Measures flow rates from 1 to 30 liters per minute, offering versatility in applications.
- Durable Construction: Designed for durability with a minimum of 300,000 cycles, ensuring long-term reliability.
- Temperature and Pressure Resistant: Works effectively in temperatures ranging from -25 to +80℃. And it can also handle water pressure up to 2.0 MPa.
Specification
| Specification | Details |
|---|---|
| Model | YF-S201 |
| Sensor Type | Hall Effect |
| Working Voltage | 5 to 18V DC (min tested working voltage 4.5V) |
| Max Current Draw | 15mA @ 5V |
| Output Type | 5V TTL |
| Working Flow Rate | 1 to 30 Liters/Minute |
| Working Temperature Range | -25 to +80℃ |
| Working Humidity Range | 35% – 80% RH |
| Accuracy | ±10% |
| Maximum Water Pressure | 2.0 MPa |
| Output Duty Cycle | 50% ±10% |
| Output Rise Time | 0.04us |
| Output Fall Time | 0.18us |
| Flow Rate Pulse Characteristics | Frequency (Hz) = 7.5 * Flow rate (L/min) |
| Pulses per Liter | 450 |
| Durability | Minimum 300,000 cycles |
| SKU | RW-391 |
