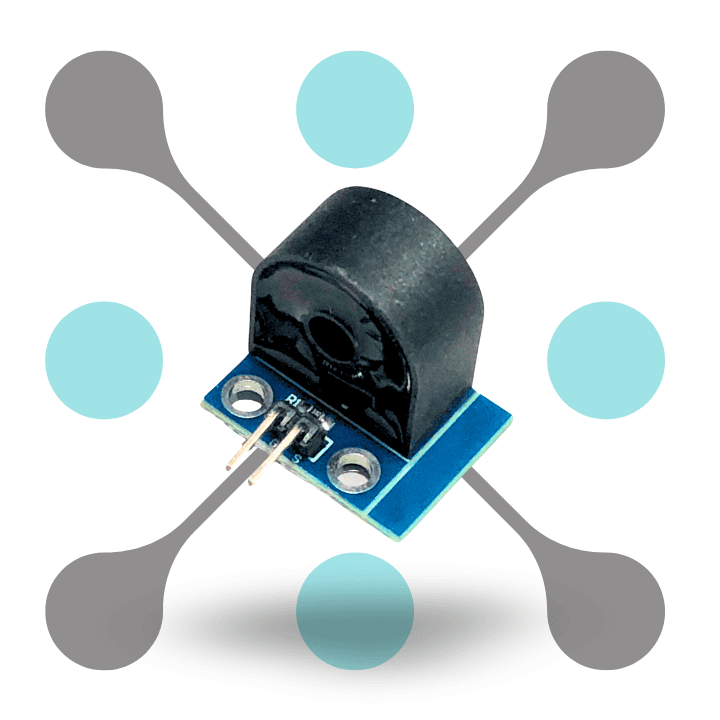

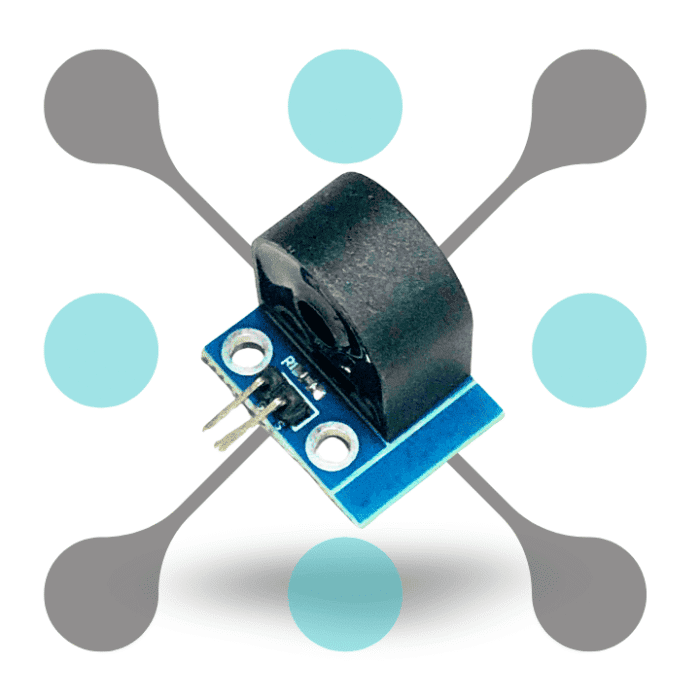

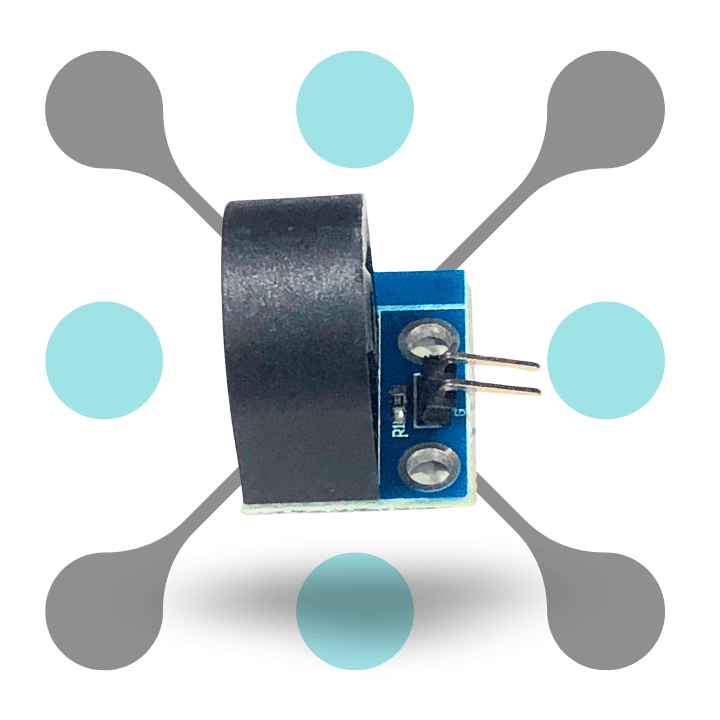

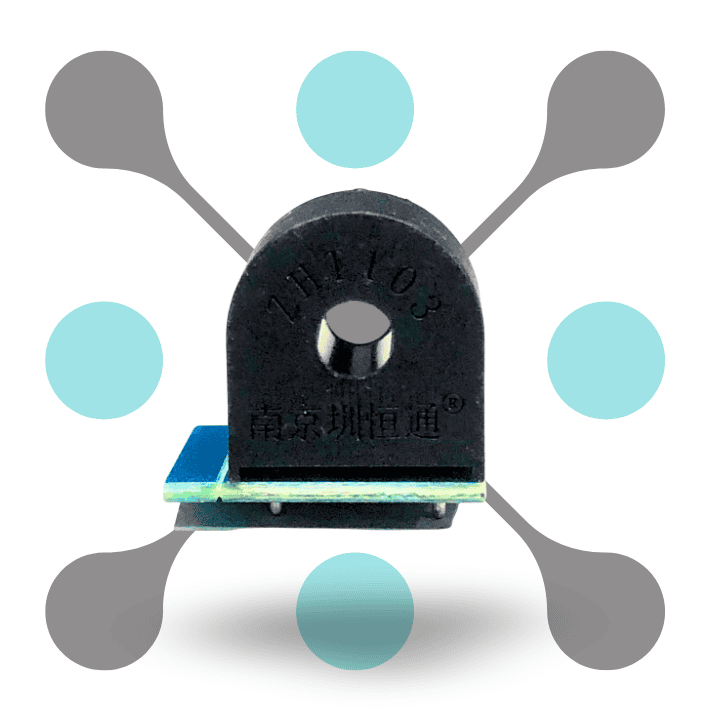

Overview of this 5A Single Phase AC Current Sensor
The 5A Single Phase AC Current Sensor Module is a reliable and efficient solution for measuring AC currents up to 5A in single-phase systems. It provides precise and real-time data, making it suitable for applications such as power monitoring, circuit protection, and energy management. This sensor is easy to interface with microcontrollers, allowing seamless integration into various projects.
The Single Phase 5A AC Current Sensor features a compact design and straightforward operation for user convenience. It offers a low-noise output, ensuring stable and consistent readings for accurate current monitoring. The module’s adjustable sensitivity allows you to tailor the sensor’s performance to your specific needs, providing flexibility across different applications.
The Single Phase AC Current Sensor is a cost-effective and versatile choice for a wide range of projects. Its durable construction ensures long-lasting performance and reliability even in demanding environments. Choose the AC Current Sensor Single Phase module for precise current sensing and monitoring in your projects, whether for professional or DIY purposes.
Features
- Current sensing capability: The 5A Single Phase AC Current Sensor Module measures AC currents up to 5A. This makes it suitable for monitoring electrical current in various low-current applications.
- Analog output: The sensor offers an analog voltage output that is proportional to the AC current flow. This allows for precise monitoring and measurement of current in your projects.
- Isolation: The module provides electrical isolation between the input and output, enhancing safety. This protects the connected circuits and components from high voltages.
- Low noise and high accuracy: The sensor delivers low noise output and high accuracy, providing reliable and stable current measurements. This precision is essential for accurate data analysis and monitoring.
- Compact design: Its compact size and lightweight build make it easy to integrate into different projects and setups. This is useful for space-constrained applications and portable projects.
- Fast response time: The sensor quickly reacts to changes in current flow, providing immediate feedback. This fast response is crucial for real-time monitoring and control.
- User-friendly interface: The module is easy to connect and use, featuring straightforward wiring and connections. This ensures smooth integration with microcontrollers like Arduino and other platforms.
Specification
| Specification | Details |
|---|---|
| Current Range | ±5A |
| Output Type | Analog voltage output |
| Output Sensitivity | Around 1 V/A |
| Device Bandwidth | Around 20 kHz |
| Response Time | <1 ms |
| Accuracy | ±1% full scale |
| Power Supply | 5V DC |
| Load Resistance | 10 kΩ |
| Isolation Voltage | 2500 V RMS |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Housing Material | UL94-V0 flame-retardant plastic |
| SKU | RW-180 |
