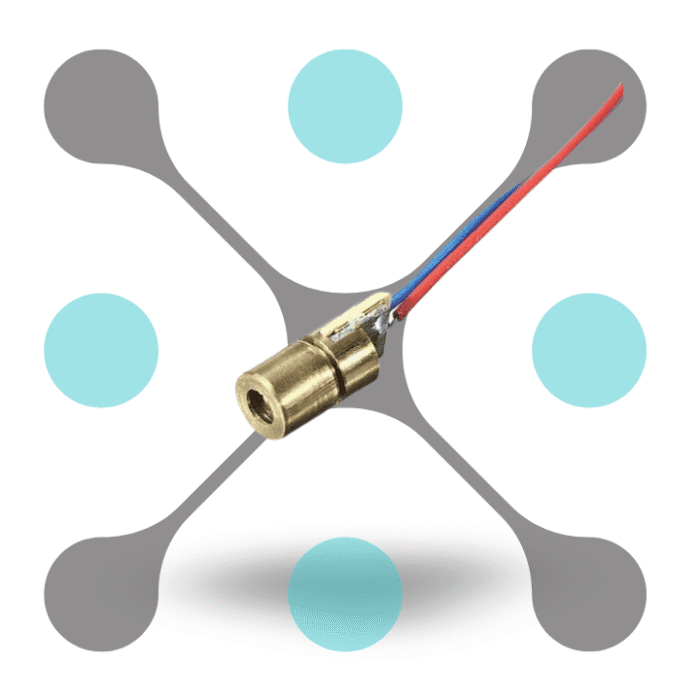

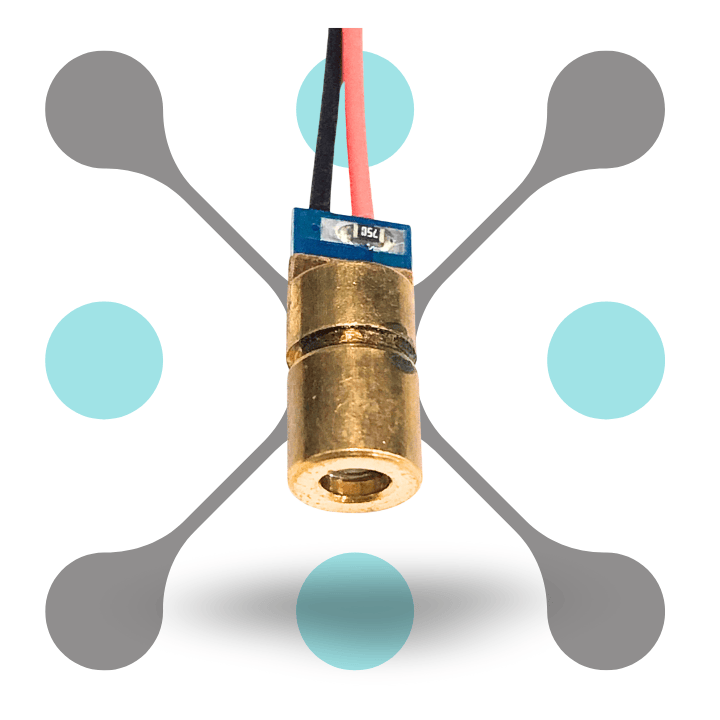

650nm 6mm 5V DC 5mW Mini Laser Dot Diode Module

Overview of this 650nm 6mm 5V DC 5mW Mini Laser Dot Diode

Introducing the roboway 650nm 6mm 5V DC 5mW Mini Laser Dot Diode at the best price in India with Roboway. This laser module comes in a small 6mm diameter metal housing and making it easy to fit into compact electronic or DIY projects without adding bulk. It operates directly on 5V DC and making it compatible with most microcontroller boards like Arduino, Raspberry Pi, or battery-powered circuits.

It gives efficient performance with only 5mW power output, ensuring safety in basic applications while still providing a clear and focused laser point. It Built-in laser diode and driver circuit in one module and there are no need for external drivers or complex wiring. Just connect VCC and GND and you’re good to go.

Features

Compact 6mm Diameter Design – Module comes in small size for makes it perfect for space-limited DIY or embedded projects.

650nm Red Laser Output – Emits a bright red dot that’s easy to see and ideal for pointing or marking.

5V DC Operating Voltage – It can be powered directly using common 5V sources like Arduino or USB power.

Low Power Consumption (5mW) – Uses very little power, making it efficient and safe for continuous use.

Built-in Focus Lens – It helps produce a sharp and consistent laser dot for better precision.

Pre-soldered Wires – Comes with attached wires, so you can use it immediately without soldering.

Specification

Wavelength: 650nm (red)

Output Power: 5mW

Operating Voltage: 5V DC

Operating Current: Less than 40mA

Laser Shape: Dot

Beam Diameter: 6mm

Material: Brass body

Lens: High-quality glass lens

Focus: Fixed focus

Working Temperature: -10°C to 40°C

Dimensions: 6mm (diameter) × 12mm (length)

Wire Length: Approx. 135mm

Life Span: More than 5000 hours

Operating Distance: Up to 100 meters (depends on environment)

Applications: Suitable for positioning, laser toys, DIY tasks, and educational use

SKU: RW-114
