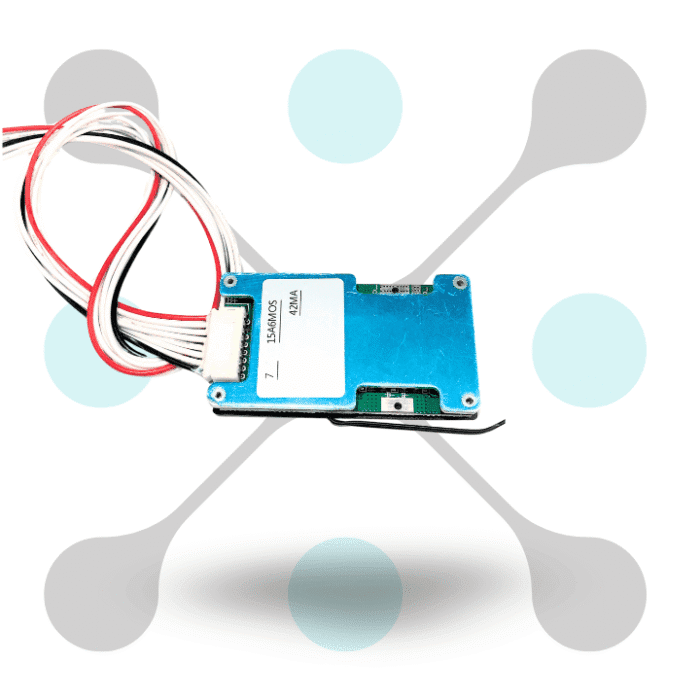

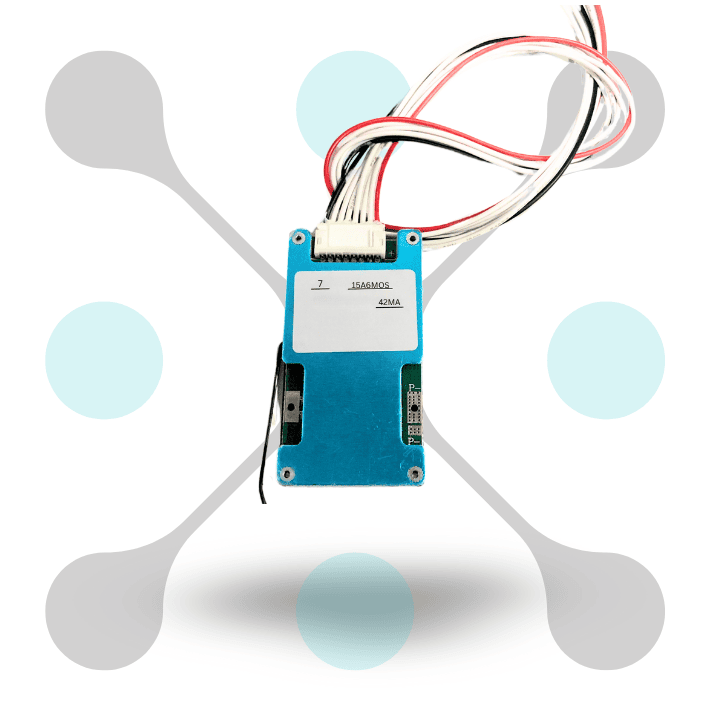

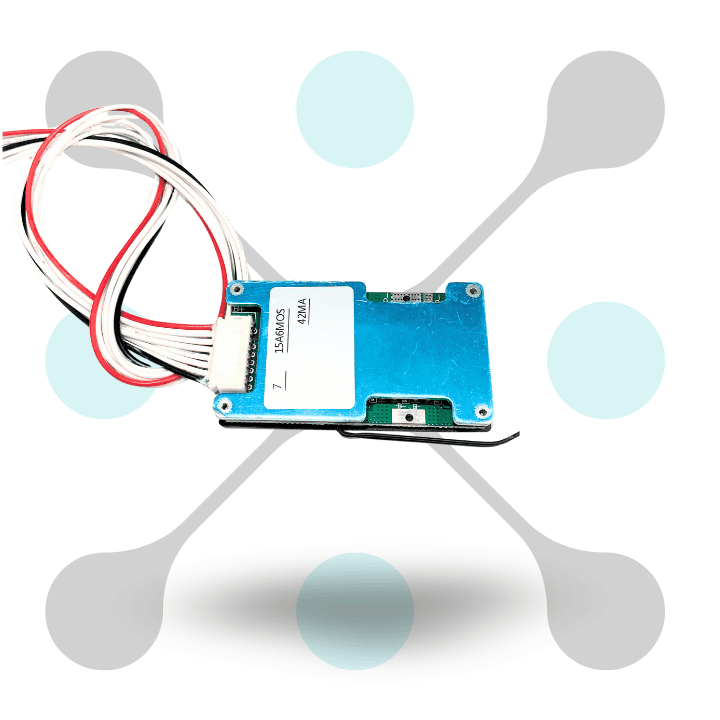

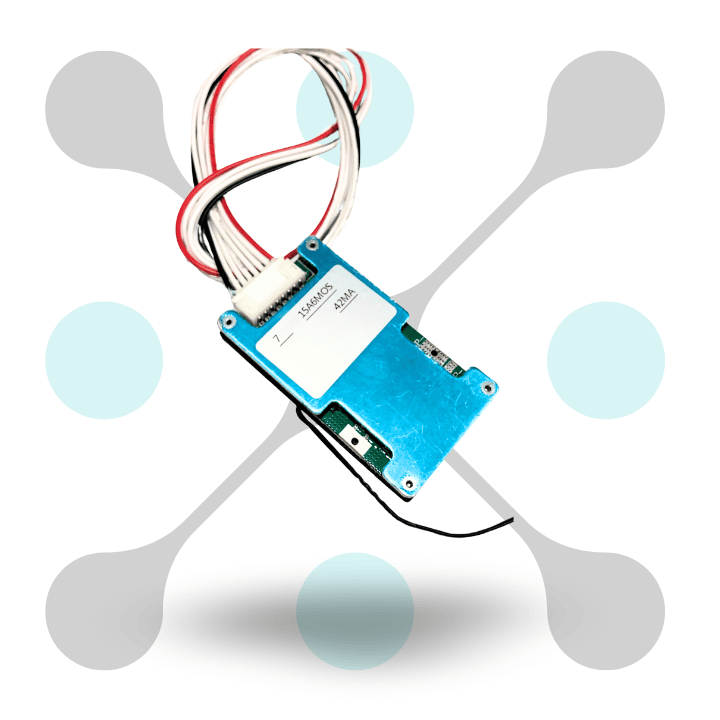

Overview of this 7S 15A 6MOAS 18650 battery charging board
Introducing the 7S 15A 6MOAS 18650 battery charging board with ntc temperature protection at best price. It is specially design for efficient and reliable battery management. This 7S 15A 6MOS BMS Lithium 18650 Battery Charging Board provide high performance and durability. It ensures your lithium battery charge safely and evenly & extend their life. Enhance your power management with this advanced charging solution.
The 7S 15A 6MOS Battery Charger with NTC Temperature Protection features robust safety measures. Its built-in NTC temperature sensor prevents overheating for secure operation. This 7S 15A 6MOS BMS board is perfect for applications needing stable and safe power supply. Rely on its precision and reliability for optimal battery performance.
Upgrade your charging setup with the 7S 15A 6MOS BMS Lithium 18650 Battery Charging Board. The 6MOS design ensures efficient current distribution and protection. This board’s intelligent balancing feature charges each cell evenly and safely. Trust this high-performance BMS board for your battery charging needs.
Features
- 7-Series Battery Support: Manages 7-series lithium-ion batteries for enhanced performance and reliability. Ensures safe and efficient charging cycles.
- 15A Continuous Current: Handles up to 15A continuous discharge current for moderate power applications. Provides stable power management for various devices.
- 6 MOSFET Configuration: Incorporates 6 high-quality MOSFETs for efficient switching and thermal performance. Reduces energy loss and improves overall efficiency.
- Cell Balancing Feature: Automatically balances cell voltages for longer battery lifespan. Prevents individual cell overcharging and over-discharging.
- NTC Temperature Protection: Equipped with NTC thermistor for accurate temperature monitoring and safety. Protects the battery from overheating and damage.
Specification
| Specification | Description |
|---|---|
| Battery Type | Lithium 18650 |
| Battery Series | 7S (7 series) |
| Rated Current | 15A |
| MOSFETs | 6 MOSFETs |
| Overcharge Protection | 4.25V ± 0.05V per cell |
| Overdischarge Protection | 2.8V ± 0.05V per cell |
| Overcurrent Protection | 15A ± 2A |
| Short Circuit Protection | Yes (Auto recovery after load removal) |
| Balancing Current | 30mA ± 5mA |
| Equalization Voltage | 4.2V ± 0.05V per cell |
| Temperature Protection | NTC temperature sensor included |
| Temperature Range | -30°C to 80°C |
| Self-Consumption | ≤30µA |
| Dimensions | 65mm x 48mm x 10mm (L x W x H) |
| Weight | Approximately 45g |
| Operating Humidity | 0% to 95% RH |
| Charging Voltage | 29.4V ± 0.05V |
| PCB Material | High-quality FR-4 epoxy glass substrate |
| Mounting | Screw holes provided for easy mounting |
| SKU | RW-615 |
