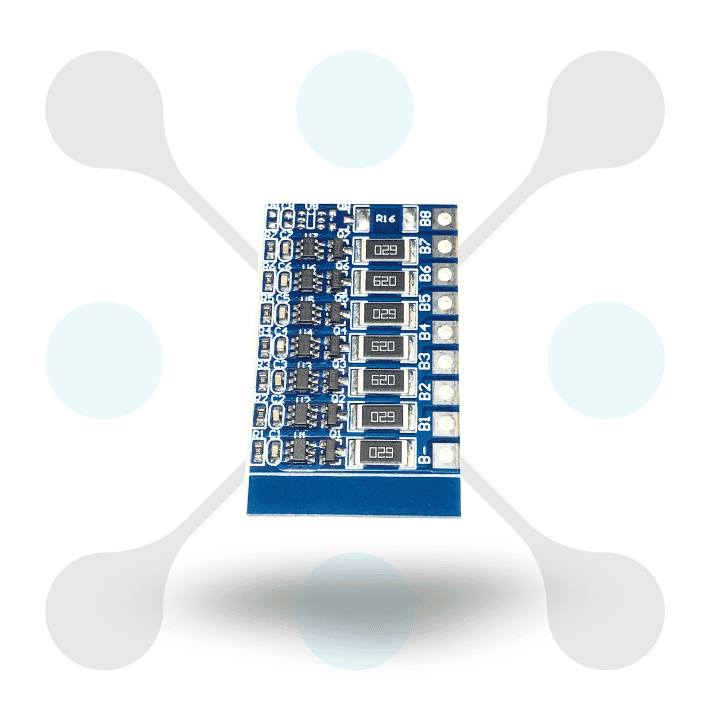

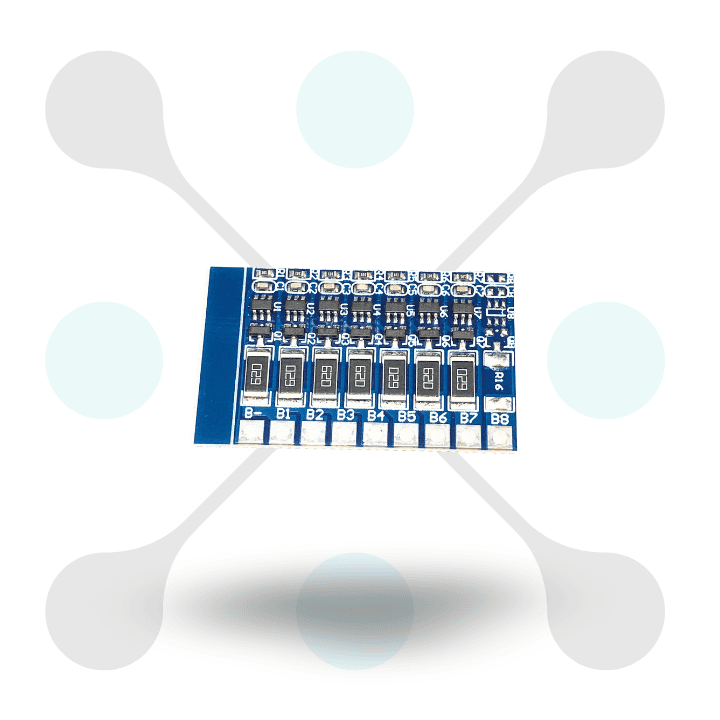

7S 25.9V 18650 Lithium Battery Equalizer Board

Overview of this 7S 25.9V 18650 Lithium Battery Equalizer Board

Introducing Roboway 7S 25.9V 18650 Lithium Battery Equalizer at best price in India with Roboway. This 7S Lithium Battery Equalizer ensure that all cell in the 7S configuration charge and discharge uniformly. It help optimize the performance and long life of your 7S 18650 Battery pack. Ideal for high-power applications, this equalizer maintains the safety and efficiency of your battery system.

This 18650 Lithium Battery Equalizer 7S is important to prevent overcharging or deep discharging of individual cell. It enhance the stability and lifespan of lithium battery pack & ensure balanced charging. With its compact and efficient design, this board fit easily into custom 7S battery system. Use the 7S 25.9V 18650 Lithium Battery Equalizer for reliable and safe battery management in your projects.

Features

Supports 7S Battery Pack (25.9V Nominal Voltage) – This board is specially designed for a 7-cell series lithium battery pack, making sure all 7 cells work together smoothly.

Balances Battery Voltage Automatically – It helps equalize the voltage between cells, so no single cell gets overcharged or undercharged, increasing battery performance.

Improves Battery Life – By keeping all cells balanced, it reduces stress on the batteries and helps them last much longer.

Prevents Capacity Loss – If one cell gets weaker, it can affect the whole battery pack. This board minimizes that issue by balancing cell power.

Simple Plug-and-Play Connection – It easy to install with the balance wires of the battery pack, no complicated setup is required.

Specification

Number of Cells: 7 cells (3.7V each)

Nominal Voltage: 25.9V

Max Voltage: 29.4V (4.2V per cell)

Battery Type: 18650 Li-ion

Balancing Current: 20mA per cell

Board Size: Approx. 90mm x 50mm

Overvoltage Protection: Yes (4.2V per cell)

Undervoltage Protection: Yes (2.5V per cell)

Discharge Cutoff: 18V (3.0V per cell)

Charging Current: Max 2A

Operating Temperature: -40°C to 85°C

Application: Li-ion battery packs

SKU: RW-482
