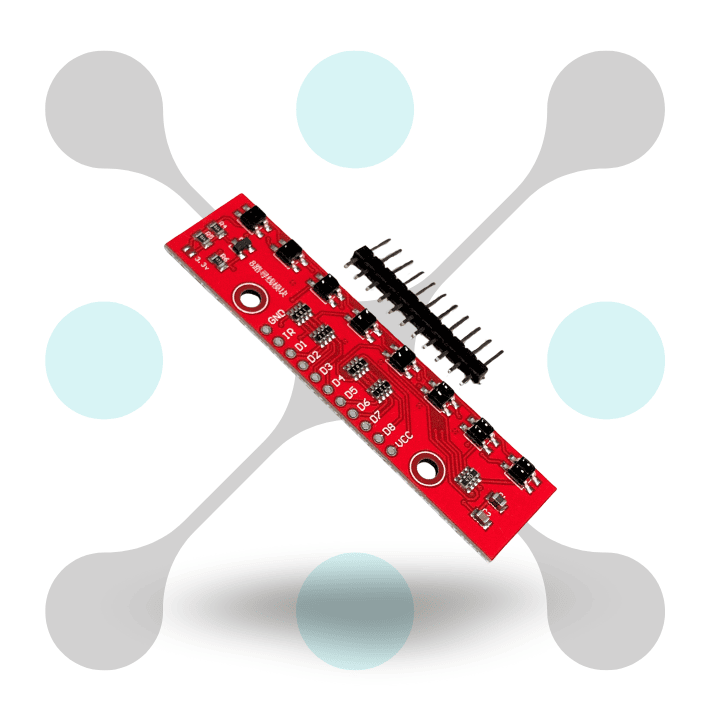

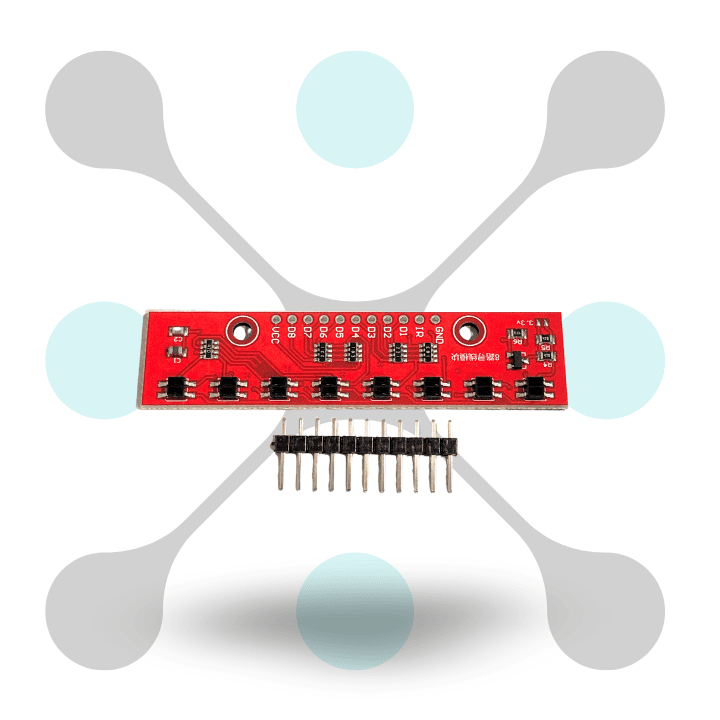

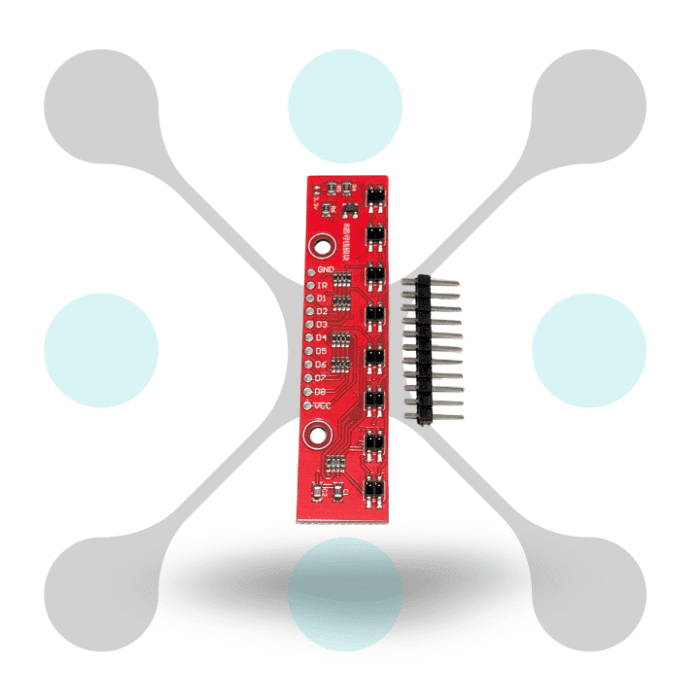

8 Channel Infrared detection Line Tracking 8 WAY IR Sensor

Introducing Roboway 8 channel ir sensor line tracking infrared detection sensor module at best price in India. This line tracking infrared sensor detect black and white surface for accurate movement control. It is mostly used in robotic and automated vehicle, and maze solving project. This module confirms that this is high sensitivity and fast response for smooth navigation.

This IR detector sensor 8 channel features multiple infrared sensors for reliable surface detection. This infrared line detector sensor is compatible with Arduino and microcontroller for easy integration. It gives stable performance in various lighting condition for better tracking accuracy. It is use in  smart robot, industrial automation, and automated guidance system.

Feature

Multi-Channel Tracking: It comes with 8 sensors for accurate line following, even on curves and complex paths.

Adjustable Sensitivity: Fine-tune each sensor to work well in different lighting and surface conditions.

Microcontroller Friendly: It works smoothly with Arduino and other microcontrollers—great for DIY projects.

Dual Output Options: This sensor can supports both analog and digital outputs for flexible data use.

Compact Design: Small and modular—perfect for space-limited robotics projects.

Specification

Sensor Type: Infrared

Channel: 8 Channel

Operating Voltage: Typically 3.3V – 5V

Operating Current: 100mA

Operating Temperature: -10°C to +50°C

Detecting Range: 1 to 60 mm

Output Interface: Multi-wire connection

Output Signal: TTL level or analog

Mounting Hole: Supports common screws

Weight: 5g

SKU: RW-120

Dimenssion : 65*16*4 mm
