Description

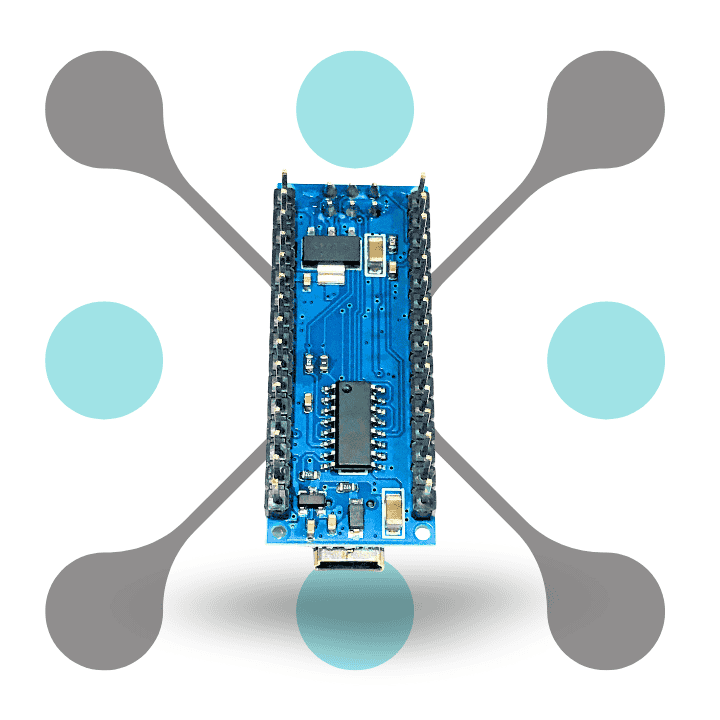

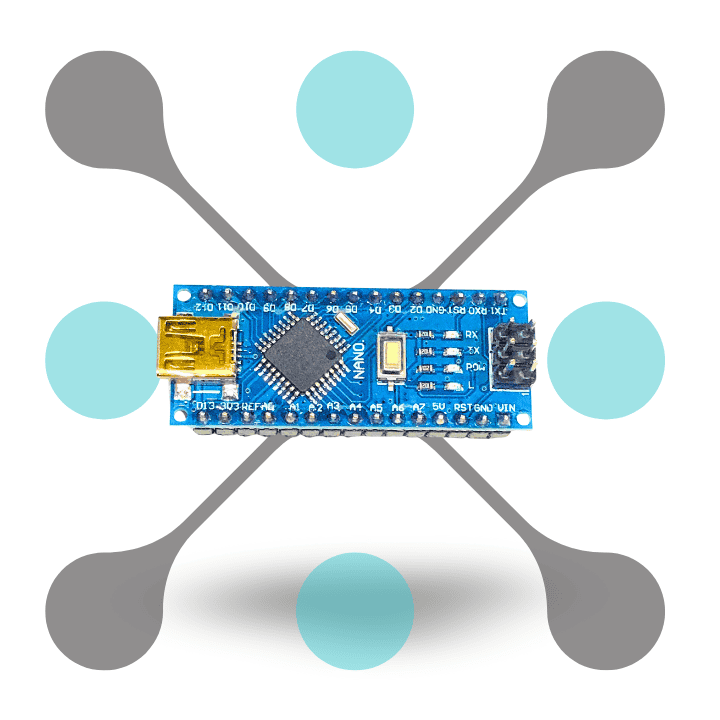

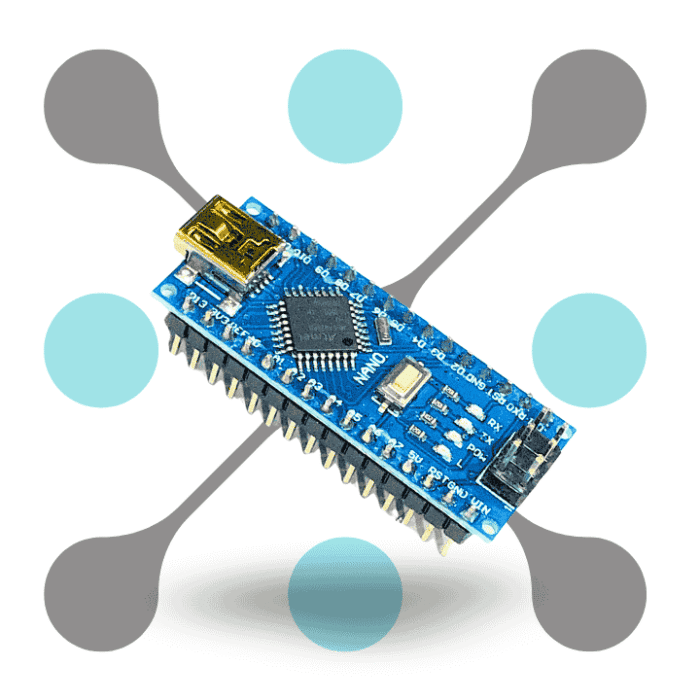

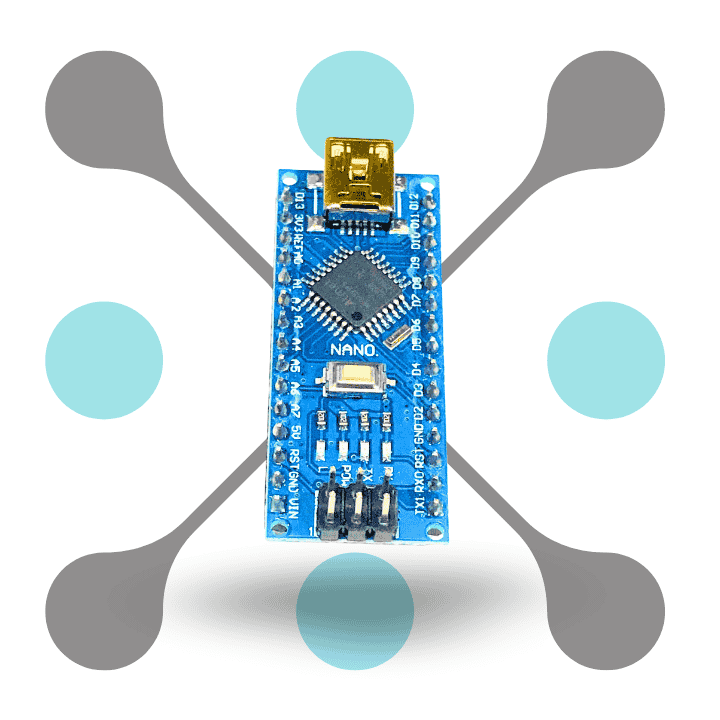

Overview of this Arduino NANO V3.0 Development Board CH340 Compatible
Introducing Roboway Arduino NANO V3.0 Development Board CH340 at best price in India. This Arduino NANO V3.0 Board CH340 Compatible offer all the feature of the original at a budget friendly price. It is also Equipped with the CH340 USB-to-serial chip, it ensure stable communication with your PC. The CH340 compatible Arduino NANO V3.0 Development Board is perfect for beginners and advanced users in electronic.
This Arduino NANO V3.0 Board CH340 Compatible comes fully soldered, ready to use right out of the box. It features a compact design that fits seamlessly into a variety of prototyping boards and projects. This development board supports all Arduino IDE functionalities and libraries. Enhance your development experience with the Arduino NANO V3.0 Development Board CH340, providing versatility and ease of use.
Features
- Compact Design and Form Factor: This Arduino NANO V3.0 Development Board CH340 feature a small size which make it perfect for compact projects. It easily fits into tight spaces, making it ideal for embedded applications.
- CH340 USB-to-Serial Converter: Equipped with a CH340 chip for reliable USB-to-serial communication. Ensures compatibility with most operating systems for seamless programming and data transfer.
- ATmega328P Microcontroller: Powered by the ATmega328P, providing 16 MHz clock speed and 32 KB flash memory. Offers sufficient processing power for a wide range of hobby and professional projects.
- Pre-Soldered Header Pins: Comes with pre-soldered header pins for easy connections to other components. Simplifies prototyping by allowing quick attachment to breadboards and shields.
- Wide Range of I/O Pins: Offers 14 digital I/O pins, 6 analog inputs, and PWM outputs. Supports versatile connectivity and control options for various sensors and modules.
Specification
| Specification | Details |
|---|---|
| Microcontroller | ATmega328P |
| USB to Serial Converter | CH340G |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Digital I/O Pins | 14 (6 PWM outputs) |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 32 KB (ATmega328P) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| USB Connector Type | Mini USB |
| Dimensions | 18 mm x 45 mm |
| Headers | Pre-soldered male headers |
| Supported IDE | Arduino IDE, compatible with Windows, Mac, Linux |
| Board Type | Clone Compatible |
| SKU | RW-008 |
