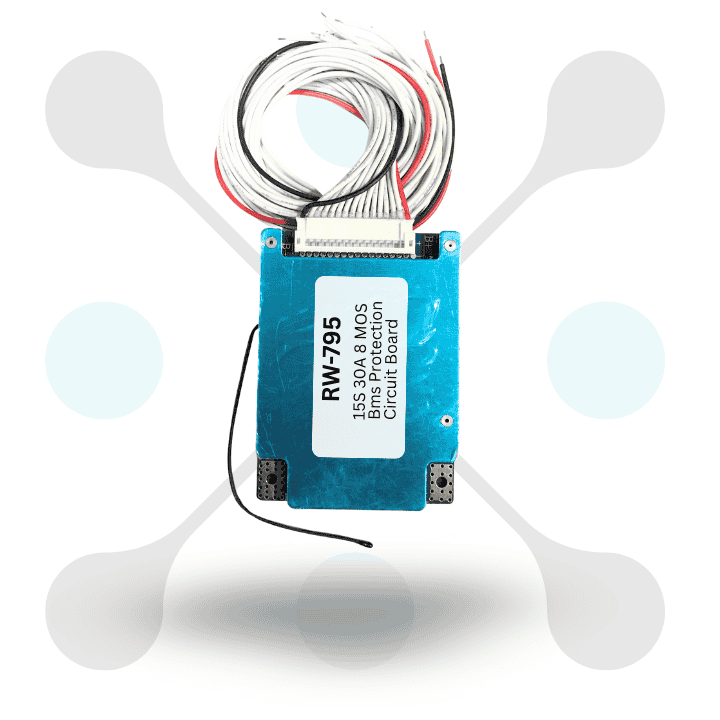

15S 30A 8 MOS PROTECTION CIRCUIT MODULE

The 15S 30A 8 MOS Protection Circuit Module is an essential component designed to ensure the safe and efficient operation of large lithium-ion or lithium-polymer battery packs. Below is a detailed description of this module:

Description: The 15S 30A 8 MOS Protection Circuit Module is a sophisticated electronic control unit engineered to oversee and safeguard battery packs composed of 15 series-connected cells. This module is employed in a wide range of applications, including electric vehicles (EVs), solar energy storage systems, uninterruptible power supplies (UPS), and industrial equipment. Its primary purpose is to monitor and manage the battery’s electrical parameters while protecting it from various potential hazards.

Key Features:

1. 15S Configuration: This protection circuit module is compatible with battery packs containing 15 series-connected cells. It ensures balanced charging and discharging across all cells to prevent overcharging and overdischarging.
2. 30A Current Handling: Capable of handling a continuous discharge current of up to 30 amperes, making it suitable for high-power applications and systems.
3. 8 MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors): Equipped with eight MOSFETs, this module efficiently manages current flow, controls charging and discharging, and safeguards against overcurrent and short-circuit conditions.
4. Battery Protection: Offers comprehensive battery protection, including overcharge protection, overdischarge protection, overcurrent protection, short-circuit protection, and thermal protection. These features prevent damage to the battery pack, mitigate thermal runaway, and reduce the risk of fire hazards.
5. Balancing Function: Monitors individual cell voltages within the battery pack and performs cell balancing to ensure no cell is overcharged or overdischarged, thereby extending the overall battery lifespan.
6. Temperature Monitoring: Integrated temperature sensors help prevent overheating and thermal stress of the battery pack, enhancing safety and reliability.
7. Communication Interface: Some models may include communication interfaces such as UART or SMBus for real-time monitoring and data retrieval, allowing for advanced battery management and remote monitoring.
8. Compact and Durable: Designed to be compact, rugged, and able to withstand various environmental conditions, making it suitable for indoor and outdoor applications.
9. Easy Integration: The module typically comes with connectors and mounting holes for easy integration into battery packs or systems.

Applications:

• Electric vehicles (e.g., electric cars, electric scooters)
• Renewable energy storage systems
• Uninterruptible power supplies (UPS)
• Industrial machinery and equipment
• Robotics and automation systems
• High-power portable devices
• Emergency backup power solutions

The 15S 30A 8 MOS Protection Circuit Module is a critical component for ensuring the safety, longevity, and efficient operation of large lithium-ion or lithium-polymer battery packs in a variety of applications. Its comprehensive protection features, high current handling capability, and advanced management functions make it an essential asset for systems relying on high-capacity battery solutions.
