Overview of this Hi-link B0503S-2WR3 isolated converter

The Hi-link B0503S-2WR3 is a versatile isolated DC to DC converter, specifically designed for efficient power conversion in electronic applications. Focused on precision, this power module seamlessly transforms a 5V input to a stable 3.3V output. And also provide a sooth 2W of power with a maximum output current of 606mA. With advanced technology and a compact design, the B0503S-2WR3 stands as an ideal solution for applications.

As a Hi-link isolated power converter, the B0503S-2WR3 offers a range of features that make it suitable for diverse applications. Boasting an isolation voltage of 1500VDC, this DC to DC converter prioritizes the safety and reliability of connected systems. It also make it best choice for sensitive electronic devices. Whether used in industry automation or embedded systems, And also ensure high performance for modern electronic systems.

The B0503S-2WR3 isolated DC converter from Hi-link is an efficient and trusted solution for precision power conversion in various electronic projects. Its precise transformation from 5V to 3.3V, coupled with a 2W power output and 606mA maximum current. And also make it perfect to power sensors, microcontrollers, and communication modules. This B0503S-2WR3 meets the power conversion needs of diverse applications, ensuring a stable and isolated power supply.

Features

Efficient Voltage Conversion: The Hi-link B0503S-2WR3 stands out for its precise conversion of 5V input to a stable 3.3V output. And also deliver 2W power with a robust 606mA maximum current.
High Isolation Voltage: Prioritizing safety, this DC to DC converter boasts an impressive 1500VDC isolation voltage. And also make it best choice for device with sensitive electronic part and devices.
Compact Design: With a space-saving and efficient design, the B0503S-2WR3 is perfect for projects where size matters. And also ensure smooth power delivery in a compact footprint.
Versatile Applications: From industry automation to embedded systems, this Hi-link power converter caters to various applications. And provide a smooth and trusted power conversion in diverse electronic projects.
Advanced Technology: Equipped with advanced specifications and high isolation capabilities, the B0503S-2WR3 is a dependable solution for precision power conversion in modern electronic systems, ensuring stability and reliability.

Specification

Specification	Value
Input Voltage	5V
Output Voltage	3.3V
Output Power	2W
Maximum Output Current	606mA
Isolation Voltage	1500VDC
Efficiency	Upto 93%
Operating Temperature Range	-40 ~ +85 ℃
Storage Temperature Range	-55 ~ +125 ℃
Dimensions
Weight	50g
Applications	Industry use
Protection Features	Short circuit, over voltage, over current
Certification	Rohs
SKU	RW-DC025

Main use of this hi-link 5V to 3.3V 2W 606mA dc converter

Microcontroller Systems: The Hi-link B0503S-2WR3 is perfect for microcontroller based systems. And also offer a stable 3.3V supply from a 5V source & ensure efficient and smooth operation.
Communication Modules: It is also use for applications with communication modules. This isolated converter also guarantees a safe and stable power source & support smooth communication within electronic devices.
Embedded Systems: It is also use in embedded systems and projects. This B0503S-2WR3 shines & provide precise power conversion in a compact form, meeting the demands of modern electronics and ensuring optimal performance.
Industry Automation: It is also use in industry automation, this converter powers sensors, actuators, and control systems & deliver precise voltage regulation critical for the stability and efficiency of automated processes.
Electronics Prototyping: It is also use as a valuable part for electronics prototyping. This Hi-link B0503S-2WR3 offers a versatile and isolated power solution & cater to a wide range of project and ensure consistent and trsued power delivery.

Input Characteristics of Hi-link B0503S-2WR3 isolated converter

Item	Working conditions	Min.	Typ.	Max.	Unit
Input current (full load/no load)	5VDC Input Series	—	454/5	–/10	m’A
	9VDC Input Series	—	250/5	–/10
	12VDC Input Series	—	186/2	–/5
	15VDC Input Series	—	148/2	–/4
	24VDC Input Series	—	92/1	–/2
Reflection ripple current		—	15	—	m’A
Impulse voltage of Hlk-B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Power supply module	3.3VDC Input Series	-0.7	—	5	VDC
	5VDC Input Series	-0.7	—	9
	9VDC Input Series	-0.7	—	15
	12VDC Input Series	-0.7	—	18
	15VDC Input Series	-0.7	—	21
	24VDC Input Series	-0.7	—	30
Input filter type		Capacitance filter type
Hot plugged		Non-support

Output Characteristics

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Output load of Hlk-B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Power supply module	load percentage		10	—	100	%
Output Voltage Accuracy	See Error Envelope Curve		—	—	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V Input	—	—	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	others	—	—	±1.2	%
Load adjustment rate	10%~100% load	3.3VDC Output	—	18	—	%
		5VDC Output	—	12	—	%
		9VDC Output	—	8	—	%
		12VDC Output	—	7	—	%
		15VDC Output	—	6	—	%
		24VDC Output	—	5	—	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		—	30	80	mVp-p
Temperature Drift Coefficient	Full load		—	—	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery		—
Notes: Ripple and Noise Test Methods Twisted Pair Test Method

Typical Application Circuit of Hi-link B0503S-2WR3 isolated converter

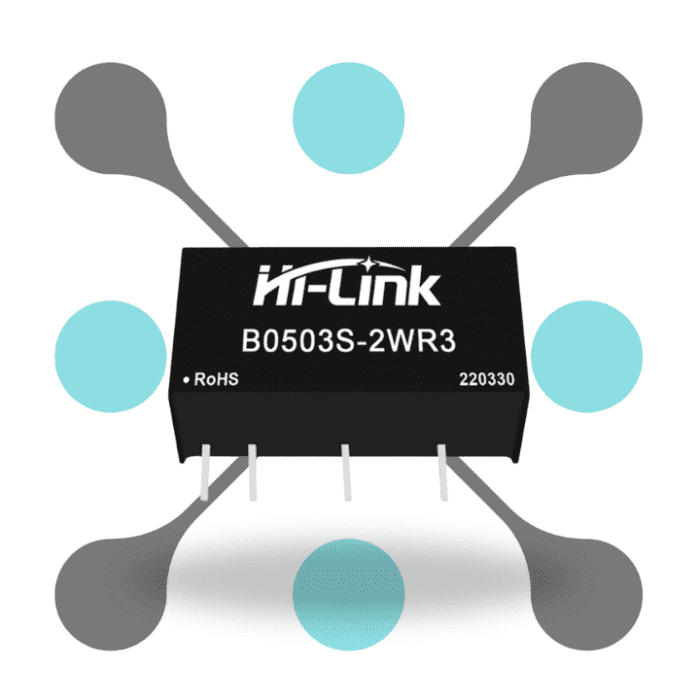

rboway B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Isolation Voltage 1500VDC Power Module Converter

B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Isolation Voltage 1500VDC Power Module Converter

Click to enlarge

Back to products

B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Isolation Voltage 1500VDC Power Module Converter

SKU: RW-DC025

₹126.00 ( Excluding 18% GST )

Input Voltage	5V
Output Voltage	3.3V
Output Power	2W
Maximum Output Current	606mA
Isolation Voltage	1500VDC

In stock

Add to wishlist

Description
Reviews (0)

Specification	Value
Input Voltage	5V
Output Voltage	3.3V
Output Power	2W
Maximum Output Current	606mA
Isolation Voltage	1500VDC
Efficiency	Upto 93%
Operating Temperature Range	-40 ~ +85 ℃
Storage Temperature Range	-55 ~ +125 ℃
Dimensions
Weight	50g
Applications	Industry use
Protection Features	Short circuit, over voltage, over current
Certification	Rohs
SKU	RW-DC025

Item	Working conditions	Min.	Typ.	Max.	Unit
Input current (full load/no load)	5VDC Input Series	—	454/5	–/10	m’A
	9VDC Input Series	—	250/5	–/10
	12VDC Input Series	—	186/2	–/5
	15VDC Input Series	—	148/2	–/4
	24VDC Input Series	—	92/1	–/2
Reflection ripple current		—	15	—	m’A
Impulse voltage of Hlk-B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Power supply module	3.3VDC Input Series	-0.7	—	5	VDC
	5VDC Input Series	-0.7	—	9
	9VDC Input Series	-0.7	—	15
	12VDC Input Series	-0.7	—	18
	15VDC Input Series	-0.7	—	21
	24VDC Input Series	-0.7	—	30
Input filter type		Capacitance filter type
Hot plugged		Non-support

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Output load of Hlk-B0503S-2WR3 5V to 3.3V 2W 606mA DC to DC Power supply module	load percentage		10	—	100	%
Output Voltage Accuracy	See Error Envelope Curve		—	—	±15.0	%
Linear adjustment rate	Input voltage variation ±1%	3.3V Input	—	—	±1.5	%
Linear adjustment rate	Input voltage variation ±1%	others	—	—	±1.2	%
Load adjustment rate	10%~100% load	3.3VDC Output	—	18	—	%
		5VDC Output	—	12	—	%
		9VDC Output	—	8	—	%
		12VDC Output	—	7	—	%
		15VDC Output	—	6	—	%
		24VDC Output	—	5	—	%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak		—	30	80	mVp-p
Temperature Drift Coefficient	Full load		—	—	±0.03	%/℃
Output short circuit protection	Continuous short circuit protection, automatic recovery		—
Notes: Ripple and Noise Test Methods Twisted Pair Test Method
