Description

Overview of this hi-link 5V to 24V 1W 41mA dc-dc converter

Introducing the Hi-link B0524S-1WR3, a compact and efficient DC-DC converter designed for smooth power transformation. With an 88% transfer efficiency, this power module ensures reliable 5V to 24V conversion. And also make it best choice for various electronic applications. Whether you’re working on a small-scale project or need a boost converter for specific need. This Hi-link B0524S-1WR3 also delivers a reliable and energy saving solution.

Engineered for versatility, the Hi-link B0524S-1WR3 stands out as an exemplary DC-DC power module. And also provide a smooth 5V to 24V conversion with precision. With a focus on efficiency, this converter boasts an 88% transfer efficiency. And decrease energy waste and ensure optimal performance in every electronic setup. Trust in the reliability of the Hi-link brand for your power transformation needs.

Upgrade your power supply system with the Hi-link 5V to 24V 1W DC-DC converter, B0524S-1WR3. This compact yet powerful module delivers a steady 24V output, making it perfect for applications requiring a voltage boost. With a focus on reliability and energy efficiency, the Hi-link B0524S-1WR3 is your best choice for a 5V to 24V 1W boost converter. Trust in Hi-link for superior power conversion solutions.

Features

Efficient Power Conversion: The Hi-link B0524S-1WR3 excels with an impressive 88% transfer efficiency. And also ensure a stable 5V to 24V conversion for optimal energy utilization in electronic applications.
Compact and Space-Saving Design: Boasting a compact form factor, this DC-DC converter is ideal for less space setups. And also deliver efficient power transformation without compromising on space.
Versatile Voltage Boosting: Tailored as a 5V to 24V 1W boost converter, the B0524S-1WR3 caters to a variety of electronic applications. And also provide precise and versatile voltage boosting capabilities.
Hi-link Precision Engineering: Benefit from the precision engineering of the Hi-link brand, ensuring a consistent and reliable power supply that meets the high standards of electronic setups.
Energy saving Solution: With a dedicated focus on minimizing energy wastage, this module also ensure an energy saving power transformation, contributing to enhanced performance in diverse electronic systems.

Specification

Specification	Details
Input Voltage	5V
Output Voltage	24V
Power Capacity	1W
Output Current	42mA
Transfer Efficiency	88%
Input-Output Isolation	1000VDC
Operating Temperature Range	-40°C to +85°C
Input Undervoltage Protection	Yes
Overcurrent Protection	Yes
Short Circuit Protection	Yes
Output Ripple and Noise	100mVp-p
Dimensions	11.5mm x 7.5mm x 10.2mm
Weight	1.5g
Certification	RoHS Compliant
MTBF (Mean Time Between Failures)	3.5 million hours
SKU	RW-DC033

Main use of this hi-link 5V to 24V 1W 41mA dc-dc converter

Electronics Prototyping: The Hi-link B0524S-1WR3 is a versatile choice for electronics prototyping. And also ensure a reliable 5V to 24V conversion with its 1W power capacity for DIY projects and experiments.
Low Power Devices: Tailored for low power electronic devices, this DC-DC converter excels to provide a stable 24V output. And also make it best solution for energy saving gadgets with its 88% transfer efficiency.
Compact Gadgets: With its compact design, the B0524S-1WR3 is perfect for space saving applications. And also offer a space saving solution for compact electronic gadgets without loosing on performance.
DIY Electronics Enthusiasts: Ideal for DIY enthusiasts, this converter offers precision and versatility in small scale projects. And also ensure a smooth voltage boost for various electronic creations.
Energy-Efficient Solutions: Embrace energy saving designs with the B0524S-1WR3. It also cater to applications where less power use is important & provide a safe and smooth power source.

Input Characteristics of Hlk-B0524S-1WR3 5V to 24V 1W 42mA DC to DC power supply module

Project name	Working conditions	Unit	Notes
Related input voltage	5	Vdc
Input voltage range	4.5-5.5	Vdc
Maximum input current	≤0.3	A
Reflection ripple current	15	mA	DC5V rated input voltage series
Impulse voltage	≤9	Vdc
Starting voltage	4.5	Vdc
Input undervoltage protection	—	Vdc
Start-up delay	—	ms	Rated input voltage and costant resistance load
Input filter type		Capacitance filter type
Hot plugged		Non-support

Output Characteristics(24v/42mA)

Project name	Technical requirement	Unit	Notes
No load rated output voltage of Hlk-B0524S-1WR3 5V to 24V 1W 42mA DC to DC power supply module	24V±15%	Vdc
Short-time maximum output current	≥42	mA
Rated output current	42	mA
Voltage regulation	±1.5	%
Load regulation	±6	%
Transfer efficiency	Vin=24Vdc, output full load 88	%
Output grain sweep noise(mVp-p)	Pure resistance load, 20MHz bandwidth, peak to peak value	mV
Output over-voltage protection	Outputting the maximum voltage 110-160%	Vdc
Insulation voltage	Input- output, test in 1 minute, leakage current less than 1mA/1500V	–
Insulation resisitance of Hlk-B0524S-1WR3 5V to 24V 1W 42mA DC to DC power supply module	Input- output, insulation volaltge 500VDC/1000MΩ	MΩ
Isolation capacitance	Input- output, 100KHz/0.1V 20pF	–

Application Circuit of Hi-link B0524S-1WR3 dc-dc converter

Relevant Power Module

Hi-link Power Module	Input & output	Current & power	Buy Link
Hilink URB1D12YMD-10WR3 110V to 12V buck converter	110V to 12V	10W 833mA	Buy now
URB2405YMD-10WR3 24v to 5V 10W buck converter	24V to 5V	10W 2A	Buy now
Hi-link URB2405YMD-20WR3 dc-dc power module	24V to 5V	20W 4A	Buy now
Hi-link B0524S-1WR3 dc-dc converter	5V to 24V	1W 42mA	Buy now
Hi link B2405S-1WR3 isolated dc converter	24V to 5V	1W 200mA	Buy now
hi-link K7803-500R3 3.3V isolated dc converter	78V to 3.3V	0.5W	Buy now
Hi-link B2405S-2WR3 isolated dc converter	24V to 5V	2W 400mA	Buy now
Hi-link B2403S-2WR3 isolated dc converter	24V to 3V	2V 666mA	Buy now
Hi-link B1209S-2WR3 isolated dc converter	12V to 9V	2W 222mA	Buy now

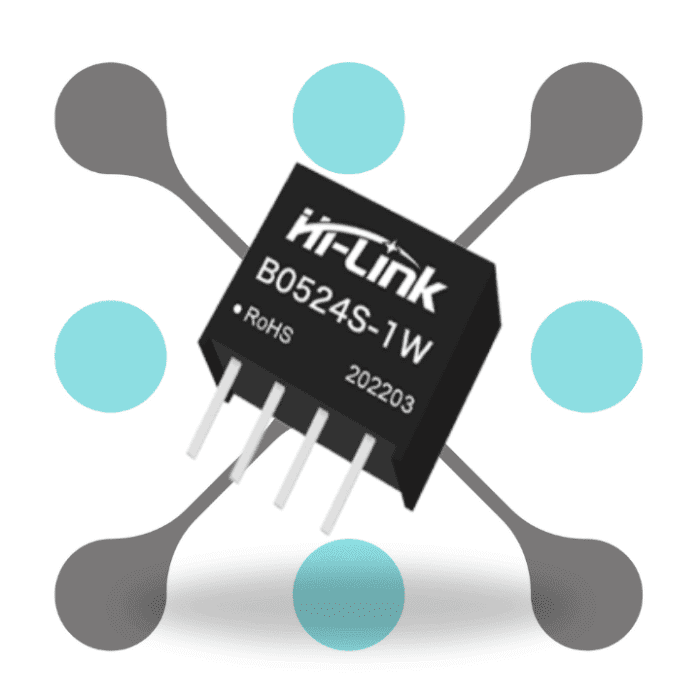

roboway B0524S-1WR3 5V to 24V 1W 42mA DC to DC 88% transfer efficiency power module/converter
