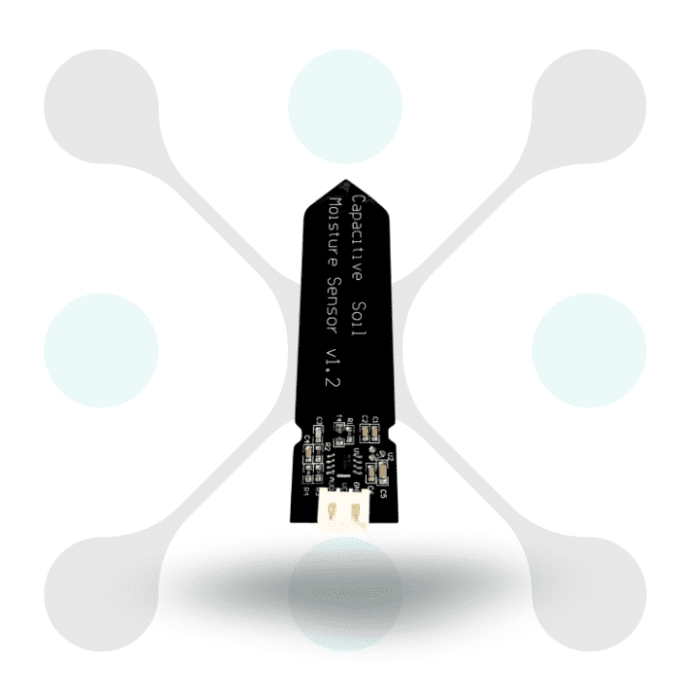

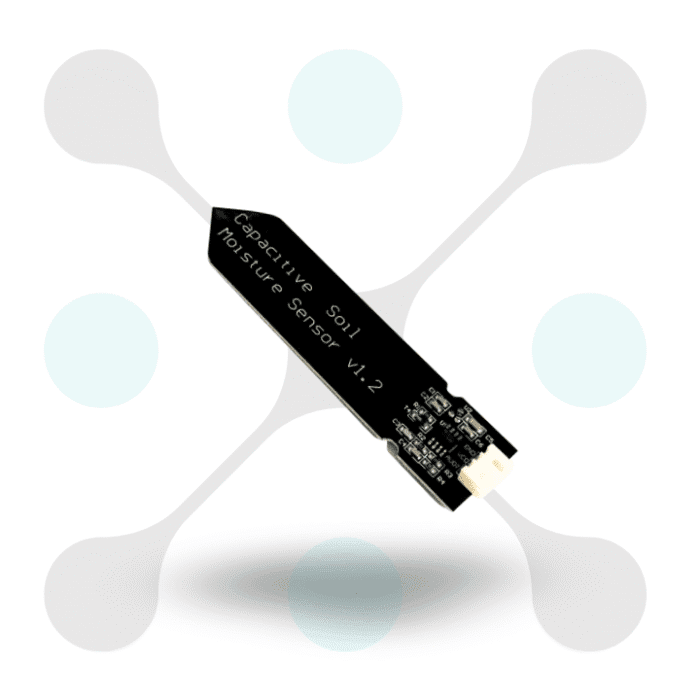

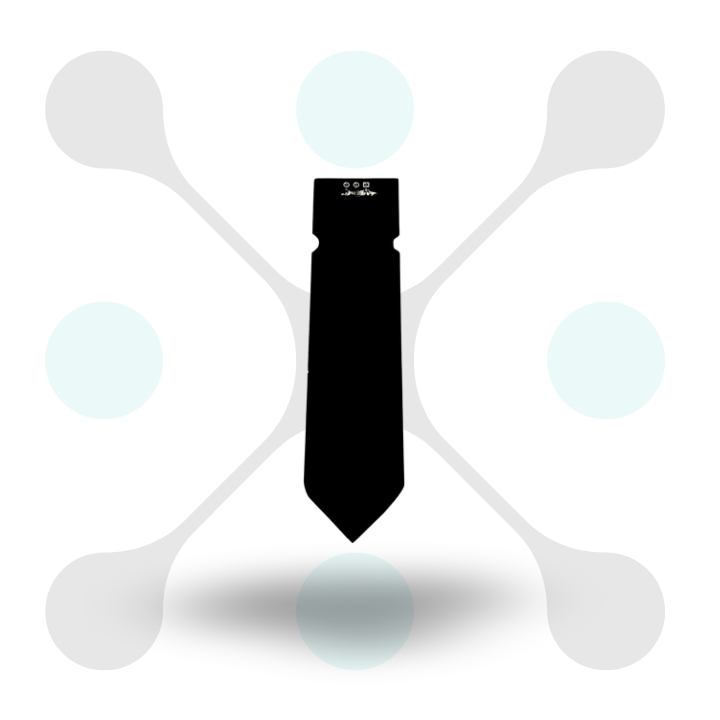

his capacitive soil moisture sensor V2.0 measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data!
This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter.
This soil moisture sensor is compatible with our 3-pin Gravity interface, we can connect to the Gravity I/O expansion shield.
- Arduino IDE V1.6.5
- Supports 3-Pin Gravity Sensor interface
- Analog output
- Garden plants
- Moisture detection
- Intelligent agriculture

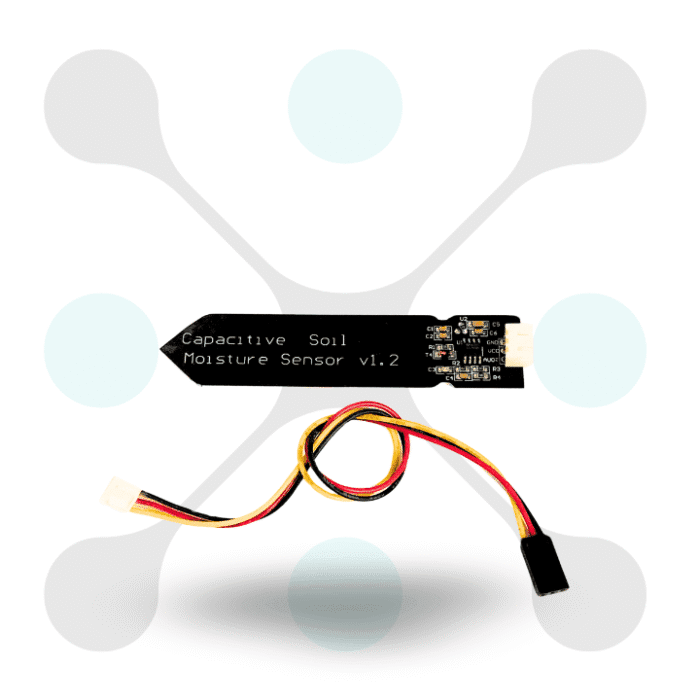

1 x Capacitive Soil Moisture Sensor V2.0
|Operating Voltage||3.3 ~ 5.5 VDC|
|Output Voltage||0 ~ 3.0VDC|
|Dimensions mm(LxWxH)||98 x 23 x 4|
