DC To AC SSR-25DA Solid State Relay Module 3-32 VDC /24-380VAC 25A

318.00 ( Excluding 18% GST )

Model SSR-25DA
Input Voltage 3-32V DC
Output Voltage 24-380V AC
Current Rating 25A
Trigger Current 7.5 mA minimum (at 3V DC input)


In stock


10 People watching this product now!
Description

Description

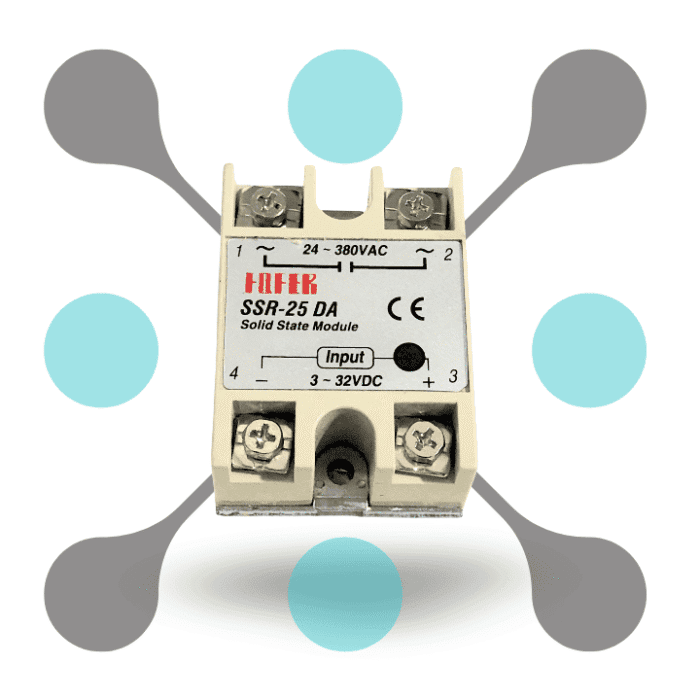

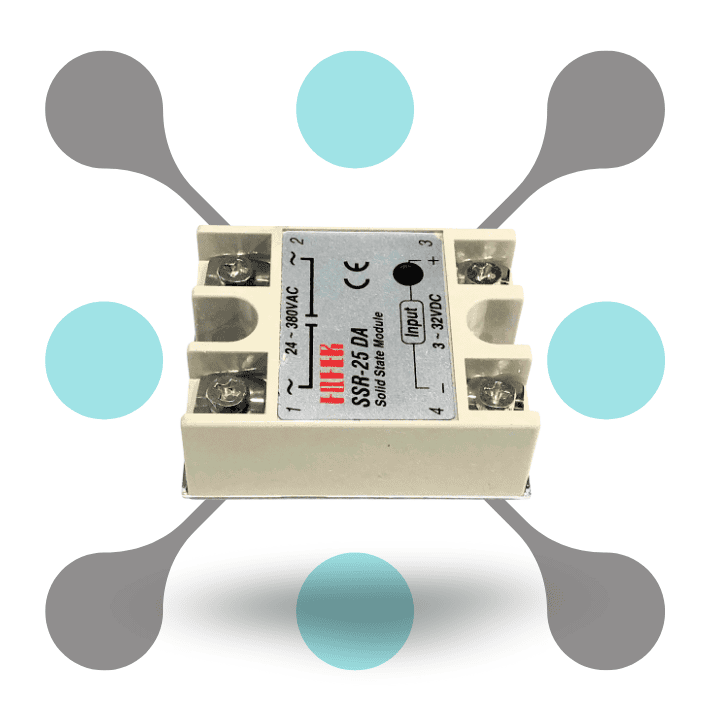

Overview of this DC To AC SSR-25DA Solid State Relay

Introducing roboway DC To AC SSR-25DA Solid State Relay is a high performance module ideal for switching application. This SSR-25DA solid state relay support a DC control voltage of 3-32V and an AC output range of 24-380V with a 25A load capacity. It is designed for efficient and silent switching, it enhance the durability and control of AC powered system.

With this SSR-25DA 3-32 VDC /24-380VAC 25A relay you can manage high power AC device without mechanical wear. This VDC /24-380VAC 25A SSR-25DA relay is perfect for industry automation, heating control, and motor drive.

Features

  • High Power Handling Capacity: This relay support up to 25A at AC voltages from 24 to 380V. This make it perfect to control high power AC load in industry use.
  • Low DC Trigger Voltage: Operates with a 3-32V DC input for control, compatible with microcontrollers. This low trigger voltage allows easy interfacing with Arduino, Raspberry Pi, and PLCs.
  • Noise-Free Switching: Provides silent and arc-free switching, ideal for noise-sensitive environments. It’s perfect for applications where mechanical relay noise is a concern.
  • Long-Lasting Solid-State Design: Built with solid-state technology, ensuring durability and reliable operation. This design reduces wear and extends the relay’s lifespan compared to mechanical relays.

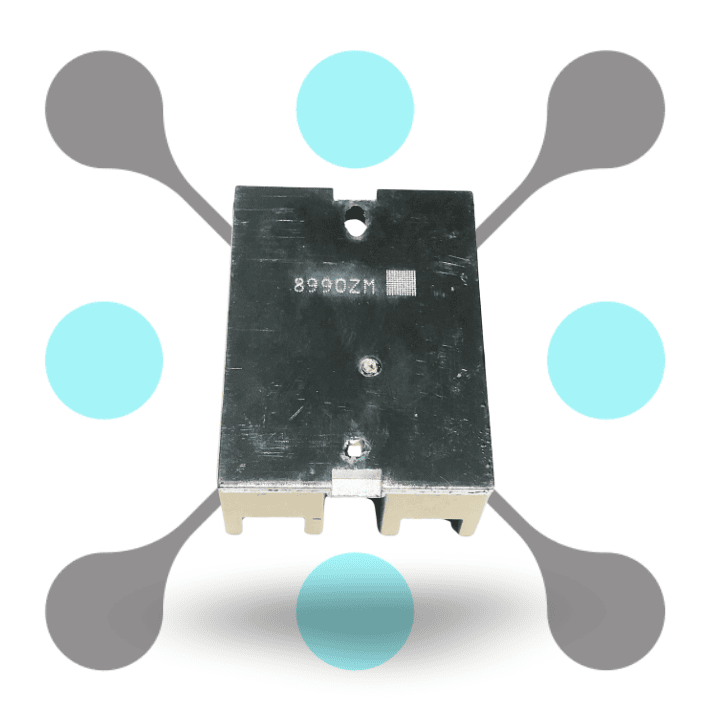

  • Built-In Heat Dissipation Feature: The relay includes a heat-resistant body for efficient heat dissipation. This feature ensures stable operation under continuous or high-current loads.

Specification

Specification Details
Model SSR-25DA
Input Voltage 3-32V DC
Output Voltage 24-380V AC
Current Rating 25A
Trigger Current 7.5 mA minimum (at 3V DC input)
Control Type DC to AC
Switching Method Zero-crossing detection
Response Time ≤10ms
Dielectric Strength 2500V AC between input and output
Mounting Type Panel mount with screw terminals
SKU RW-435
