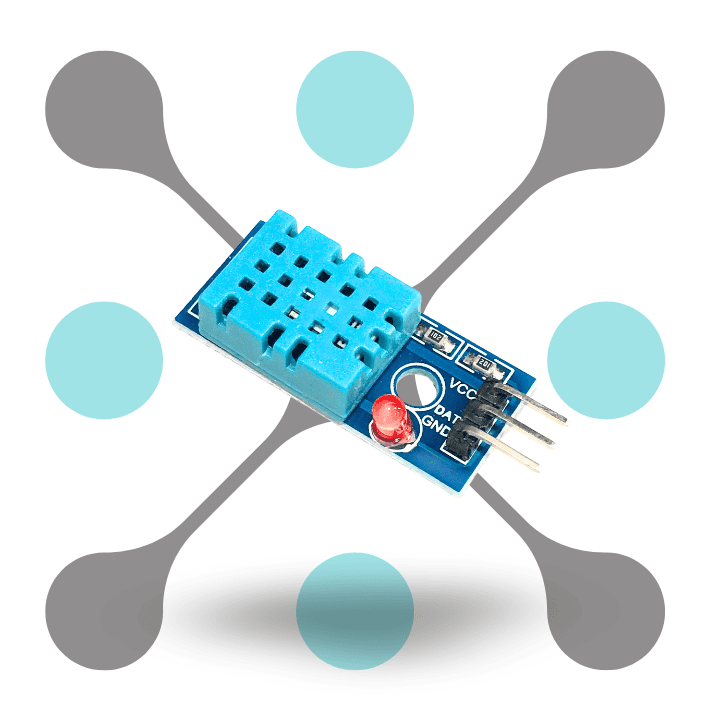

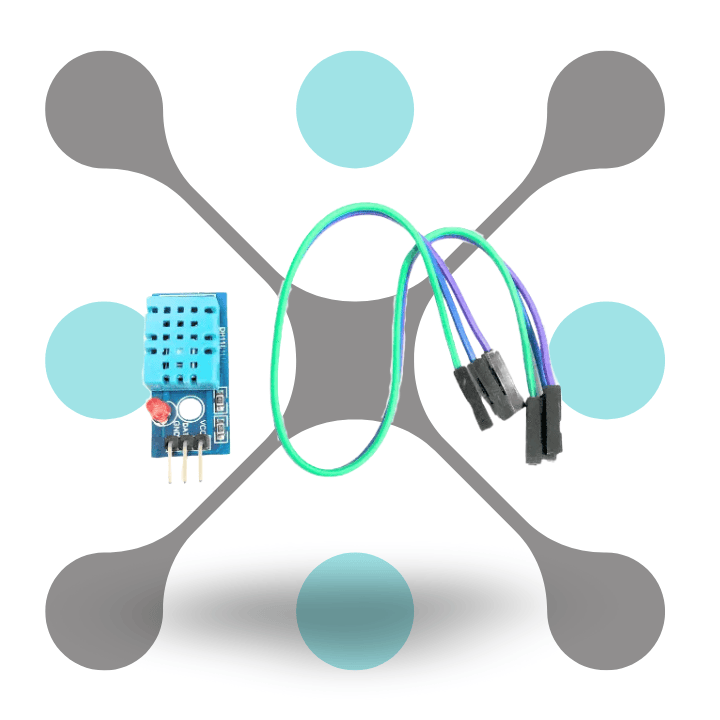

Overview of this DHT11 temperature sensor humidity sensing module with led
Introducing Roboway DHT11 temperature sensor humidity sensing module with LED to measure temperature and humidity in various environment. This compact module feature a DHT11 sensor with built in LED indicator. Which allow for easy integration with your Arduino project.
With a supply voltage range of 3.3 to 5 volts and low power consumption, the DHT11 sensor module is perfect for various application. It also provide accurate temperature measurements from 0 to 50 degrees Celsius with an error of ±2 degrees Celsius. And it also offer humidity measurement within the range of 20% to 95% RH with an error of ±5% RH & make it perfect for monitor environment condition.
It also come with a pre-built 4.7K or 10K resistor for pull up functions. This sensor module also simplify the connection process. Its small form factor and standardized pin spacing make it easy to use and compatible with a wide range of microcontroller platform. You can use it on home automation project or environment monitoring systems for reliable temperature & humidity sensing module.
Features
- Compact Design: The DHT11 Temperature and Humidity Sensor Module with LED features a small form factor And also include a built in LED indicator for easy status monitoring.
- Versatile Power Compatibility: It operate on 3 to 5 volts & offer flexible power supply option. This compatibility ensure easy integration with various microcontroller platforms like Arduino.
- Precise Measurement: With a temperature measurement range of 0 to 50 degrees Celsius and an error of ±2 degrees. It also provide accurate temperature reading & make it perfect for diverse environment monitoring device.
- Humidity Sensing: It is capable to measure humidity within the range of 20% to 95% RH with an error of ±5% RH. This feature allows for precise humidity monitoring in different setting.
- Convenient Connectivity: Equipped with 4 pins with 0.1″ spacing, it offers easy interfacing with external devices. The pre-built 4.7K or 10K resistor simplifies wiring, serving as a pull-up from the data pin to VCC.
- Low Power Consumption: It consumes only 2.5mA maximum current during conversion and 60μA in standby. This energy-efficient operation ensures minimal power consumption, ideal for battery-powered applications.
- Reliable Performance: The sensor module provides reliable readings with 5% accuracy for humidity in the range of 20-80%. With ±2°C accuracy for temperature readings in the range of 0-50°C, it delivers consistent and dependable performance.
Specification
| Specification | Details |
|---|---|
| Input Supply Voltage (VDC) | 3.3 ~ 5 |
| Supply Current (mA) | Measurement: 0.3mA Standby: 60μA |
| Temperature Range | 0~50 degrees Celsius |
| Temperature Error | ±2 degrees Celsius |
| Humidity Range | 20%~95% RH |
| Humidity Error | ±5% RH |
| Power and I/O | 3 to 5V, 4 pins with 0.1″ spacing |
| Built-in Resistor | Pre-built 4.7K or 10K resistor |
| Maximum Current Use | 2.5mA during conversion (requesting data) |
| Humidity Accuracy | 5% accuracy for 20-80% humidity readings |
| Temperature Accuracy | ±2°C accuracy for 0-50°C temperature readings |
| SKU | RW-46 |
