Description
Overview of this dm542 digital stepper motor driver

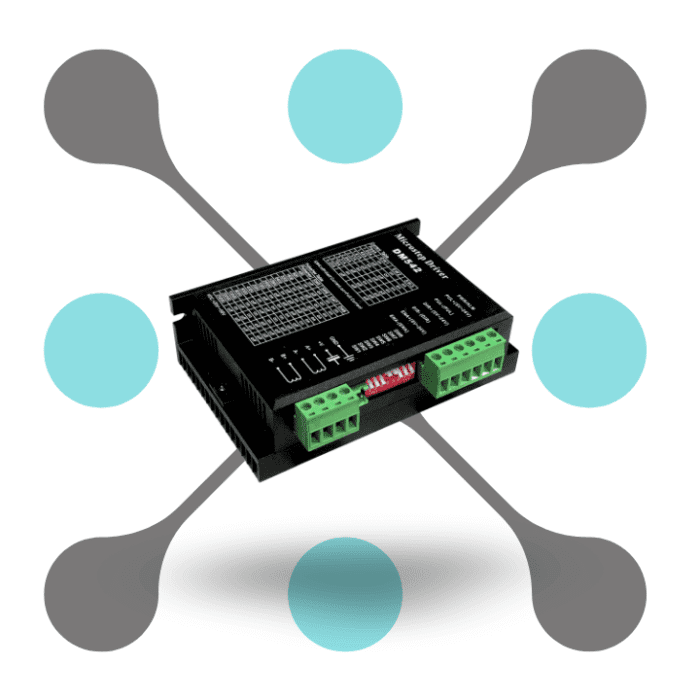

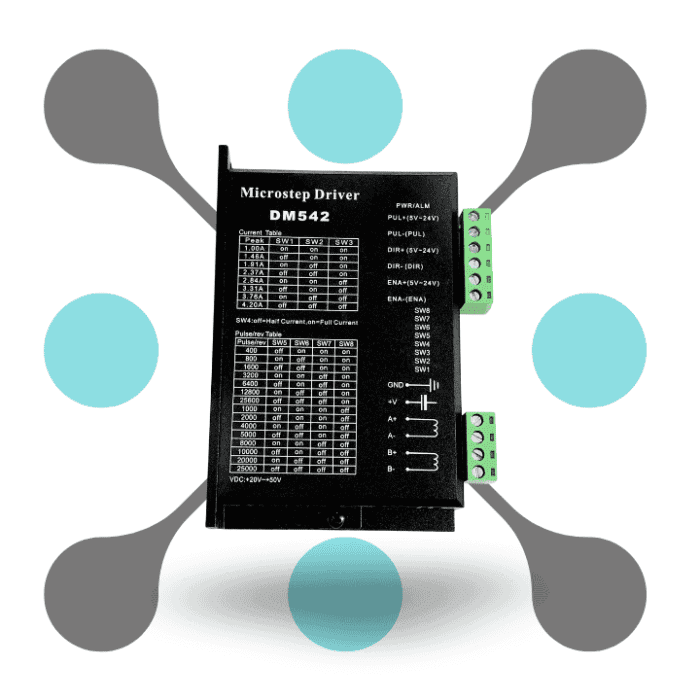

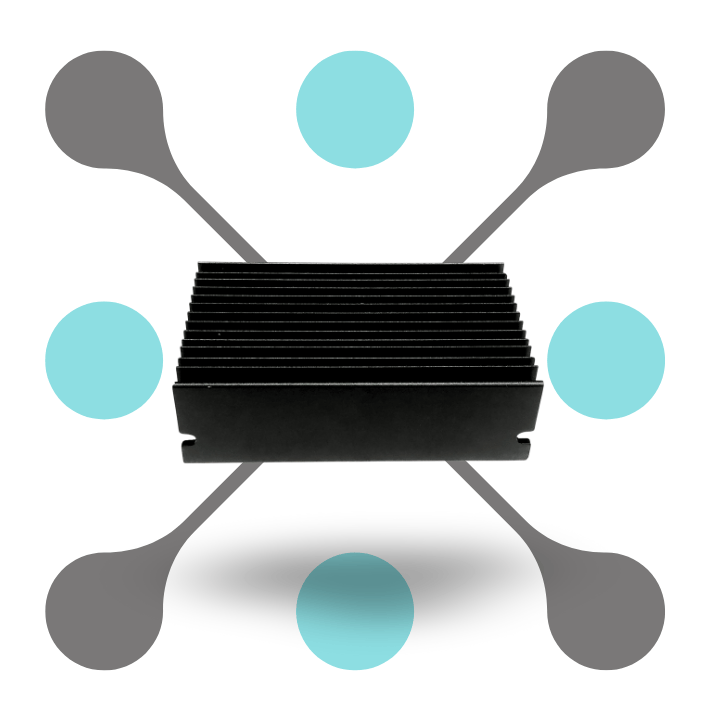

Introducing the Roboway DM542 Digital Stepper Motor Driver, the perfect solution for CNC drivers and 3D printer accessories. This advanced DM542 stepper motor driver utilizes the latest DSP control algorithm, ensuring optimal torque and eliminating mid-range instability. Designed for high performance, it operates at a 20KHz chopping frequency, significantly reducing noise and heat compared to traditional analog drives.
The DM542 Motor Driver for CNC Drivers Controller features motor auto-identification and parameter auto-configuration for quick and seamless setup. Its optical isolation signal input and adjustable output current DIP switch provide superior control and flexibility. Compatible with NEMA 17 and NEMA 23 stepper motors, it supports two-phase four-wire, six-wire, and eight-wire configurations. The driver’s bipolar constant current chopping method ensures smoother movement and precise control.
Roboway’s DM542 stepper motor controller is built to handle demanding applications with ease. With a power supply range of DC 24-60V and a maximum current output of 4.5A, it delivers reliable and consistent performance. Its compact size and robust design make it ideal for a variety of high-requirement projects. Enhance your CNC and 3D printing capabilities with the DM542 Digital Stepper Motor Driver from Roboway.
Feature
Here are seven main features of the DM542 Digital Stepper Motor Driver for CNC Drivers Controller 3D Printer Accessories:
- Advanced DSP Control Algorithm Utilizes an advanced DSP control algorithm for enhanced system smoothness and optimal torque. This reduces mid-range instability for precise motor control.
- Motor Auto-Identification and Parameter Auto-Configuration Features auto-identification and parameter auto-configuration for quick setup with different motors. This ensures optimal performance without manual adjustments.
- Low Noise and Heat Generation Operates with significantly lower noise and heat compared to traditional analogue drives. This enhances the longevity and reliability of the motor.
- High Segmentation Capability Supports high segmentation levels of up to 256, offering precise control over motor movements. This makes it ideal for applications requiring fine resolution.
- Optical Isolation Signal Input Includes optical isolation signal input for better noise immunity and signal integrity. This ensures reliable performance in noisy environments.
- Adjustable Output Current Features an adjustable output current via DIP switches, allowing customization from 1.5A to 4.5A. This flexibility makes it compatible with a variety of stepper motors.
- Wide Power Supply Range Operates within a wide power supply range of DC 24-60V, accommodating various power requirements. This versatility makes it suitable for different CNC and 3D printing applications.
Specification
| Specification | Description |
|---|---|
| Control Algorithm | Advanced DSP control |
| System Smoothness | Optimal torque, nulls mid-range instability |
| Motor Auto-identification | Yes |
| Parameter Auto-configuration | Yes |
| Noise Level | Lower noise compared to traditional analogue drives |
| Heating | Lower heating compared to traditional analogue drives |
| Movement | Smoother movement |
| Compatibility | NEMA 17 and NEMA 23 stepper motors |
| Chopping Frequency | 20KHz |
| Signal Input | Optical isolation |
| Output Current | Adjustable via DIP switch |
| Chopping Method | Bipolar constant current |
| Segmentation | 2, 4, 8, 16, 32, 64, 128, 256, 5, 10, 25, 50, 125, 200 |
| Signal Compatibility | TTL input signal compatible, accepts differential signal input |
| Motor Compatibility | 57 series 4.5A or less, two-phase four-wire, six-wire, eight-wire stepper motor |
| Power Supply | DC 24-60V |
| Current Maximum | 4.5A |
| Output Phase Current | 1.5A-4.5A |
| Logic Input Current | 10-20mA |
| Operating Temperature | -15°C to +45°C |
| Size | 11.7 x 8.5 cm (4.61 x 3.35 inches) |
| SKU | RW-1023 |
