Description
Overview of this dp50v5a adjustable power supply programmable module

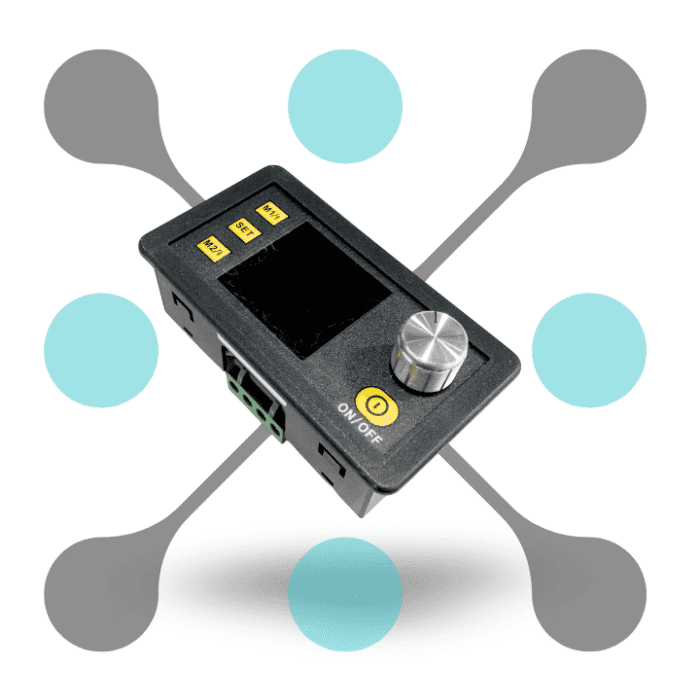

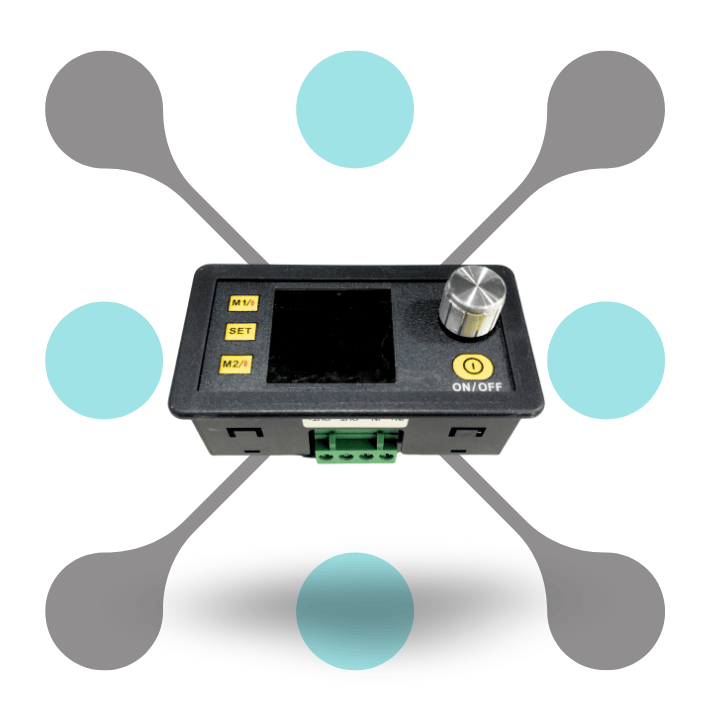

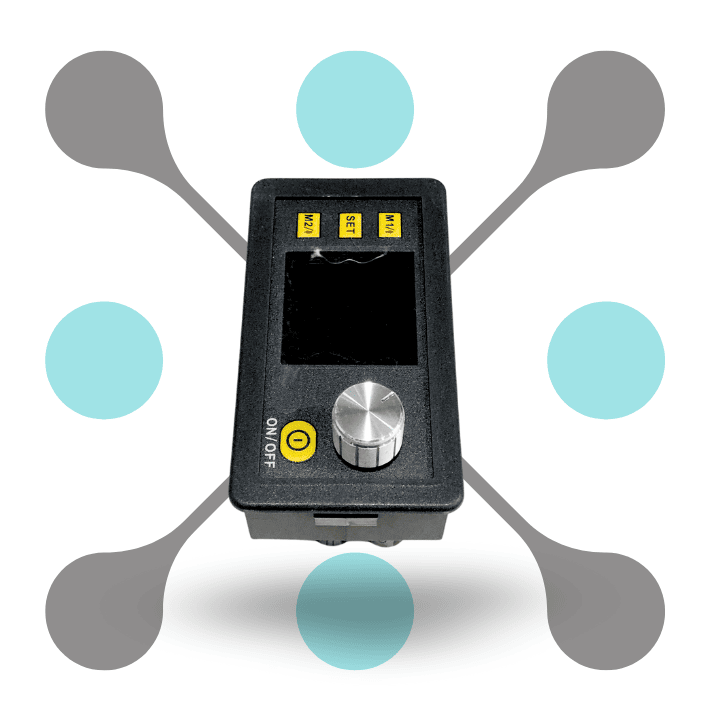

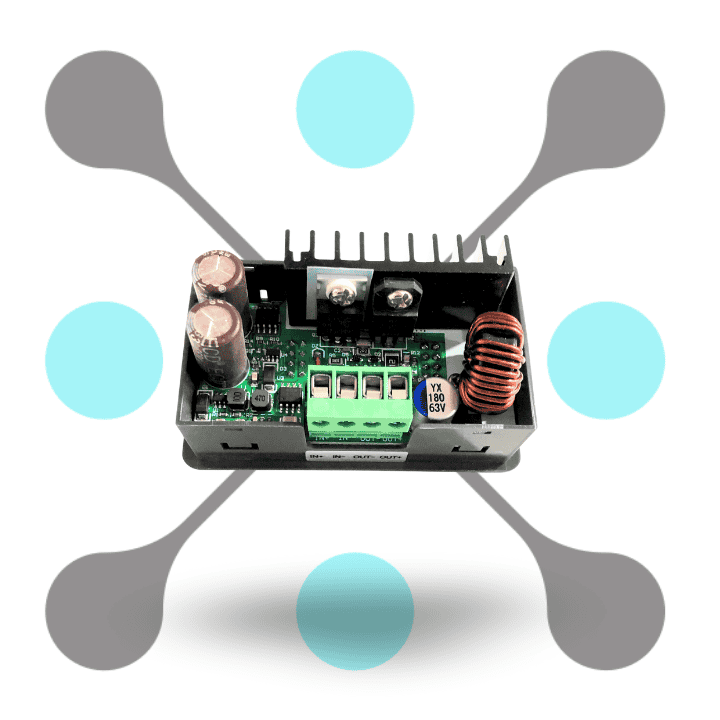

Introducing the Roboway DP50V5A Buck Adjustable DC Step-Down Programmable Power Supply Module, a versatile tool for electronics enthusiasts and professionals. The DP50V5A adjustable power supply offers precise voltage control from 0 to 50V and current regulation up to 5A. Its programmable features allow for customizable output settings tailored to specific project requirements.
The DP50V5A power supply module features a user-friendly interface with an LCD display, providing real-time monitoring of voltage, current, and power. This programmable power module supports both constant voltage (CV) and constant current (CC) modes, ensuring stable operation across various load conditions. Ideal for laboratory testing, prototyping, and repair work, it enhances flexibility and efficiency in power supply applications.
With its compact design and robust build quality, the DP50V5A adjustable power supply module is suitable for desktop and benchtop use. It incorporates advanced protection mechanisms against overvoltage, overcurrent, and overheating, safeguarding connected devices and components. The Roboway DP50V5A Buck Adjustable DC Step-Down Programmable Power Supply Module is the ideal choice for anyone seeking reliable and precise power delivery in their electronic projects.
Feature
Specification
| Specification | Details |
|---|---|
| Model | DP50V5A |
| Type | Buck Adjustable DC Step-Down Programmable Power Supply |
| Input Voltage |
6V to 55V |
| Output Voltage | 0V to Input Voltage |
| Output Current |
0A to 5A |
| Output Power | Up to 250W (max. based on input voltage) |
| Adjustable Output | Yes, programmable via buttons or PC software |
| Voltage Display Resolution | 0.01V |
| Current Display Resolution | 0.001A |
| Voltage Setting Accuracy | ±0.1% + 10mV |
| Current Setting Accuracy | ±0.1% + 10mA |
| Voltage Ripple | ≤50 mV (peak-to-peak) at full load |
| Efficiency | Up to 95% |
| Control Interface | Buttons and LCD display, USB for PC control |
| Protection Features | Over-current, Over-temperature, Reverse polarity |
| Operating Temperature Range | -10°C to 60°C |
| Cooling | Fan-cooled |
| Dimensions | 79mm x 43mm x 48mm |
| PCB Mounting | Through-hole mounting |
| SKU | RW-922 |
