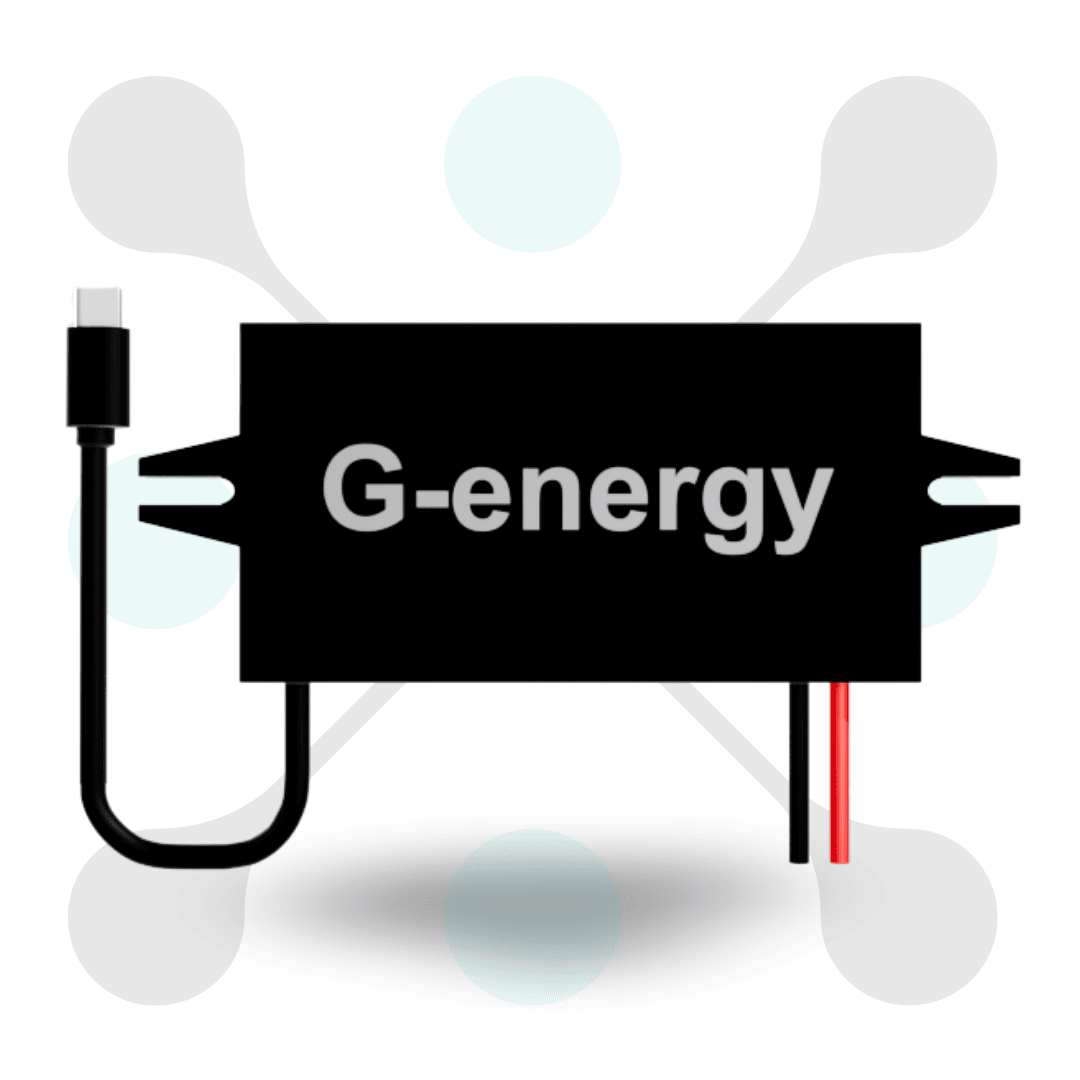

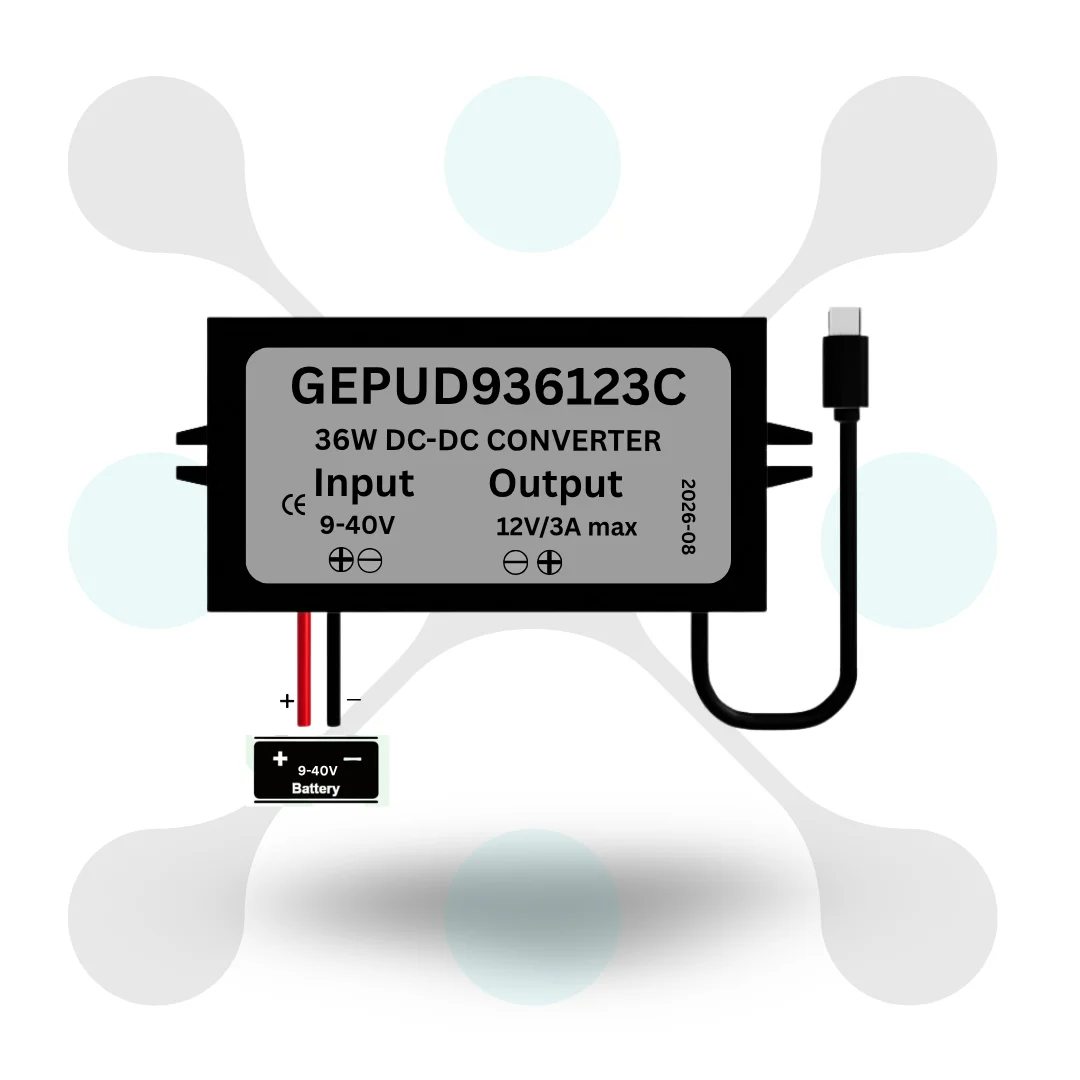

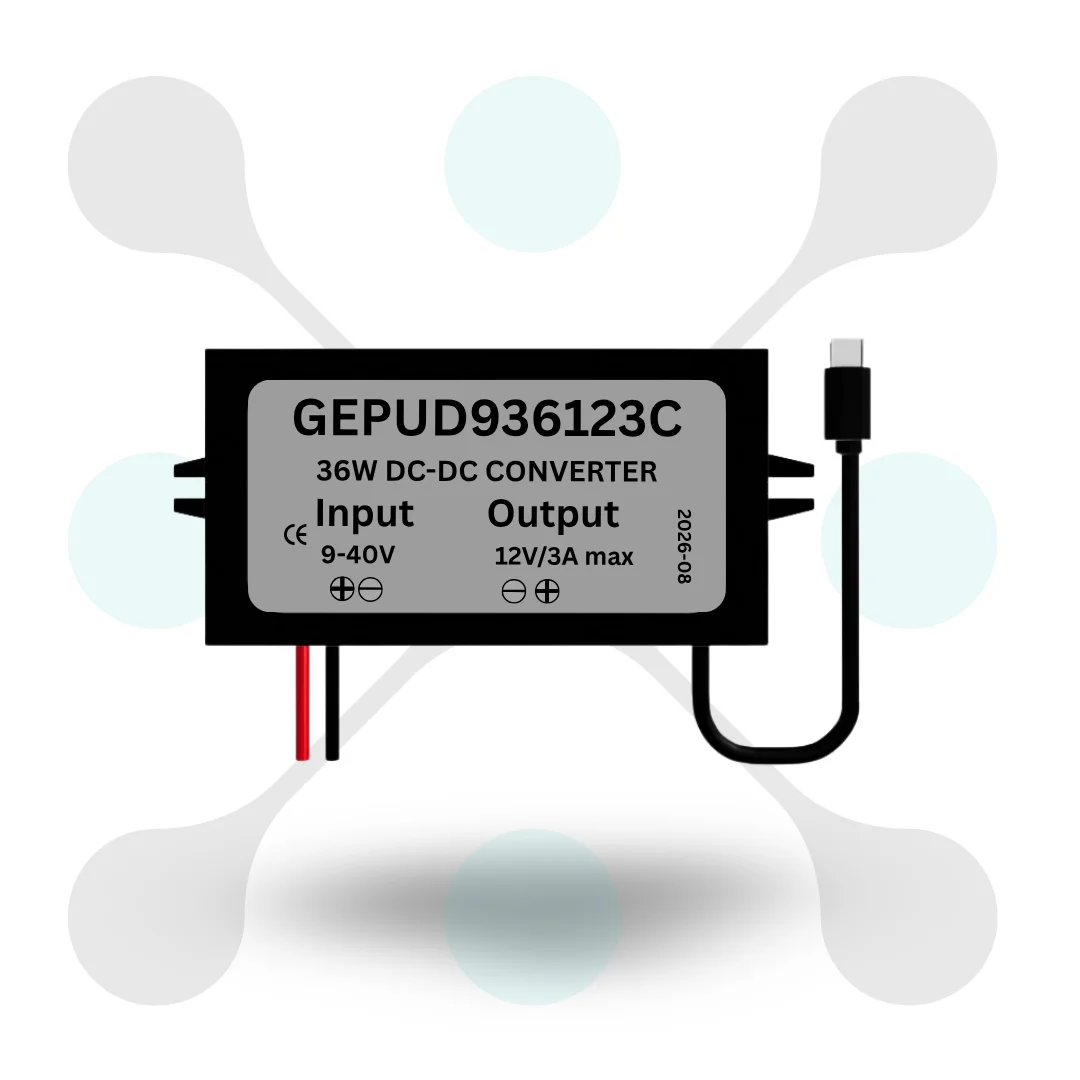

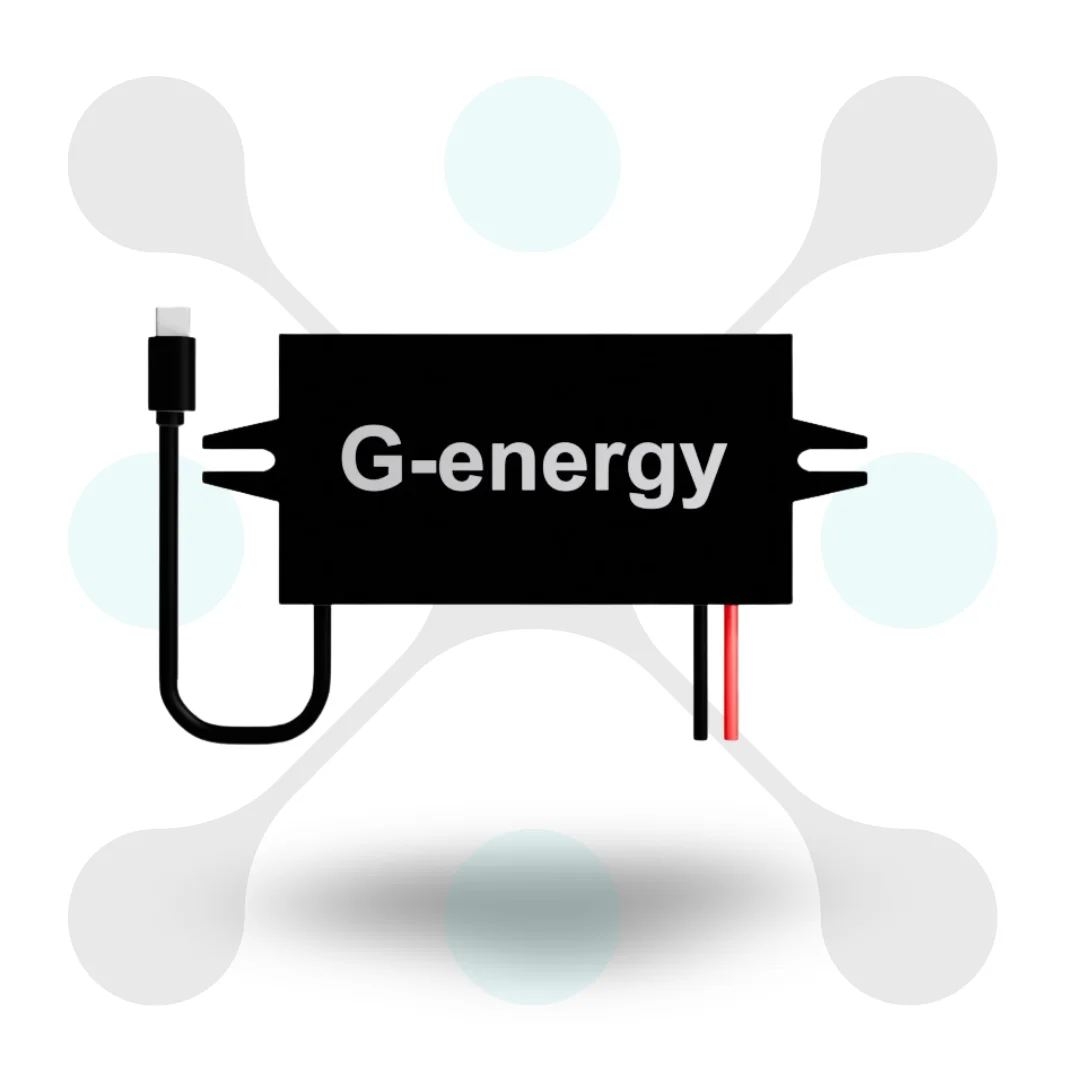

G-energy GEPUD936123C 12V 24V 36V To 12V 3A 36W Type-C Dc To Dc Converter

The G-energy 9-40V to 12V 3A 36W DC-DC Converter is a reliable power supply module that helps you get a stable 12V output from a wide input voltage range of 9V to 40V. This makes it very useful when you need to run 12V devices from different power sources like batteries, solar panels, or vehicle power systems. With a Type-C output, it is modern and convenient for connecting various gadgets and devices.

It built to handle up to 3A current and 36W power, this converter ensures safe and efficient performance. It comes in a compact design, making it easy to use in DIY projects, automotive applications, and other electronic setups. The G-energy converter is perfect for anyone who needs a stable 12V power solution with easy Type-C connectivity.

Features

Wide Input Voltage (9V–40V): Converter works with a big range of power sources like batteries, solar panels, or car systems.

Stable 12V Output: Always gives a steady 12V, even if the input voltage changes.

High Power (36W): It can handle up to 3A current, suitable for powering different devices.

Type-C Output Port: Easy to connect with modern devices and provides fast, reliable output.

Specification

Input Voltage Range: 9V to 40V DC

Output Voltage: 12V DC

Output Current: Up to 3A

Output Power: Maximum 36W

Output Port: Type-C connector

Conversion Type: DC to DC step-down converter

Efficiency: High efficiency up to 95% (typical)

Ripple & Noise: Low ripple for stable performance

Protection Features: Over-voltage, over-current, short-circuit protection

Operating Temperature: -20°C to +85°C

Build Quality: Compact, durable, and lightweight design

Dimension: 45*31*17 mm

Weight: 58gm
