G-energy DC 12V 24V To 5V 20A 100W Dc Dc Converter IP68 Step Down Power Supply Module

Overview Of This G-energy DC 12V 24V To 5V 20A 100W Dc Dc Converter IP68 Step Down Power Supply Module

Introducing our G energy dc 12V 24V to 5V 20A 100W dc dc converter ip68 power supply module at best price in India with Roboway. You can use it as a powerful and reliable voltage regulator module. This converter also use efficiently step down higher input voltage from 8-36V to a stable 5V output. Its waterproof IP68 rating ensure durability and protection against water and dust & make it perfect for diverse environment.

This 100W dc converter is designed to handle a wide range of input voltage(8V-36V) and gives a 5V output. Its high power capacity of 100W and also deliver current upto 20A.  It also make it best choice to power various electronic device and system. Whether for automotive application, industry machine, or DIY project. Its also a versatility to fulfill various power need in multiple device.

Features

Wide Input Voltage Range (12V to 24V DC) – This converter Supports various input sources like car batteries, solar panels, or industrial systems.

Stable 5V Output at 20A (100W max) – It gives consistent power for 5V devices such as USB hubs, Raspberry Pi, GPS, and LED modules.

High Conversion Efficiency – It built with advanced circuitry to reduce energy loss and improve performance.

IP68 Waterproof and Dustproof Design – Fully sealed housing allows safe operation in outdoor or harsh environments.

Built-in Protection Features – Includes under-voltage, over-current, over-temperature, and short-circuit protection to safeguard connected devices.

Specification

Input Voltage Range: 8V–36V DC

Output Voltage: 5V DC

Output Current: 20A

Output Power: 100W

Conversion Efficiency: Up to 95%

Operating Temperature: -40°C to +80°C

Protection Level: IP68 (Waterproof and dustproof)

Ripple: ≤50mV

No-load Current: ≤15mA

Short Circuit Protection: yes

Over-temperature Protection: Not supported

Input Reverse Polarity Protection: No

Cooling Method: Natural air cooling

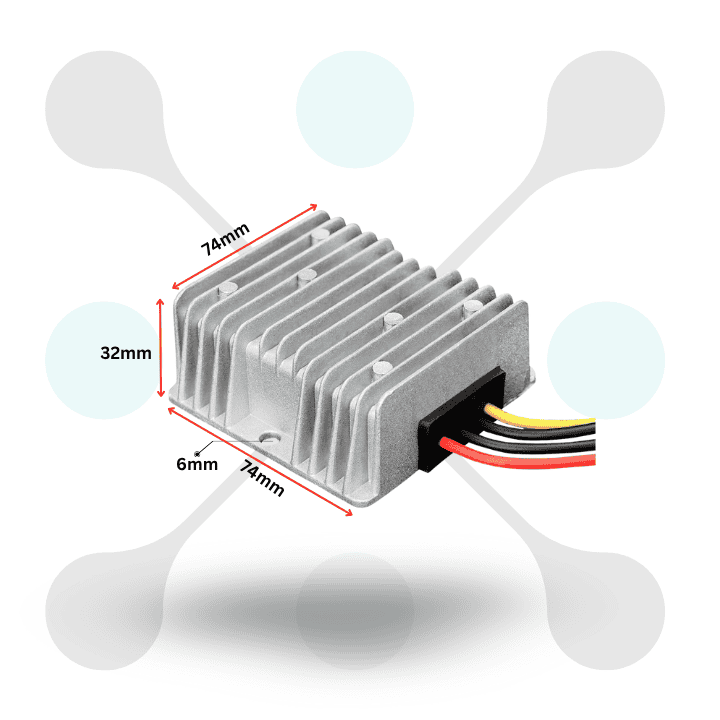

Dimensions: 74 × 74 × 32 mm

Weight: 118 grams

SKU: RW-1444
