IC-MP25N120B

Overview Of This IC-MP25N120B

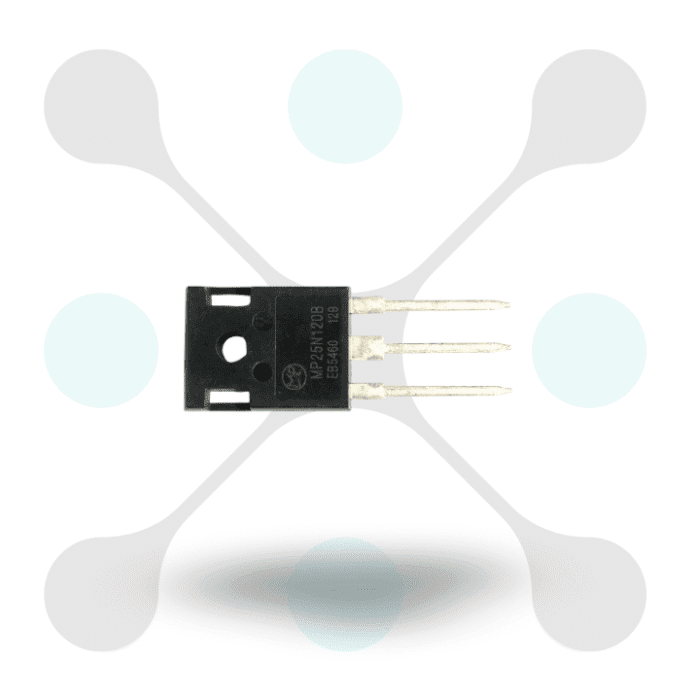

Introducing Roboway IC-MP25N120B at best price in India with Roboway. This IC is a high-power IGBT transistor designed to handle heavy currents and high voltages. It encased in a TO-247 style package—this means it has three leads and a metal tab for heat dissipation, and is common for power components. This IC-MP25N120B capable of handling up to 25 A of current and 1200 V of voltage, making it ideal for demanding power electronics.

This IC-MP25N120B is an IGBT transistor (Insulated Gate Bipolar Transistor). It’s a type of power switch used in circuits that need to control high voltage and high current efficiently. It works like a high-power electronic gate and it turns large electrical loads on and off very quickly with minimal energy loss.

Specification

Device Type: IGBT Transistor (MPBW25N120B / MP25N120B)

Package: TO-247 or TO-247-3

Collector–Emitter Breakdown Voltage (V₍CES₎): ≈ 1200 V

Continuous Collector Current (I₍C₎): ≈ 25 A

Typical Saturation Voltage (V₍CE(sat)₎): ≈ 2.2 V (at V₍GE₎ = 15 V, I₍C₎ = 25 A)

Switching Characteristics: High-speed switching; low switching losses; soft turn-off

Thermal Stability: Rugged; good thermal handling (TO-247-3)

Parallel Operation: Supported – positive temperature coefficient in V₍CE(sat)₎

Typical Applications: Industrial switching, UPS, motor drives

SKU: RW-IC0074
