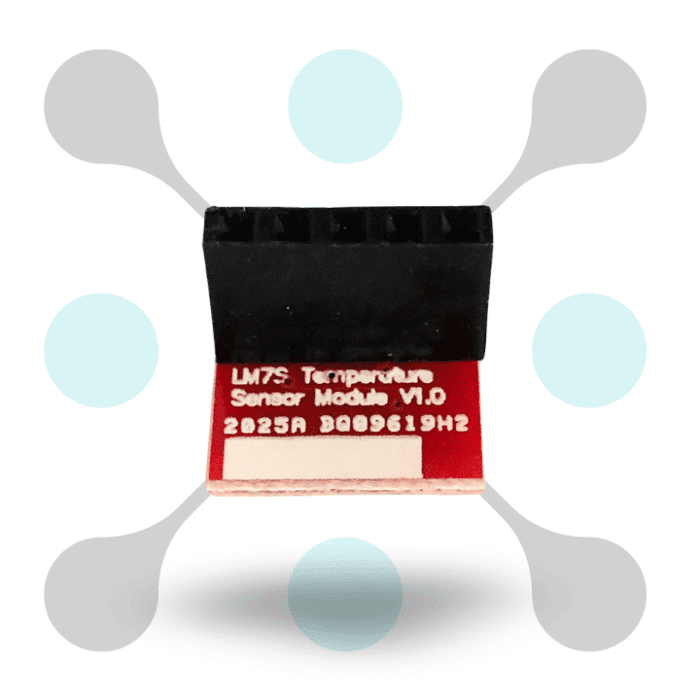

LM75 Temperature Sensor Module

SKU: RW-252

₹139.00 ( Excluding 18% GST )

Mail us for bulk inquiry: Sales@roboway.in

In stock

Purchase & earn 14 points!
6 People watching this product now!

Overview of this LM75 Temperature Sensor Module

Introducing Roboway LM75 Temperature Sensor Module at the best price in India with Roboway. This lm75 temperature sensor is digital temperature sensor which can measures temperature and sends the data digitally. It is provides accurate readings with ±2°C tolerance. This modules converts temperature into digital data directly inside the sensor. It is  operates on 3V to 5V  and works with common microcontroller voltages like Arduino and Raspberry Pi.

It can be measure temperature from -55°C to +125°C. This module used in HVAC systems and weather stations, home automation, and electronics projects. It is simple setup and fast integration with most development boards. It is useful for real-time temperature tracking and control.

Accurate digital temperature readings: The LM75 sensor gives precise digital temperature output.

Wide temperature range (-55°C to 125°C): This sensor works well in both very cold and very hot environments.

I2C communication interface: The LM75 uses the I2C protocol to communicate with microcontrollers like Arduino or Raspberry Pi.

Programmable temperature limits: You can set high and low temperature limits on the sensor.

Low power consumption: The sensor uses very little power, which makes it perfect for portable or battery-powered projects.

Specification

Sensor Type: Digital temperature sensor

Temperature Range: -55°C to +125°C

Temperature Accuracy: ±2°C (typical)

Interface: I2C interface

Resolution: 0.125°C

Power Supply: 2.7V to 5.5V DC

Current Consumption: Low power consumption

Address: Configurable via address pins

Shutdown Mode: Yes, supports low power shutdown mode

Application: Suitable for temperature monitoring and control in various systems

SKU: RW-252

Weight:  3g
