Description

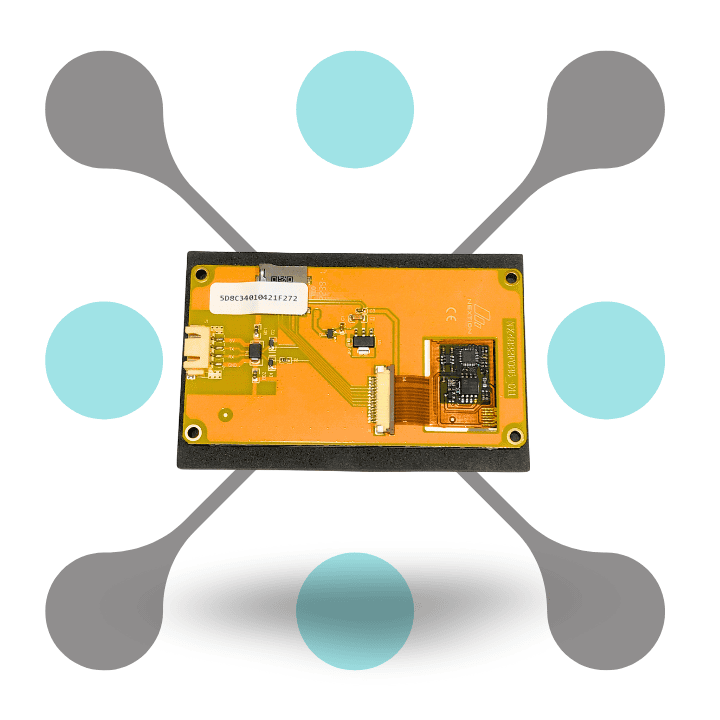

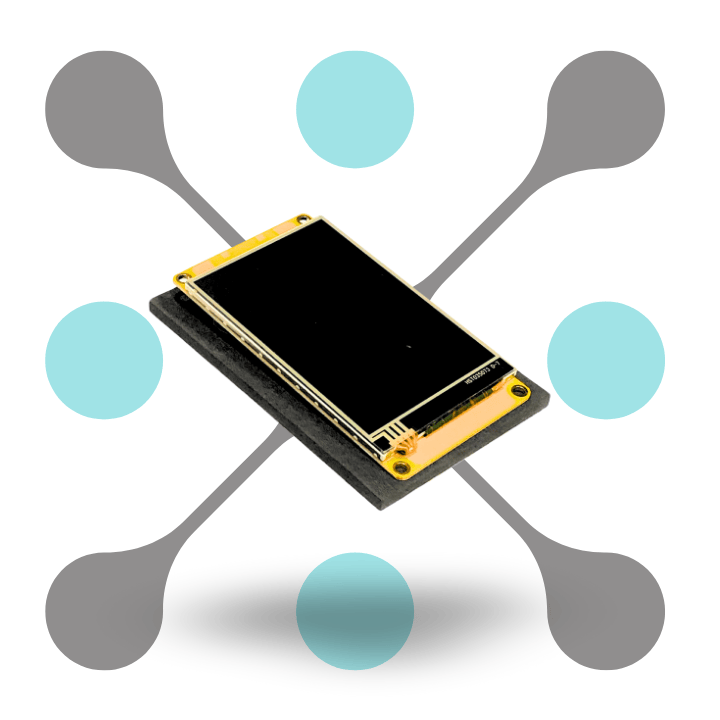

Overview of this Nextion 3.5inch Basic TFT LCD Touch Display
Introducing the Nextion 3.5inch Basic TFT LCD Touch Display Module, a versatile solution for simple interface. With the NX4832T035 model also provide smooth navigation and responsive touch interaction. This display offers crisp visuals and intuitive controls for better user experience.
Experience high quality visuals with Nextion 3.5inch Basic HMI TFT LCD Touch Display in various applications. Whether in industry automation or DIY projects, its TFT LCD technology ensures clear and vibrant display. Designed with user friendly feature, this module also simplify interface design and accelerates project development.
Features
- 3.5-inch TFT LCD Display: This display also offer a compact size 3.5inch screen to display information easily.
- Basic HMI Function: This Nextion 3.5inch Basic TFT LCD Touch Display also provide human machine interface capability for straight forward device control and monitoring. It also serve as a foundational interface for user interaction with connected systems.
- Touchscreen Interface: Intuitive touch inputs enhance user experience & also enable smooth navigation and operation of the interface. Users can interact with the display through responsive touch gestures for better use.
- Customizable Interface: Users have the flexibility to design and customize graphic user interface (GUIs) according to specific need. This customization capability ensures its use in various applications and user preference.
- Serial Communication: This Nextion 3.5inch Basic TFT LCD Touch Display also support serial communication protocols, the display easily fit with microcontrollers and embedded systems. This function also provide easy control and data exchange to enhance connectivity.
Specification
| Specification | Details |
|---|---|
| Model | Nextion NX4832T035 |
| Screen Size | 3.5 inches |
| Display Type | TFT LCD |
| Resolution | 480 x 320 pixels |
| Touch Technology | Resistive |
| Communication Interface | TTL Serial |
| Brightness | 180nit |
| RAM | 256KB |
| GPIO | GPIO supported |
| Speaker | Supported |
| RTC | Supported |
| Touch Points | Single-touch |
| Dimension | 100.5 (L)×54.94 (W)×5.45 (H) |
| Active area | 73.44×48.96mm |
| Operating Temperature | -20°C to 70°C |
| SKU | RW-DIS16 |
