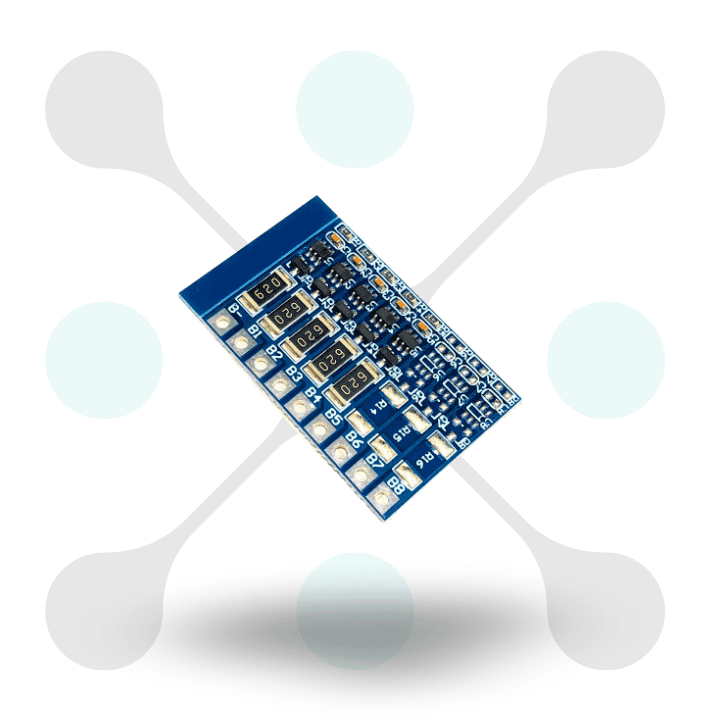

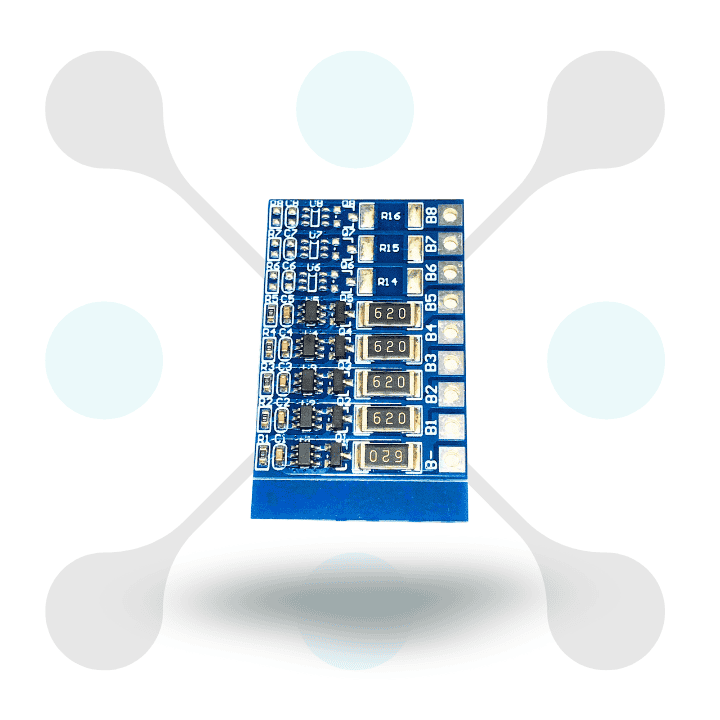

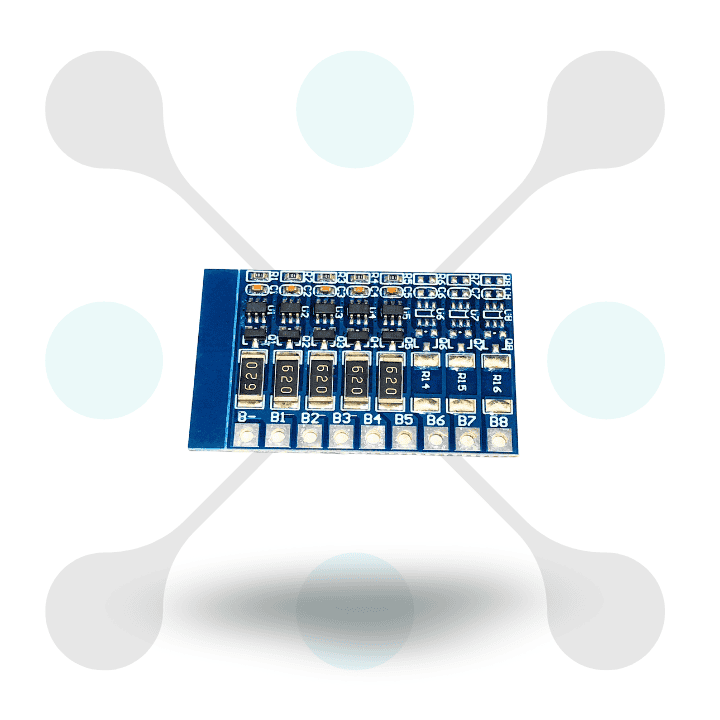

Overview of this PCB 5S 18650 L1 EQUALIZER BOARD
Introducing Roboway 18650 L1 Equalizer Board at the best price in India with Roboway .It helps balance voltage levels across cells and improving overall battery performance and lifespan. This board is use for DIY battery builders and energy storage enthusiasts. With reliable equalization and your battery pack stays efficient and safe.
It is built specifically for multi-cell battery packs and the 18650 Equalizer Board works with 1S-8S configurations. It confirms that this is every cell charges and discharges at a balanced rate. This prevents overcharging or deep discharging of individual cells. Such balanced operation extends battery life and enhances reliability.
The PCB 5s 18650 L1 Equalizer Board is compact and easy to install and user-friendly. It’s use for use in e-bikes and solar storage and custom power banks. Clear indicators show active balancing and making it simple to monitor. Upgrade your battery system with smarter safer cell management.
Specification
Product Type: Battery Equalizer / Balancer Board
Compatible Cell Type: 18650 Lithium-Ion Cells
Number of Cells Supported: 5S (5 Cells in Series)
Balancing Method: Passive Equalization
Balancing Current: Typically 30-60mA
Working Voltage: 18V – 21V (for 5S 18650 packs)
Overcharge Protection: No (only equalizing function)
Short Circuit Protection: No
Operating Temperature: -20°C to +60°C
PCB Material: High-quality FR4
Connector Type: Solder Pads / Pin Header
Dimensions: 42*25*2 mm
Weight: 3 g
Application: Battery Pack Balancing for DIY power banks, e-bikes, etc.
SKU: RW-480
