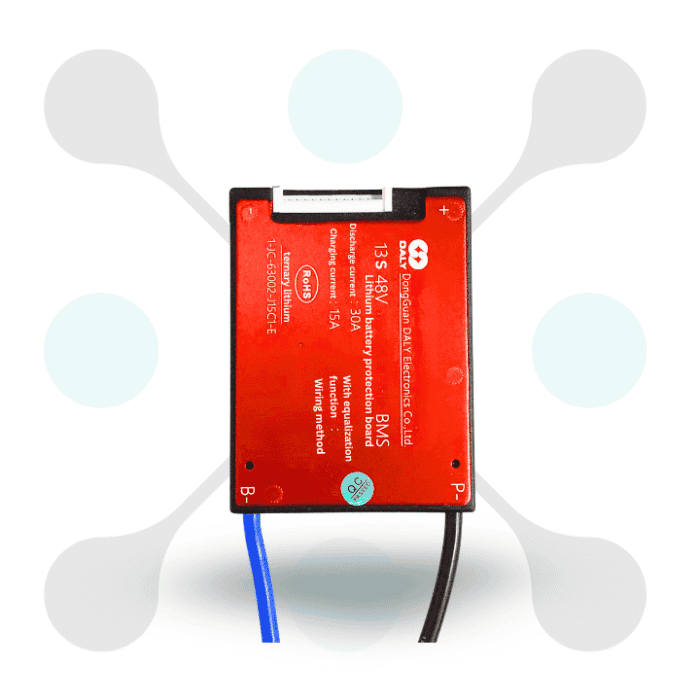

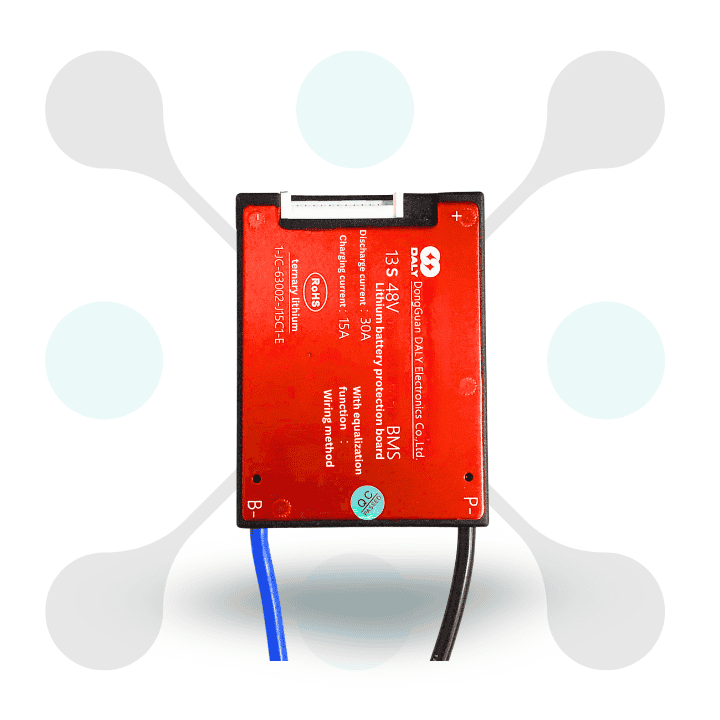

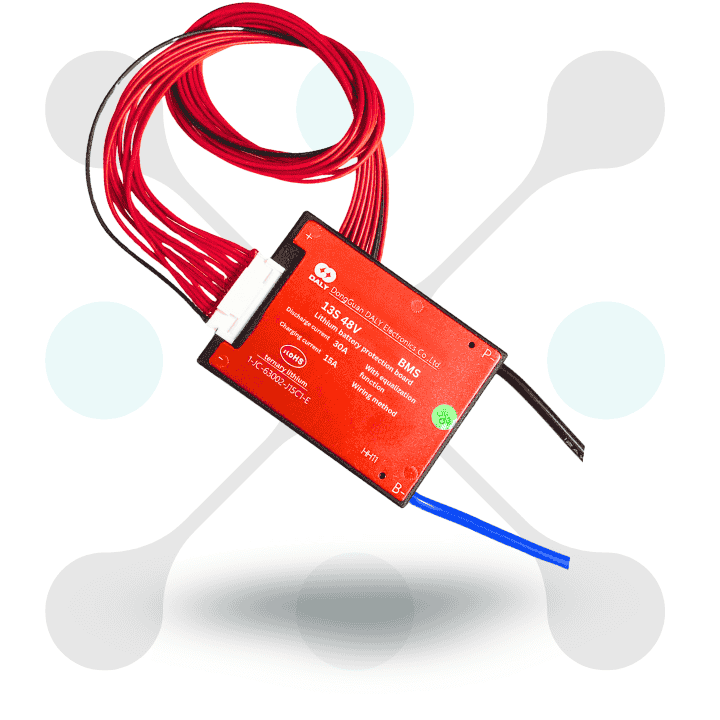

Overview of this Daly 13S 30A 48V Bms Waterproof Protection Circuit Module
Introducing Roboway Daly 13S 30A 48V BMS is a robust and efficient battery management system at best price in India. Designed for 13 series lithium battery pack, this Daly 13S 30A BMS ensure optimal performance and safety. Its waterproof design make the Daly 13S 30A waterproof BMS ideal for outdoor and rugged application. With advanced protection feature, this Daly 13S BMS protection circuit provide asfety against overcharging, over discharging, and short circuit.
This Daly 13S 30A 48V BMS is perfect for high capacity lithium battery setup & offer reliable current handling. Its waterproof built ensures durability & make it perfect for various harsh environment. This Daly 13S 30A BMS is easy to install & ensure smooth and stable battery operation. Enhance the safety and lifespan of your battery pack with the efficient Daly 13S BMS protection circuit module.
Features
- 13S Battery Management System: This Daly 13S 30A 48V Bms efficiently manage 13 series lithium battery cells. It ensure balanced charging and discharging for prolonged battery life.
- 30A Continuous Current Support: This module support up to 30A continuous current, ideal for high power setups. It prevent overcurrent & give safety both battery and connected device.
- 48V Voltage Compatibility: This BMS is designed for 48V lithium ion battery system & ensure stable power distribution. It support various energy storage applications and electric vehicle.

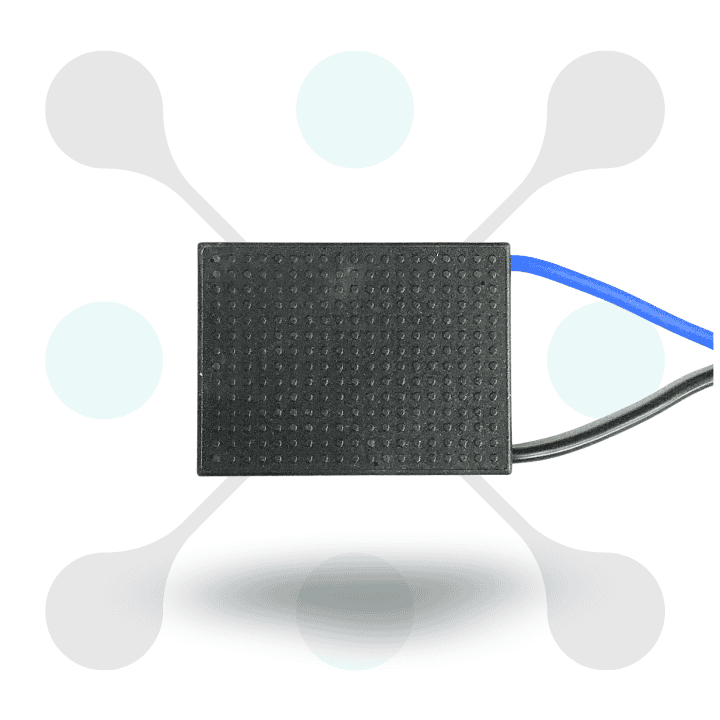

- Waterproof Protection: This BMS feature a waterproof design & offere reliable performance in harsh condition. This protection make it perfect for outdoor and rugged environment.
- Comprehensive Safety Features: Integrated protection include overcharge, overdischarge, short circuit, and temperature safeguards. These feature enhance overall battery safety and long life.
Specification
| Specification | Details |
|---|---|
| Battery Configuration | 13 Series (13S) |
| Nominal Voltage | 48V (13 x 3.7V) |
| Maximum Continuous Current | 30A |
| Peak Current | 60A (for a short duration) |
| Overcurrent Protection | Yes (activated when current exceeds 30A) |
| Short Circuit Protection | Yes |
| Overcharge Protection | Yes (prevents overcharging beyond 4.2V per cell) |
| Overdischarge Protection | Yes (prevents discharge below 2.5V per cell) |
| Balance Function | Yes (ensures even charge distribution among cells) |
| Temperature Protection | Yes (over-temperature protection enabled) |
| Waterproof Rating | IP67 (suitable for wet conditions) |
| Cell Type Compatibility | Li-ion (18650) |
| Charging Voltage Range | 48V nominal (max 54.6V for full charge) |
| Discharge Voltage Range | 39V nominal (min 31.5V) |
| PCB Dimensions | 90mm x 60mm |
| SKU | RW-821 |
