Overview of this proto shield prototype for arduino with mini breadboard

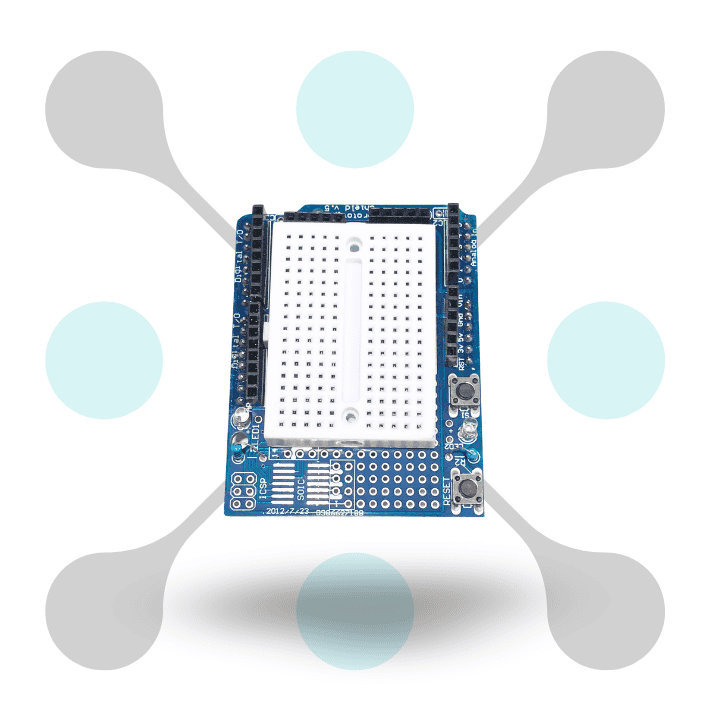

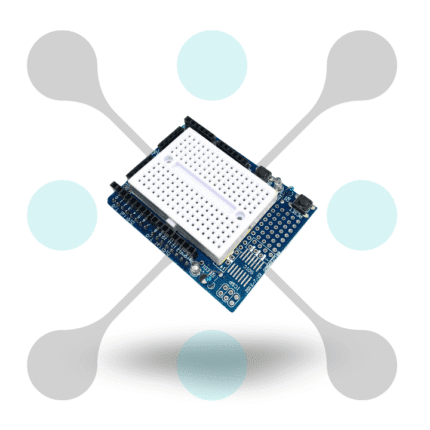

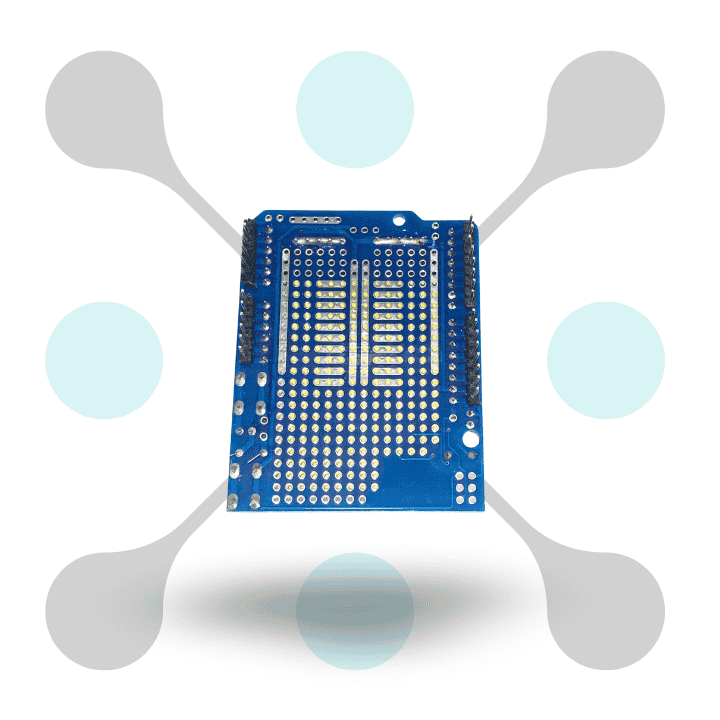

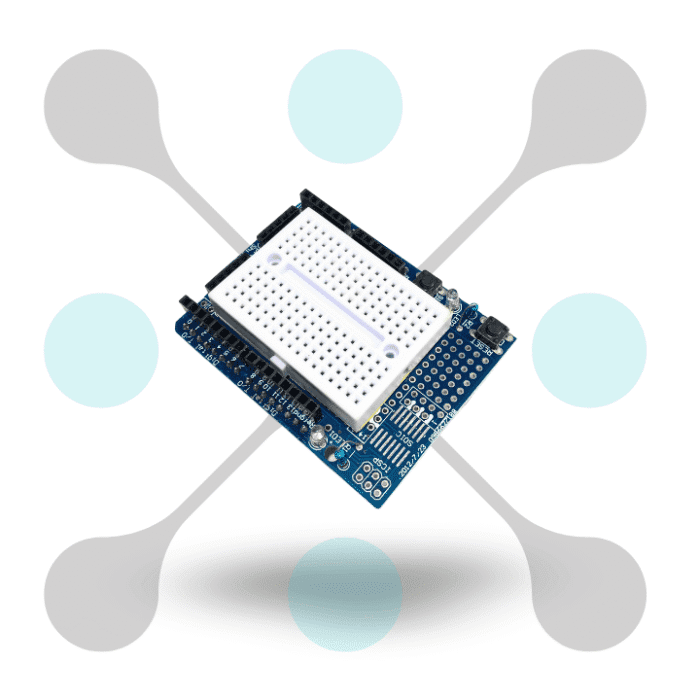

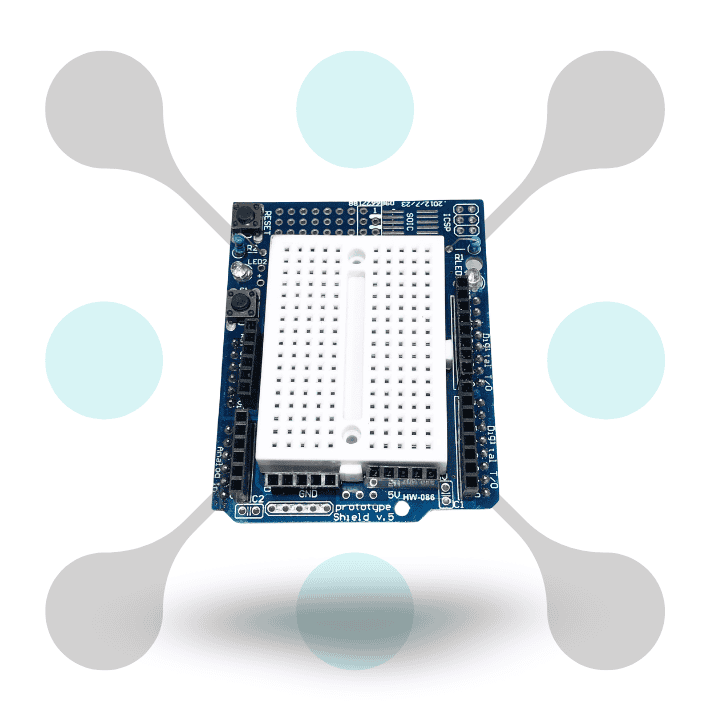

Introducing Roboway Proto Shield Prototype for Arduino UNO with mini breadboard at best price. This shield feature a standard 0.1″x0.1″ prototyping grid with ample space for custom circuit ideal for building various project. It is also equipped with stacking header and plain header. You have the flexibility to choose your preferred soldering option.
With an IC pattern supporting up to 20 pin, power rail along the middle and side, and additional feature like a reset button and general use button. This shield also enhance your prototype experience. The inclusion of two 3mm general use LED, red and green, along with matching resistor, adds visual feedback to your project. And also ensure efficient troubleshooting and monitoring.
Design to work easily with Arduino Uno, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible board. This shield also offer universal compatibility for various Arduino project. It is also use for experimenting with electronic or a seasoned maker developing complex applications. This Arduino prototype shield module cater to all your prototype need. With gold plated pad, a pass thru ICSP stacking header, and compatibility with tiny breadboard every detail is specially design for an better prototyping experience.
Features
- Versatile prototyping grid: The shield offers a standard 0.1″x0.1″ grid with spacious pads. And also provide easy circuit construction.
- Flexible header options: Users can select between stacking headers and plain headers & cater to individual soldering preferences. This versatility also ensures smooth function with various Arduino board and stacking configuration.
- Integrated IC support: With an IC pattern capable of accommodating DIP ICs up to 20 pins it also enhance project flexibility. This feature enables the integration of additional functions and component into Arduino based project.
- Convenient power distribution: The shield features power rails along the middle and sides & simplify power management during prototyping. This setup ensure efficient power distribution to connected component & enhance project stability and reliability.
- Enhanced functionality: Equipped with a reset button, an additional general use button, and two 3mm LEDs with matching resistors the shield offers enhanced control and feedback capabilities. These feature provide interactive and responsive Arduino project with improved user engagement.
Specification
| Specification | Description |
|---|---|
| Dimensions | 68.6 x 53.4mm |
| Prototyping Grid | Standard 0.1″x0.1″ grid with large pads |
| Header Options | Comes with stacking headers and plain headers |
| IC Pattern | Supports DIP ICs up to 20 pins |
| Power Rails | Central and side power rails for easy connectivity |
| Buttons | Reset button and an additional general-purpose button |
| LEDs | Two 3mm general-purpose LEDs (red and green) with resistors |
| ICSP Stacking Header | Pass-thru ICSP stacking header for shield stacking |
| Surface-Mount Chip Area | Area for up to 14 SOIC size parts for surface-mount chips |
| Compatibility | Works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, Yun, Arduino Ethernet, and compatible Arduinos |
| SKU | RW-108 |
