Description
Overview of this Sound Detection Sensor Module

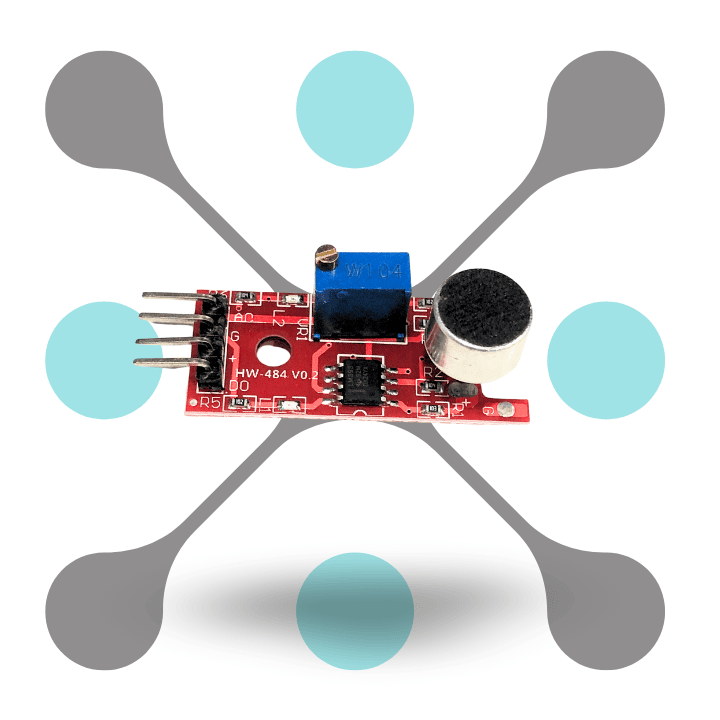

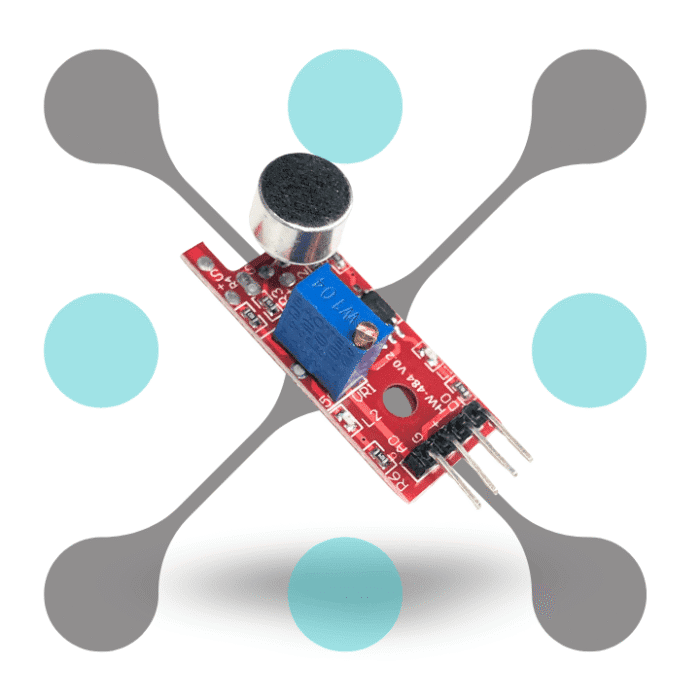

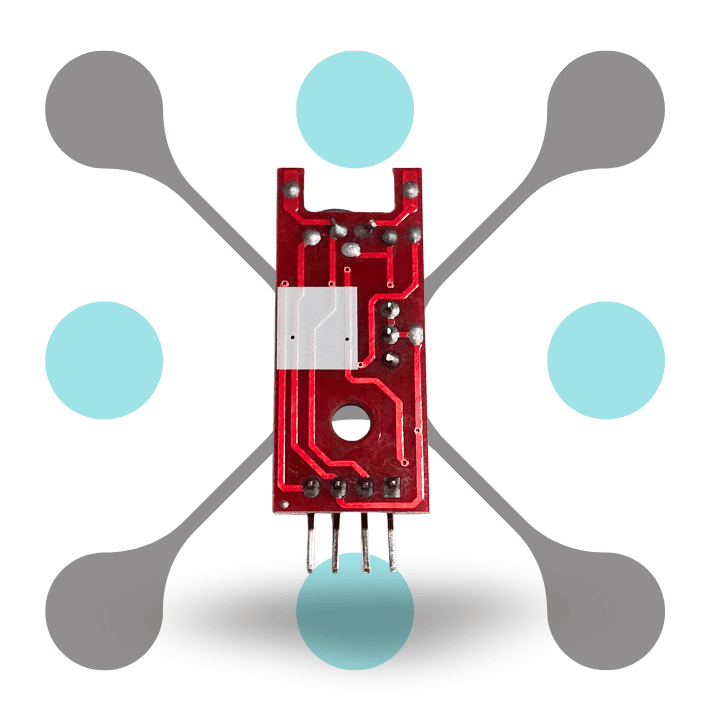

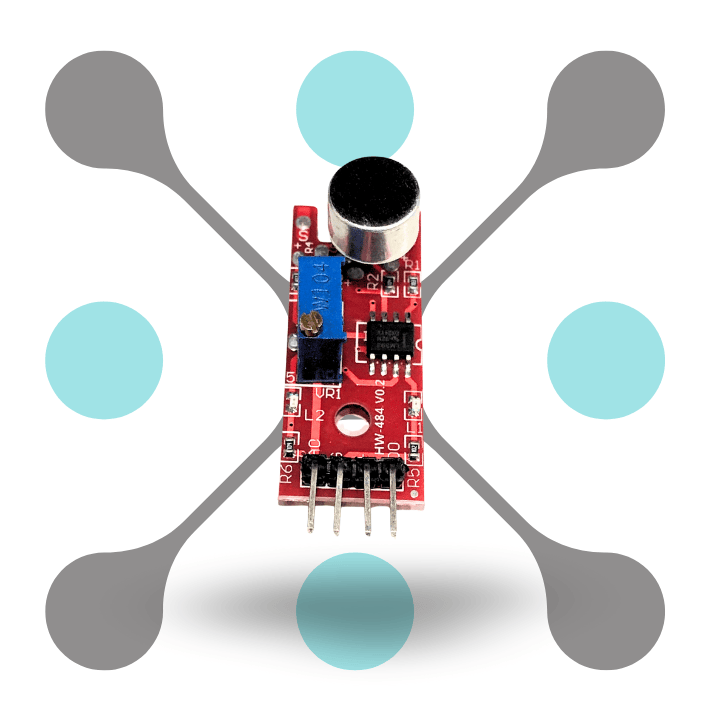

Introducing roboway sound detection sensor module designed for intelligent vehicle applications and compatible with Arduino. This module features a single channel signal output with high fidelity. And effectively detecting low level sound signal.
It is also built with an LM393 chip and an electret condenser microphone for best function. This sensor also provide reliable signal output indication. It detect sound intensity in the environment & make it perfect for device such as acoustic controlled lights and sound alarms.
With its compact design and retaining bolt hole for easy installation. This sensor module offer convenience and versatility in various project. It smoothly operate at a voltage range of 3.3V to 5V & ensure compatibility with Arduino and other microcontroller systems.
Features
- Single Channel Signal Output: This sound detection sensor module also feature a single channel signal output. And simplify integration into various projects & provide signal handling for detecting sound presence.
- Effective Low Level Signal Output: When sound is detected, the module outputs a low level signal with good fidelity, accompanied by a signal light indication. It also ensure reliable detection and visual feedback for sound related device.
- Versatile Applications: Suitable for acoustic controlled light, sound and light alarm systems, and sound control device & offer flexibility in usage scenec. It can also use in conjunction with photosensitive sensors for best functions.
- LM393 and Electret Condenser Microphone: Incorporates LM393 and an electret condenser microphone, ensuring accurate sound detection and signal processing. This combination enhances the sensor’s performance and reliability.
- Detection of Sound Intensity: Capable of detecting the intensity of the sound environment, allowing for dynamic response to varying sound levels. Users can adapt the sensor’s behavior based on the sound intensity detected.
- Convenient Installation: Features a retaining bolt hole for easy and secure installation in different setups and environments. This facilitates hassle-free integration into intelligent vehicle systems and other projects.
- Wide Operating Voltage Range: Compatible with operating voltages ranging from 3.3V to 5V, ensuring compatibility with a variety of microcontroller platforms such as Arduino. This wide voltage range enhances versatility and usability across different applications and configurations.
Specification
| Specification | Description |
|---|---|
| Sensor Type | Sound detection module |
| Signal Output | Single channel signal output |
| Output Level | Low level signal indication |
| Sensor Principle | Vibration (uses Electret condenser microphone) |
| Detection Distance | Up to 0.5 meters |
| Operating Voltage (VDC) | 3.3V to 5V |
| Integrated Circuit | LM393 |
| Signal Indication | LED indicator for output signal |
| Application | Acoustic controlled light, sound and light alarm, sound control, sound detection |
| Size (L x W x H) | 43mm x 17mm x 8mm |
| Weight | 3 grams |
| SKU | RW-052 |
