Description

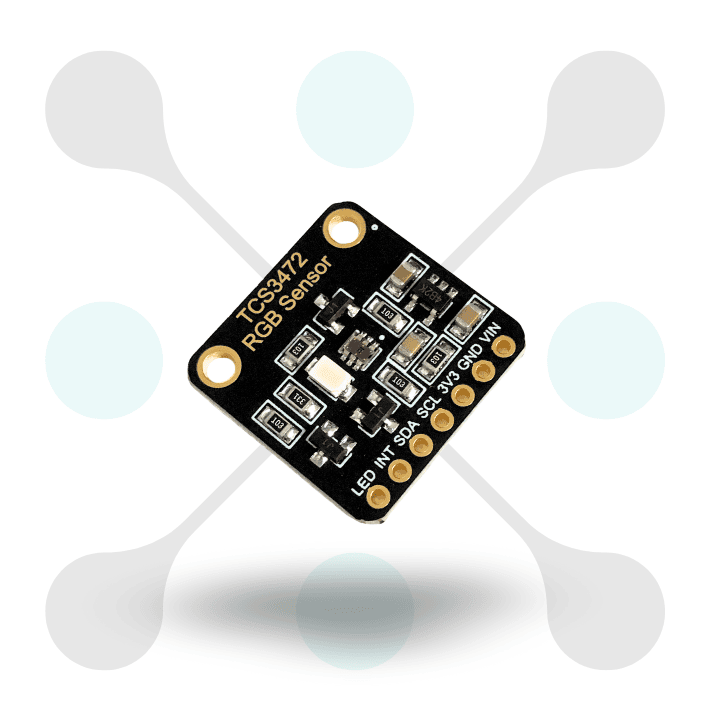

Overview of this TCS34725 colour sensor module
Introducing Roboway TCS34725 colour sensor module with digital I2C output & 16-bit rgb resolution. This module incorporates an IR blocking filter integrated on chip & ensure accurate color measurements by reducing the IR spectral component for incoming light. With its 3,800,000:1 dynamic range and adjustable integration time and gain it provide high accuracy, even behind darkened glass.

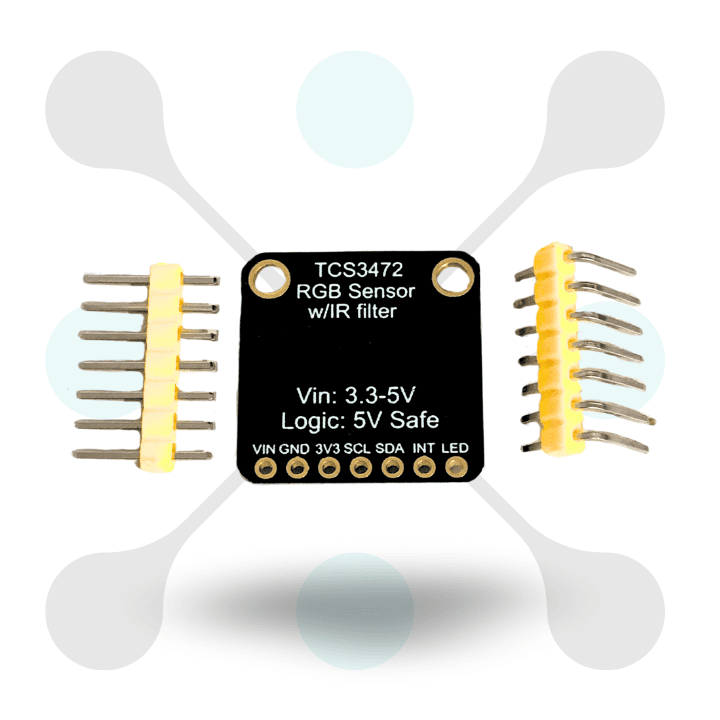

It also come with supporting circuitry & include a 3.3V regulator and level shift for I2C pin. This TCS34725 is compatible with 3-5VDC power and can be used with 3.3V or 5V logic. Its neutral 4150°K temperature LED with an onboard MOSFET driver provide illumination & controllable via any logic level output.
Connectable to any microcontroller via I2C, our example code provide quick setup for 4 channel reading, include light lux and temperature detection. Simply wire the sensor to VDD, Ground, SCL, and SDA on your Arduino, select the example sketch, and start exploring color measurements with ease.
Features
- High-precision color sensing: The TCS34725 Color Sensor Module provides accurate color detection. And it also allow for accurate measurement and identification of colors in different device.
- Wide spectral range: With a wide spectral range, the sensor can detect a broad spectrum of colors. It also ensure versatility and suitability for various color detection task.
- Integration-ready: The module comes with integrated circuitry for easy interfacing with microcontrollers. This simplifies the integration process and allows for seamless communication with external devices.
- Adjustable integration time: Users can adjust the integration time to optimize performance in different lighting conditions. This flexibility ensures reliable color sensing in varying environments.
- IR blocking filter: The sensor includes an IR blocking filter to enhance color accuracy. This filter helps eliminate interference from infrared light, ensuring precise color detection.
- Low power consumption: Operating with low power consumption, the sensor module is energy-efficient. This makes it suitable for battery-powered applications where power efficiency is essential.
- Compact size: With its compact form factor, the TCS34725 Color Sensor Module is space-efficient. This allows for easy integration into small-scale projects and devices with limited space.
Specification
| Specification | Details |
|---|---|
| Operating Voltage | 2.7V to 3.3V DC |
| Sensor Type | Color sensor |
| Detection Range | Visible light spectrum |
| Resolution | 16-bit (RGB) |
| Integration Time | Adjustable |
| Interface | I2C |
| Output Format | Digital (I2C) |
| Sensing Elements | 4 photodiodes (Red, Green, Blue, Clear) |
| Lux | Up to 60,000 lux |
| IR Rejection | Integrated IR blocking filter |
| Application | Color detection, ambient light sensing, display backlight control |
| SKU | RW-973 |
