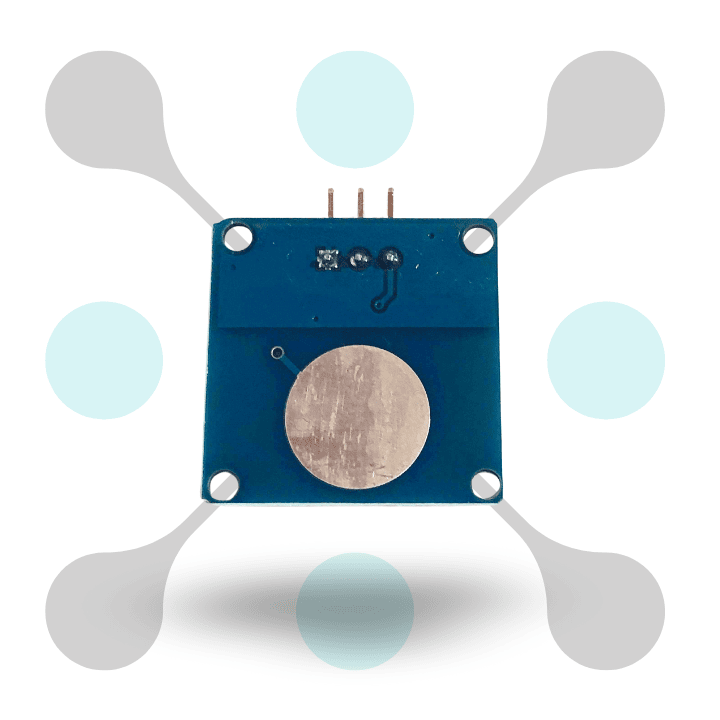

TTP223 – 1 Channel Capacitive Touch Sensor Module Blue Color

₹27.00 ( Excluding 18% GST )

Power Supply Voltage (VCC) 2.0V to 5.5V
Output High (VOH) 0.8VCC V
Output Low (VOL) 0.3VCC V
Response Time (Touch Mode) 60ms
Output Pin Sink Current 8mA (@ VCC = 3V, VOL = 0.6V)


In stock


Add to wishlist
8 People watching this product now!
SKU: RW-041 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,
Description

Description

Overview of this TTP223 Touch Sensor 1 Channel Module

Introducing the TTP223 – 1 Channel Capacitive Touch Sensor Module in Blue Color, a versatile touch sensing solution. This module offers precise touch detection with a response time of 60 ms in touch mode. With its low power consumption and wide voltage range of 2.0 to 5.5V DC, the TTP223 Touch Sensor is suitable for various applications.

The TTP223 Capacitive Touch IC provides reliable touch sensing capabilities, making it an ideal replacement for traditional buttons. Its output pin sink current of 8 mA and pull-up current of 4 mA ensure efficient operation. Measuring at a compact size of 24 x 24 x 7.2 mm, this touch module features four M2 screws positioning holes for easy installation.

Designed for convenience and versatility, the TTP223 1 Channel Touch Sensor Module is perfect for DIY projects and commercial applications alike. Its blue color adds aesthetic appeal to any design. Experience seamless touch sensing and effortless integration with this innovative capacitive touch sensor module. Choose the TTP223 for reliable and responsive touch detection.

Features

  • Wide Voltage Compatibility: Supports power supply voltages ranging from 2.0V to 5.5V DC. This ensures compatibility with various electronic systems and applications.
  • Flexible Installation: Features four M2 screws positioning holes for easy installation. This simplifies mounting in tanks or reservoirs for water level detection.
  • Low Power Consumption: Operates with low power consumption, ideal for energy-efficient applications. This helps prolong battery life and reduce overall power consumption.
  • Responsive Touch Mode: Offers a fast response time of 60 milliseconds in touch mode. This ensures quick detection and response to changes in water levels.
  • Versatile Output Options: Provides output high and low voltages of 0.8VCC and 0.3VCC respectively. This allows for easy interfacing with microcontrollers or other devices.
  • Compact Size: With dimensions of 24 x 24 x 7.2 mm, it features a compact design. This enables installation in space-constrained environments without sacrificing performance.
  • Enhanced Reliability: Designed for reliable operation with output pin sink and pull-up currents. This ensures stable performance and accurate water level detection.

Specification

Specification Details
Power Supply Voltage (VCC) 2.0V to 5.5V
Output High (VOH) 0.8VCC V
Output Low (VOL) 0.3VCC V
Response Time (Touch Mode) 60ms
Output Pin Sink Current 8mA (@ VCC = 3V, VOL = 0.6V)
Output Pin Pull-up Current 4mA (@ VCC = 3V, VOH = 2.4V)
Response Time (Low Power Mode) 220ms
Size 24mm x 24mm x 7.2mm
Power Consumption Low
Installation Four M2 screws positioning holes for easy installation
SKU RW-4

 Touch Sensor Interface:-

  • Control Interface: A total of three pins (GND, VCC, SIG), GND to ground, VCC is the power supply, SIG digital signal output pin
  • Power Indicator: Green LED, power on the right that is shiny
  • Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger.
  • Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm. The positioning of the module is easy to install, to achieve inter-module combination.
