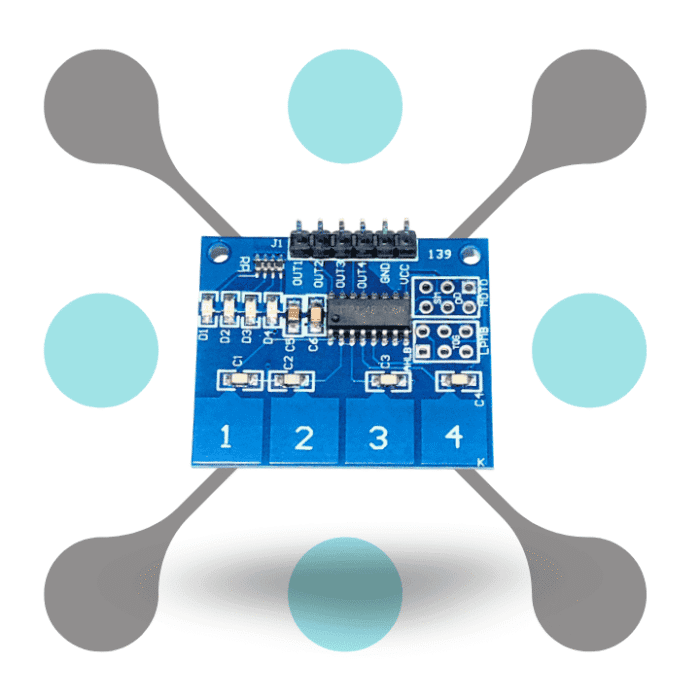

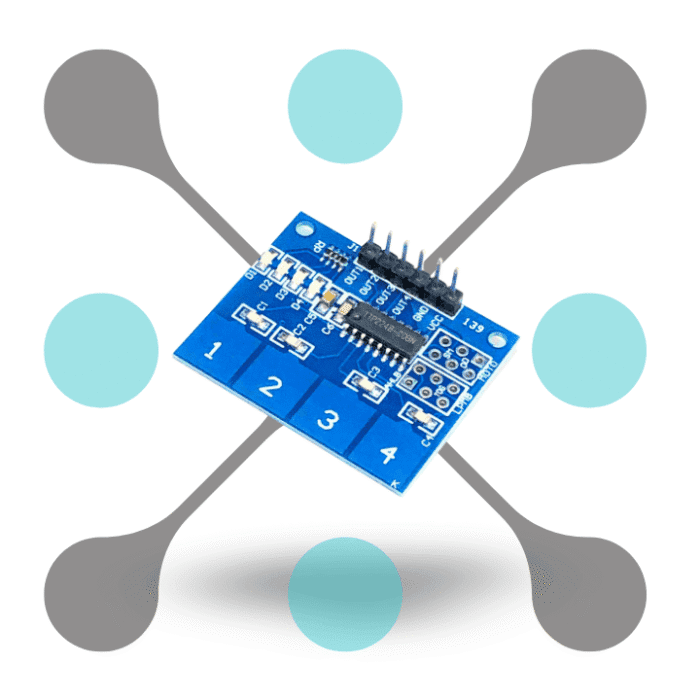

Overview of this TTP224 Touch Sensor 4 Channel Module
Introducing Roboway ttp224 touch sensor 4 channel module with advance pin breakout for touch sensing solution. This module use the touch sensing IC TTP224 to detect touch input & offer easy fit into various project. With its 4 touch pads and onboard TTP224 capacitive touch sensor IC. It provide reliable touch detection capability.
The 4 Channel TTP224 Touch Sensor Module is design to replace traditional button keys with diverse pad sizes. And provide better flexibility. It operates within a wide voltage range of 2.4V to 5.5V DC & make it compatible with various power source. With advanced pins breakout and low power selection, this module offer customizable output and working mode.
With its compact PCB board size of 35mm x 29mm, the TTP224 4 Channel Capacitive Touch Sensor Module is easy to interface and perfect for various device. It is also use with microcontroller & standalone also. It also offer smooth touch sensing capabilities.
Features
- TTP224 IC: This ttp224 touch sensor use the TTP224 touch sensing IC for easy touch detection & smooth control.
- Four Touch Pads: It also feature four touch pads for multiple touch input device.
- Wide Voltage Range: It can also work with a wide voltage range of 2.4V to 5.5V DC & ensure compatibility with various power source.
- Board level Status Indicator: It is also built with four board level status indicator for easy visual feedback.
- Advanced Pins Breakout: It also offer advanced pins breakout which allow for selectable output and working mode.
- Low Power Selection: It include low power selection option for energy efficient operation.
Specification
| Specification | Details |
|---|---|
| Touch Sensing IC | TTP224 |
| Number of Touch Pads | 4 |
| Board-Level Status Indicator | Yes |
| Working Voltage | 2.4V – 5.5V |
| Advanced Pins Breakout | Yes |
| Output and Working Mode Selectable | Yes |
| Low Power Selection | Yes |
| PCB Board Size | 35mm x 29mm |
| Touch Activation | Capacitive touch sensing |
| Interface | Compatible with microcontrollers like Arduino |
| Sensitivity | Can detect touch through thin layers of non-conductive materials |
| Customization | Sense pads can be extended with wires or conductive materials |
| SKU | RW-43 |
RW-43
