Overview of this TX868-JKD-20 Antenna

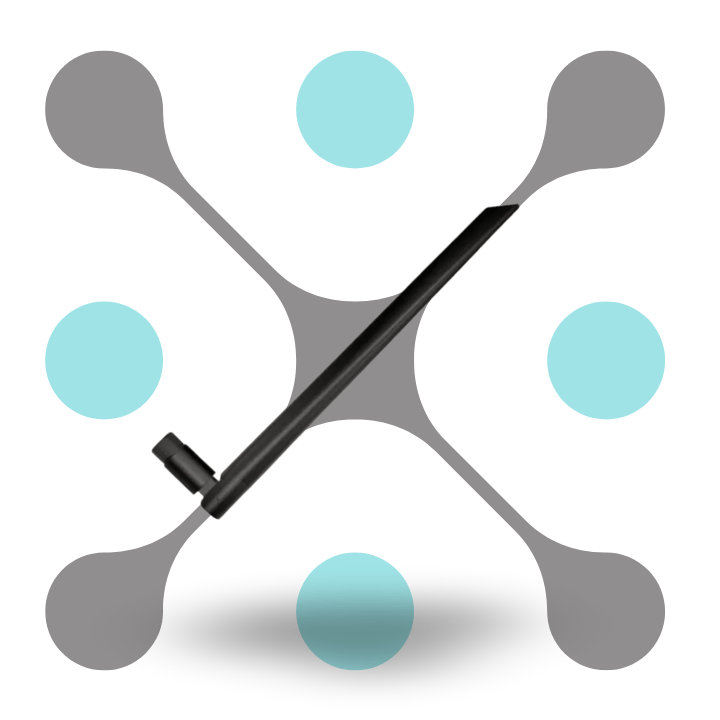

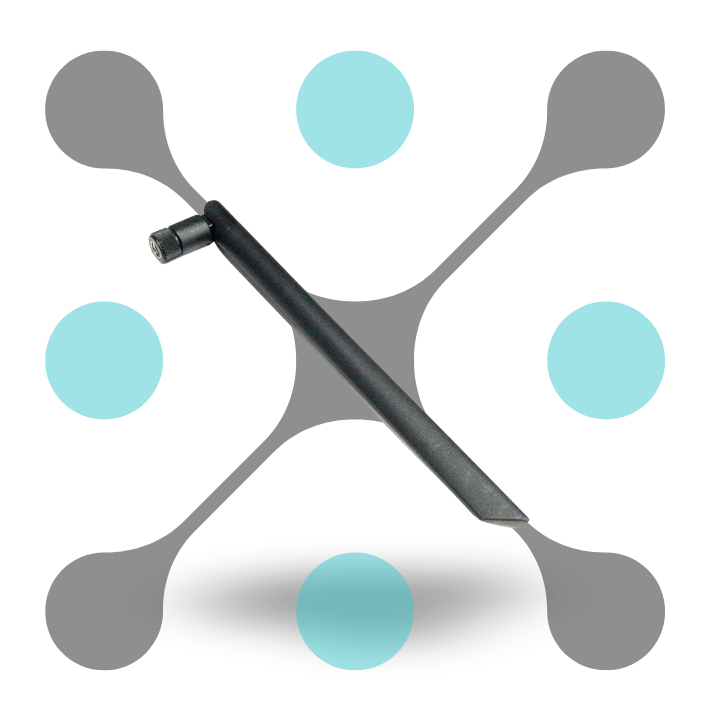

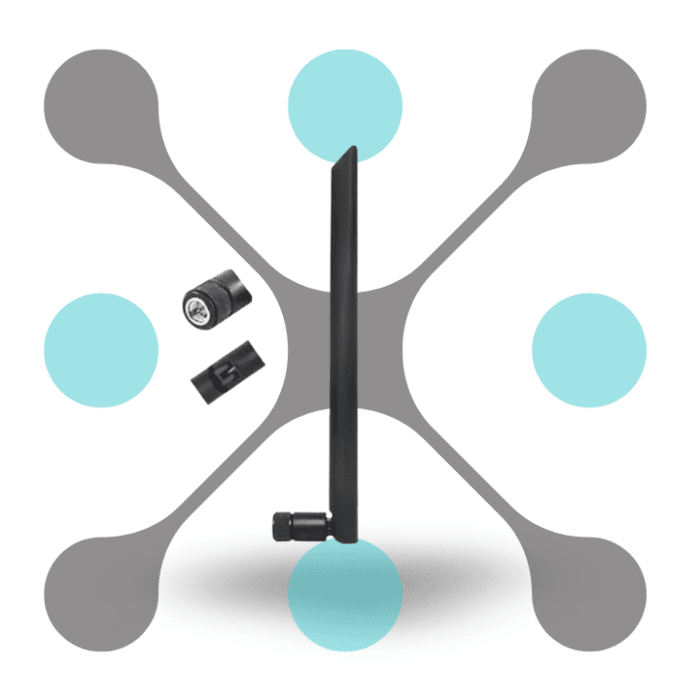

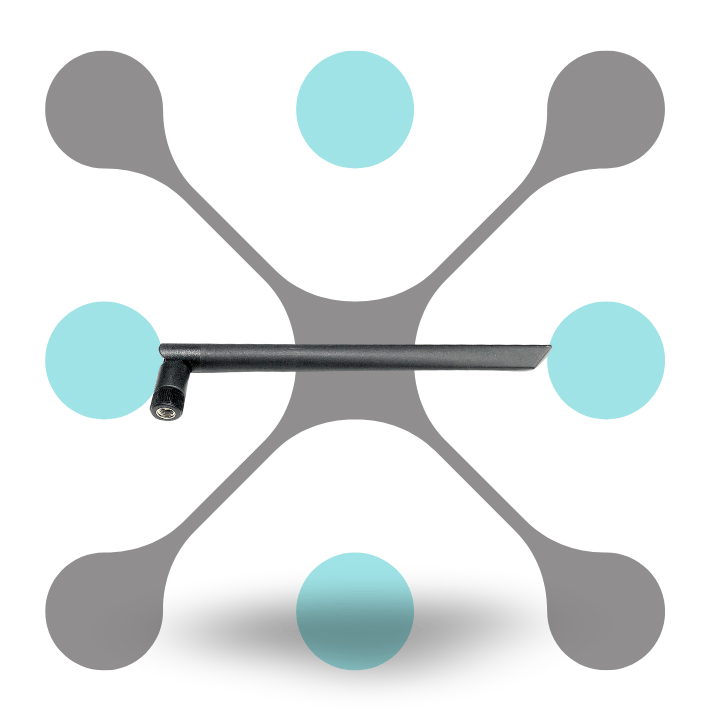

Introducing the Roboway TX868-JKD-20 antenna, designed for reliable and efficient communication. This TX868-JKD-20 antenna offers exceptional performance in wireless applications. It provides stable signal transmission and robust data handling capabilities. Ideal for various RF communication projects, this Antenna ensures seamless integration and high reliability.
Features
- 868MHz Frequency: Operates at 868MHz, suitable for various wireless communication applications. Ensures reliable signal transmission over long distances.
- Low Power Consumption: Designed to consume minimal power during operation. Ideal for battery-powered devices and energy-efficient projects.
- High Sensitivity: Offers high sensitivity for better reception and communication range. Enhances performance in challenging environments with weak signals.
- Compact Size: Features a compact form factor for easy integration into small devices. Saves space in electronic designs and applications.
- Versatile Applications: Suitable for use in remote control systems, wireless sensors, and other RF projects. Provides flexibility for various communication needs.
Specification
| Specification | Details |
|---|---|
| Frequency Range | 868 MHz |
| Modulation Type | ASK (Amplitude Shift Keying) |
| Data Rate | 2 kbps |
| Transmission Power | 10 mW |
| Receiver Sensitivity | -106 dBm |
| Supply Voltage | 1.8V to 3.6V |
| Operating Current | 2.5 mA (typical) |
| Standby Current | 0.1 µA |
| Operating Temperature Range | -20°C to +70°C |
| Package Type | SOP-8 |
| Dimensions | 5.0mm x 6.0mm x 1.5mm |
| Interface | SPI (Serial Peripheral Interface) |
| Integrated Features | Crystal oscillator and baseband processing |
| Power Consumption | Low power consumption |
| SKU | RW-1277 |
